OMICRON 253
Off-service diagnostic methods
8. In the Hardware configuration area, set the hardware configuration and check whether Primary
Test Manager recognized all connected CB TN3 modules.

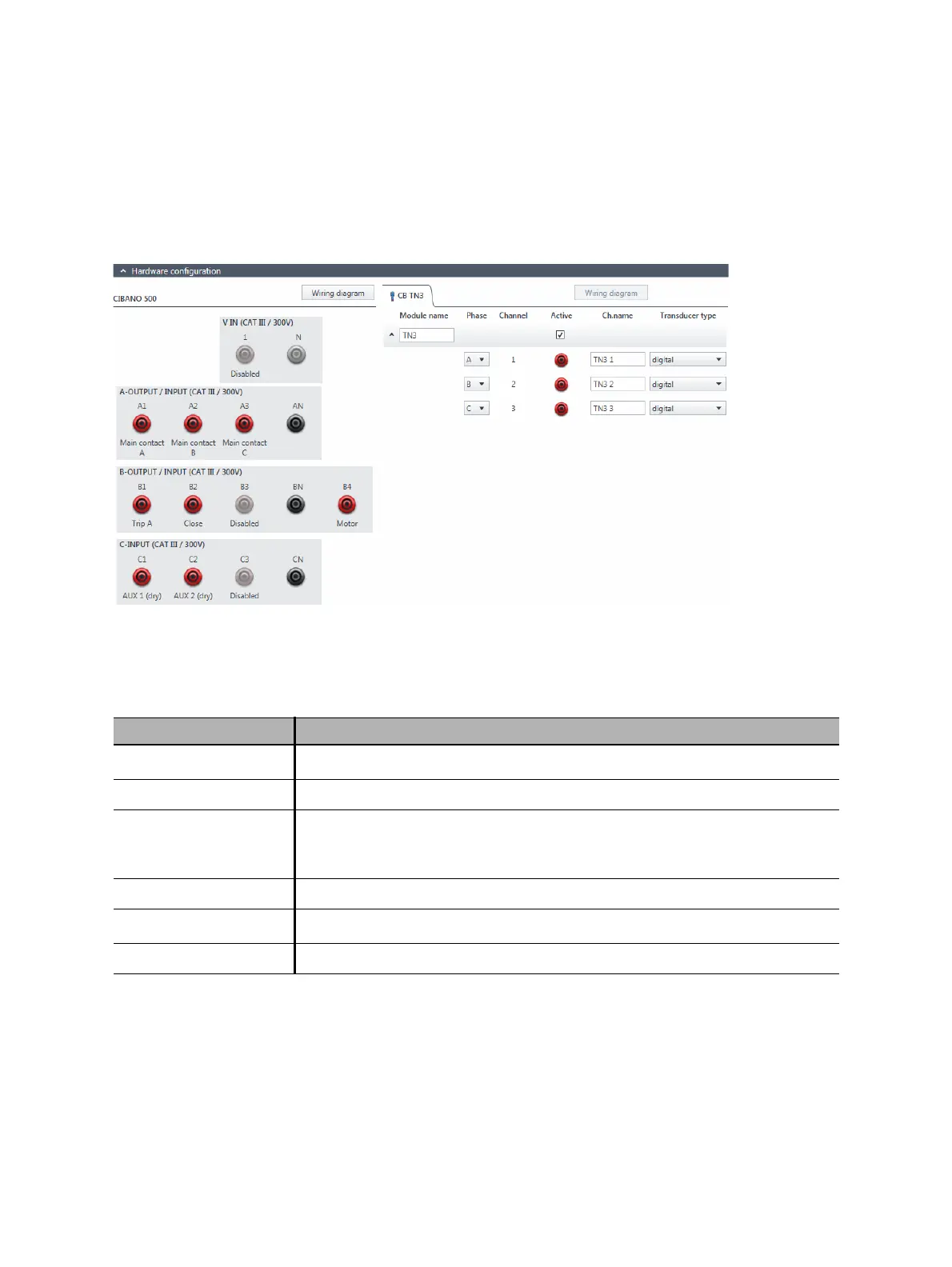

The following figure shows the hardware configuration of CIBANO 500 with the Auxiliary module with
one CB TN3 module connected. For the hardware configuration options of CIBANO 500, see
Table 17-14: "Hardware configuration options of CIBANO 500" on page 139.
Figure 17-52: Example of the hardware configuration of the Timing test for measuring the main contact
travel during operation
Table 17-86: Hardware configuration options of the CB TN3 module
CB TN3 Option
Module name
1
1. Permanently stored in the CB TN3 memory. You can, for example, rename the CB TN3 modules depending on the connection
point.
Editable name of the CB TN3 module
Phase Phase to which the CB TN3 module is connected
Channel
1
Editable name of the CB TN3 channel.
Click the socket symbol to activate or deactivate the channel depending on
the connections made.
Active Click the socket symbol to activate or deactivate the channel.
Ch.name
1
Editable name of the CB TN3 channel
Transducer type Type of the connected transducer: digital or analog
