Output Window SECTION 6 Projects
105

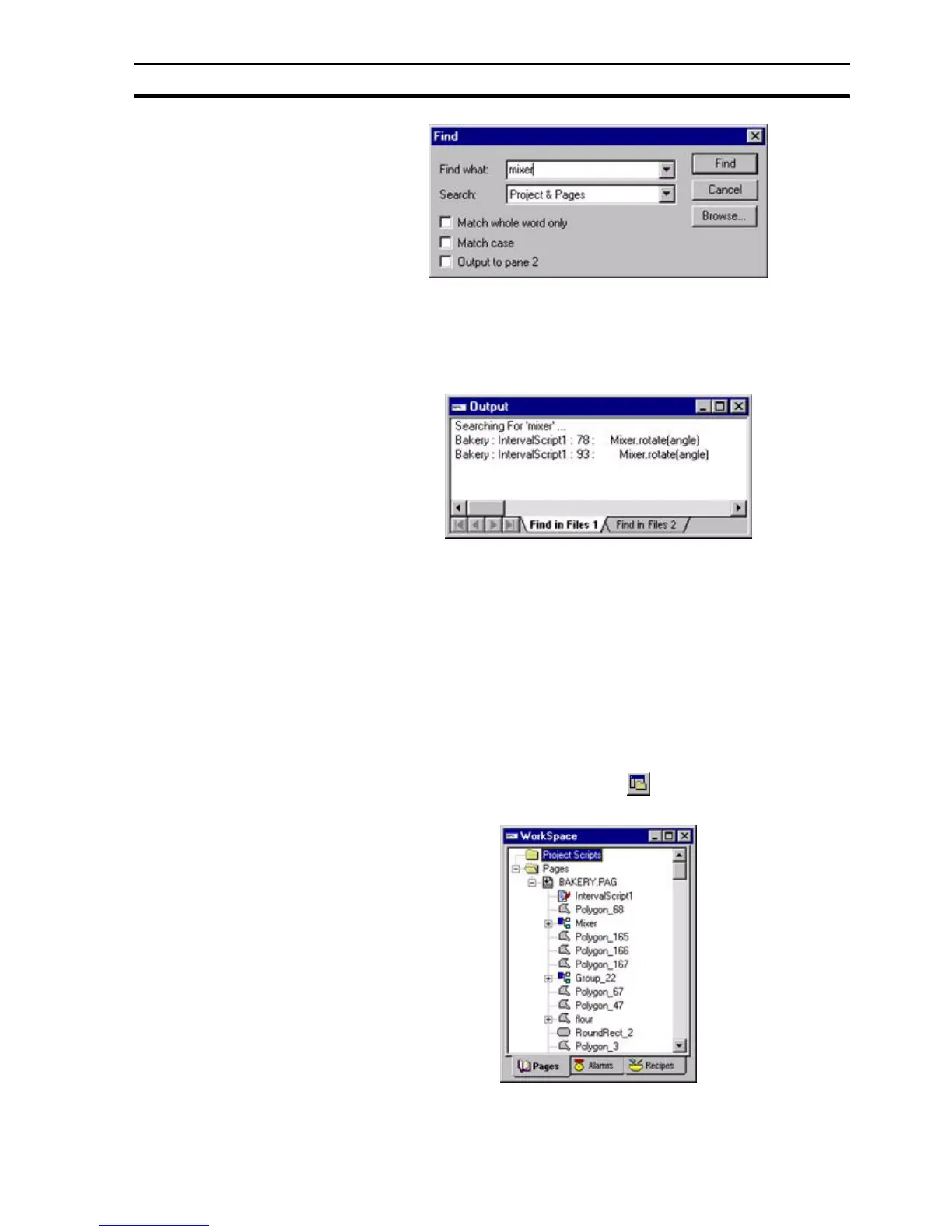

All occurrences of the text in the selected areas is shown in the Output
window
6-19 Output Window
The output window shows output from the Build and Find functions.
The window can be docked to any side of the screen or floated above other
windows. To enforce floating, press <Ctrl> while moving the window or right-
click the window title and uncheck Allow Docking.
Build results are shown automatically during building and remain on screen if
there are errors or warnings.
Find results show the location including page name, alarm name, recipe, script
name, object, line number and animation as relevant, followed by the
occurrence itself. Double clicking on any line opens the appropriate editor.
The output can be printed by selecting Print from the right mouse context
menu.
6-20 Navigating Projects with the Workspace
The Workspace is activated by clicking the button. The Workspace dialog
box opens:
