Quick creation of many points SECTION 3 Points
44
To select a range click on a point to mark the start of the range and click again
with the <SHIFT> key down to mark the end.
To individually select more than one point click while holding the <CTRL> key
down.
3-7 Quick creation of many points
CX-Supervisor supports up to 8,000 points, which could take much time to
create. Within the Point Editor you can use Copy/Paste which helpfully
increments the point name automatically (BoilerTemp1 becomes
BoilerTemp2, BoilerTemp3 etc) but you still have to edit each point to
configure the PLC address and possibly other information. Using the Copy
and Paste functions, Point data can quickly be edited and created for example
in grid form using Excel. This can prove extremely quick when the design uses
contiguous addresses.
1, 2, 3… 1. Open the Point Editor.
2. Select the points to edit, or a single point to act as a template and Copy
to the Windows Clipboard
3. Start Excel.

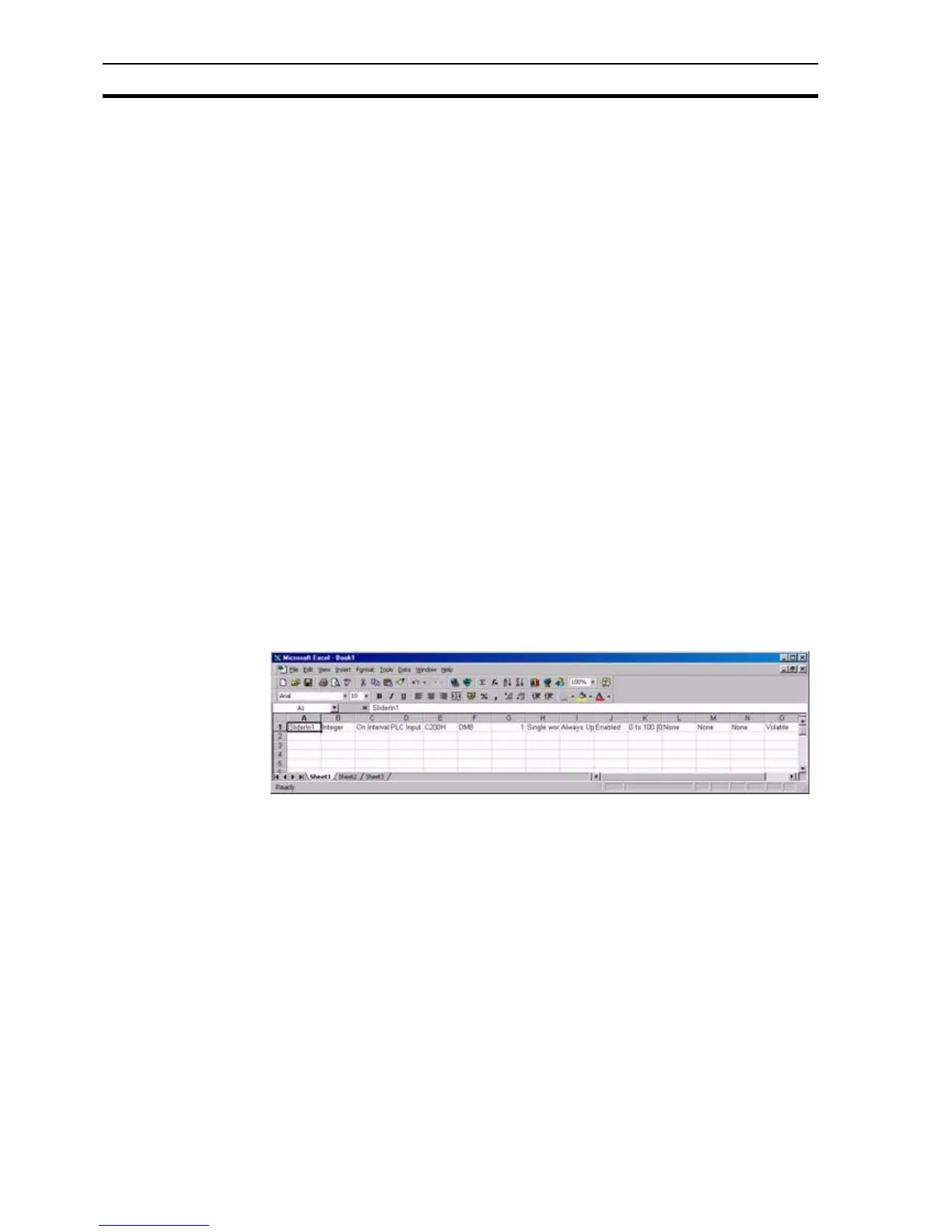

4. Position the cursor in column A and paste the CX-Supervisor Points into
Excel. The worksheet should resemble the following:
Each row is a single point, and each column is a setting of that point.
5. Edit the point details as required.
Excel automatically increments any data ending in a number. This can be
very useful for Names and PLC Addresses (columns A and F) but take
care with other columns. If other columns are wrongly incremented, like
PLC Name, Array size and Data Range (columns E, G and K) these can
quickly be copied by selecting the correct value e.g. G1 then using the
square box to highlight the column of data to fill. To see the fill options hold
down the right mouse button before draging the square box. Repeat for
each column.
6. When editing is completed, select the row(s) to required and select Copy
Note: It is possible to delete more than one point by either selecting points within a
range or by selecting individually several points.
Note: If a point is deleted then any animations or scripts that were using the point
become invalid. Run the Analyse Application tool to check for References to
non-existent points.
Note: Some settings may be hidden on the right. Use the scrollbar to view.
Note: To quickly create new points with the same settings, select the whole row
by clicking the row number on the left. A range can now be drawn to be
filled by dragging the black square box on the bottom left of the range
selection:
