Creating and Editing Control Objects SECTION 4 Objects
62

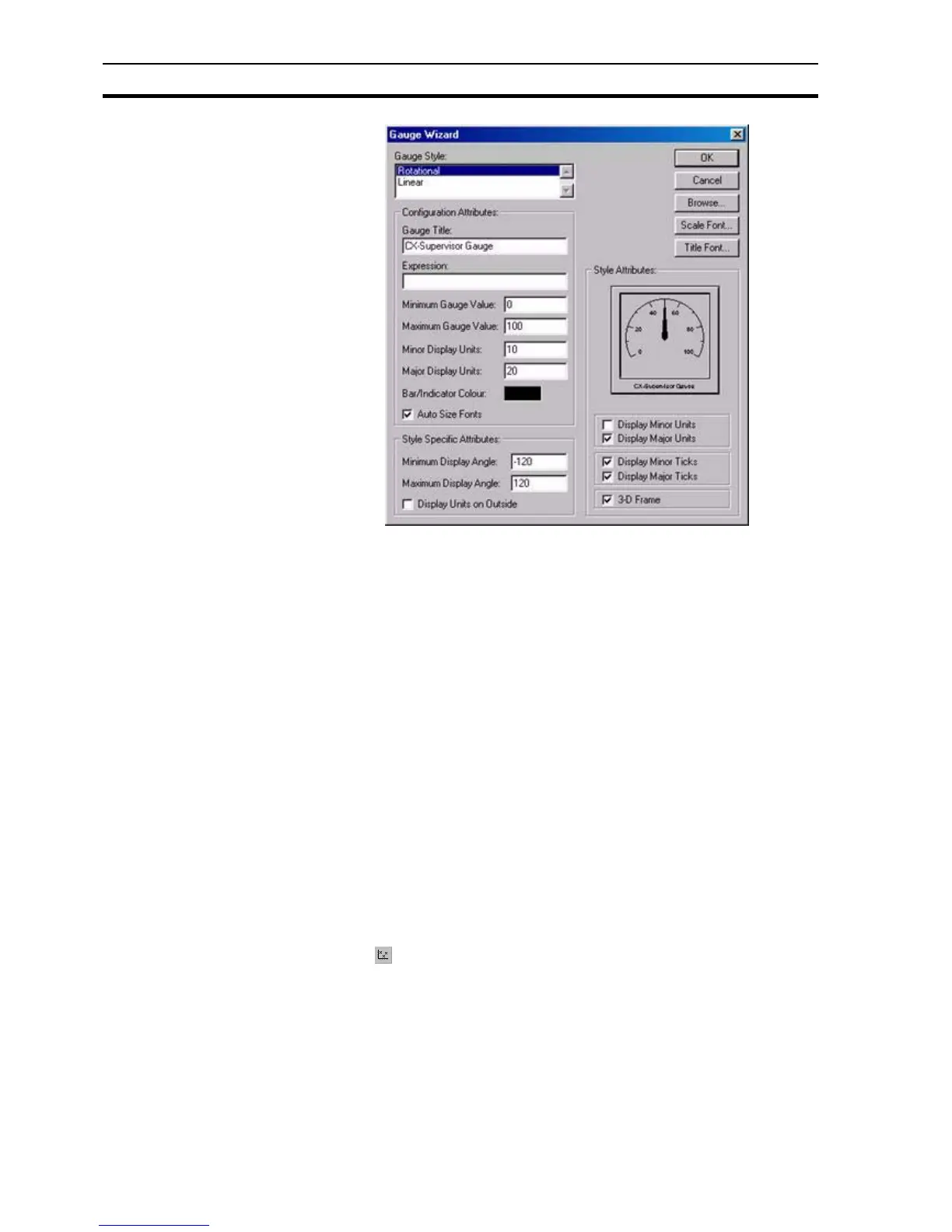

The Wizard allows entry in the Gauge Style:, Configuration Attributes:, Style
Attributes: and Style Specific Attributes: fields.
To select a style, click on an entry in the Gauge Style field. To select an
Expression Attribute, click the Browse button and select a point from the
displayed list. The Select Required Item dialog box opens; click the OK button
to accept the point or click the Cancel button to leave the point unselected.
Clicking the Add Point button allows a new point to be created prior to
association with the Wizard. An existing point can also be associated with the
Wizard by dragging a point directly from the Point Editor. Refer to chapter 3,
Points regarding adding a new point and dragging from the Point Editor.
To enter gauge values or display units, type over the existing field entries.
Enter display angles by typing over the existing field entries.
Check the boxes to choose the required style attributes. The Gauge can be
displayed in linear or rotary format, either with or without ticks.
The text font used for the gauge title can be changed via the Title Font button.
The text font used for the gauge scale can be changed via the Scale Font
button. The font size used by the gauge can be automatically calculated for
the user by selecting the Auto Font Size option.
Exit the Wizard by clicking the OK button to accept the new gauge attributes
or click the Cancel button to leave the gauge unchanged.
4-4-7 Scatter Graph
Click the button, then click or click and drag on the page to insert a graph.
To edit the graph, double click on it. The Scatter Graph Wizard dialog box
opens:
