Creating a Point SECTION 3 Points
39

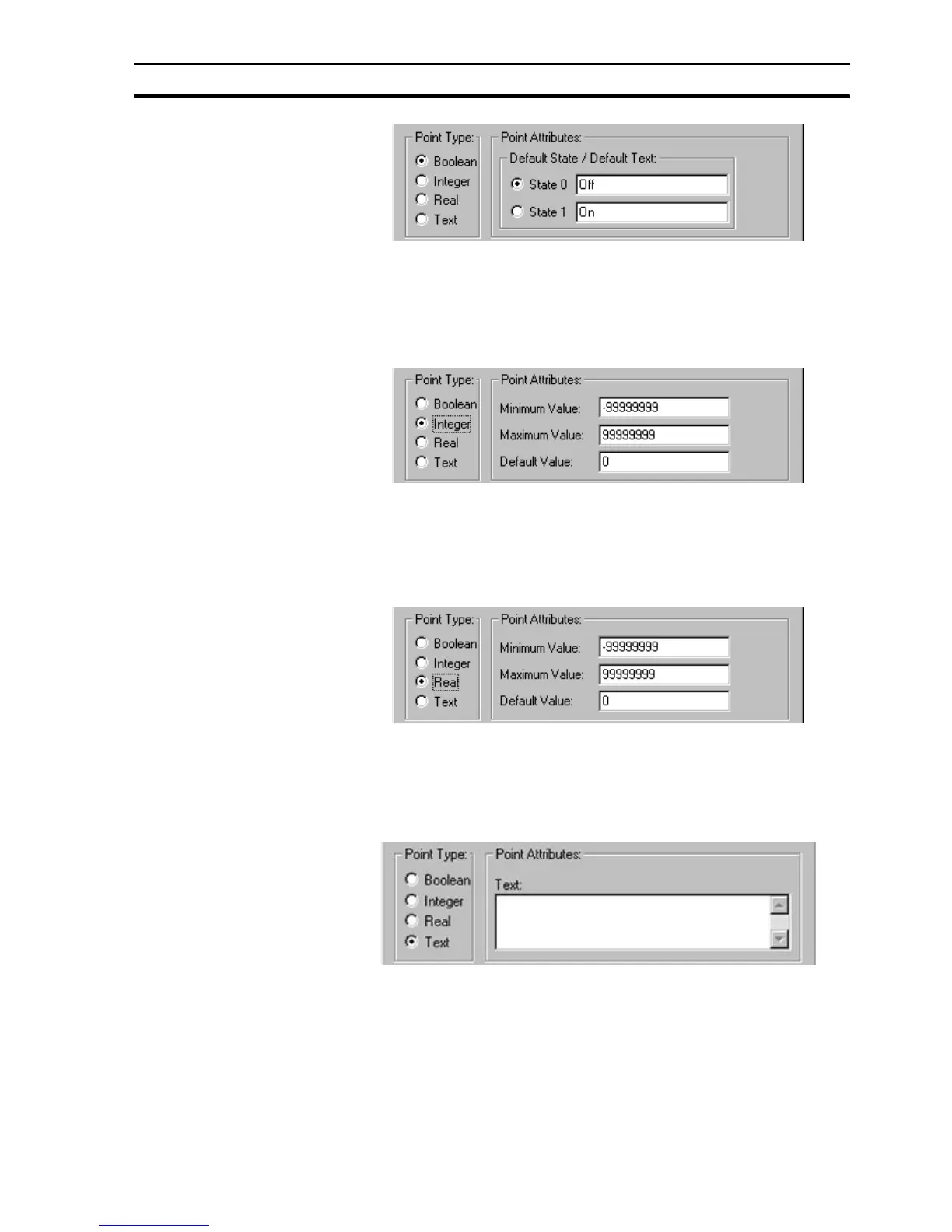

The default state of the point is defined by selecting either the State 0: or State
1: setting. Associative text (such as 'OFF' or 'FALSE' for state 0) can be
applied in the related Default Text: fields. The default text is associated with
Toggle buttons and object animations such as Display Value and Edit Point
Value when they are configured to use the point.
For an Integer point, the following attributes are displayed:
The minimum threshold for the point is inserted into the Minimum Value: field.
The maximum threshold for the point is inserted into the Maximum Value: field.
The default value is inserted in the Default Value: field.
Note: Integer points are limited to -2,147,483,648 to 2147483647
For a Real point, the following attributes are displayed:
The minimum threshold for the point is inserted into the Minimum Value: field.
The maximum threshold for the point is inserted into the Maximum Value: field.
The default value is inserted in the Default Value: field.
Note: Real points are limited to 1.7E +/- 308 to a precision of 15 digits.
For a Text point, the following attribute opens:
Text is entered in the Text: field.
Note: Memory Text points can have 32768 characters but PLC I/O Text Points
are limited to 1024 characters.
3-4-4 I/O Type
The I/O type states the scope of the point, i.e. whether it is purely an internal
variable or whether it communicates with a PLC.
