Runtime Actions SECTION 9 Animation
137
To define the animation, an expression consisting of a number of operators
and operands (which may be based on the status of a point) must be entered
in the Expression: field.

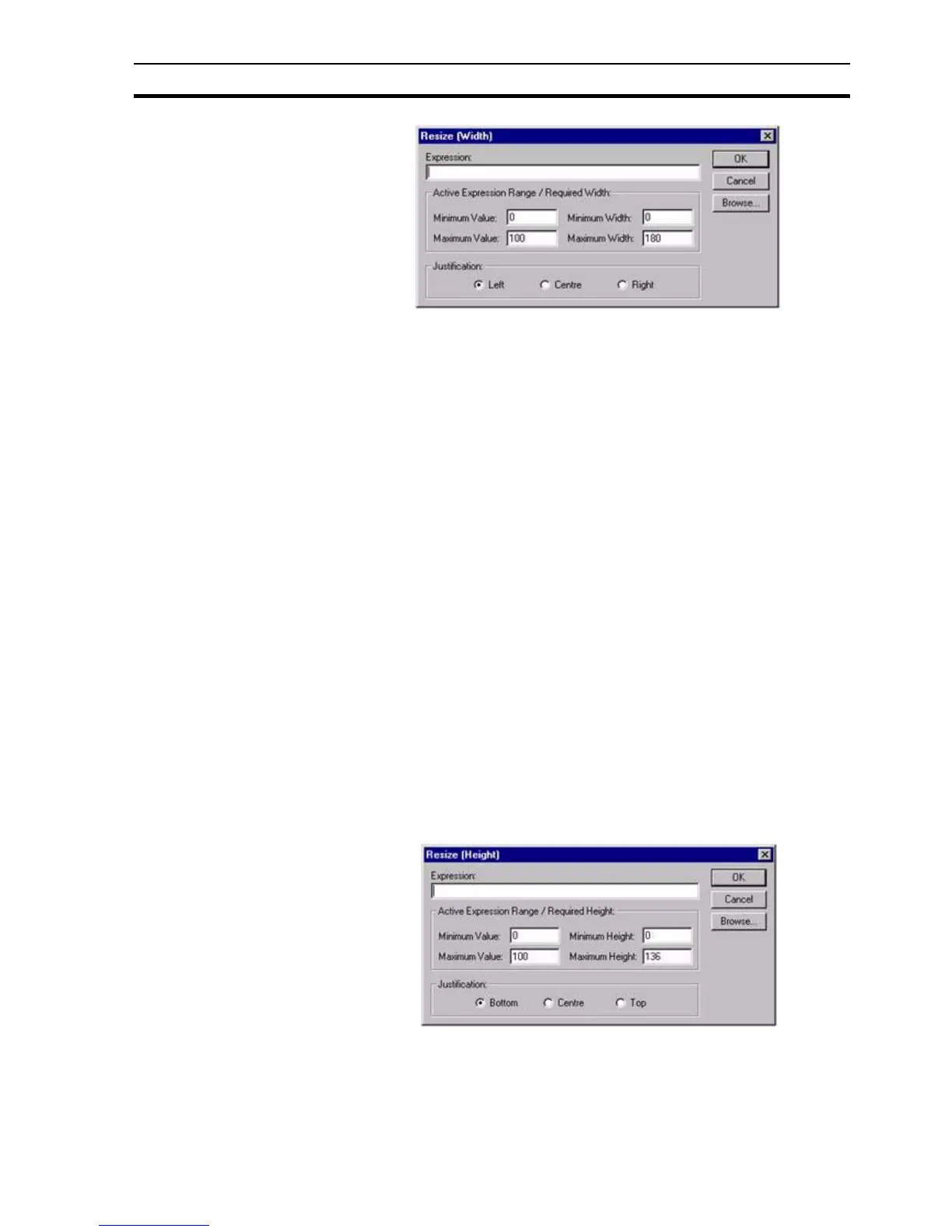

The boundaries in which the object moves are inserted into the Active
Expression Range/Required Width: fields. The Maximum Width specifies the
required width in pixels of the object when the result of the expression reaches
the Maximum Value. The Minimum Width specifies the required width in pixels
of the object when the result of the expression reaches the Minimum Value. A
value within the maximum and minimum values results in a proportionate
width between the minimum and maximum widths. The resizing also requires
an anchor and direction in which to stretch or shrink. This can be specified as
the left of the object, right of the object or centrally to the object, by selecting
the appropriate Justification: setting.
To abort the Resize Width definition, click the Cancel button. By clicking the
Browse button, a point may be directly specified, as described in chapter 9,
Runtime Actions. When completed, click the OK button. If invalid data has
been inserted into any field, a descriptive error message opens.
9-3-9 Resize Height
Objects can be animated by shrinking or expanding vertically. This can be
specified via the Resize (Height) dialog box.
To access the Resize (Height) dialog box to add an action, select Resize
(Height) from the animation list and click the Add Action button. To access the
Resize (Height) dialog box to modify an action, select Resize (Height) from the
animation list and click the Modify Action button. Refer to chapter 9, Objects,
for a list of the objects to which this action is applicable.
On selection of the Resize (Height) action, the Resize (Height) dialog box
opens:
To define the animation, an expression consisting of a number of operators
and operands (which may be based on the status of a point) must be entered
in the Expression: field.
