Creating a New Alarm SECTION 8 Alarms
119
The Play Sound setting determines whether an audible warning is sounded
when the alarm occurs. The default value is False. Note that a waveform file
must also have been selected for the warning sound to be heard. The
waveform is selected by using the Alarm Sound button on the Alarm Settings
dialog box.
An alarm description, detailing the possibilities of how the current alarm would
be raised, is inserted in the Description: field. To move to a new line, press
<Ctrl>+<Return>. Any characters are valid, and up to 255 characters may be
entered in the text field. This field is visible from the Alarm Editor dialog box.
Activating the Print Alarm Messages setting causes alarms of this type to be
printed automatically when they occur.
8-4-2 Alarm Type

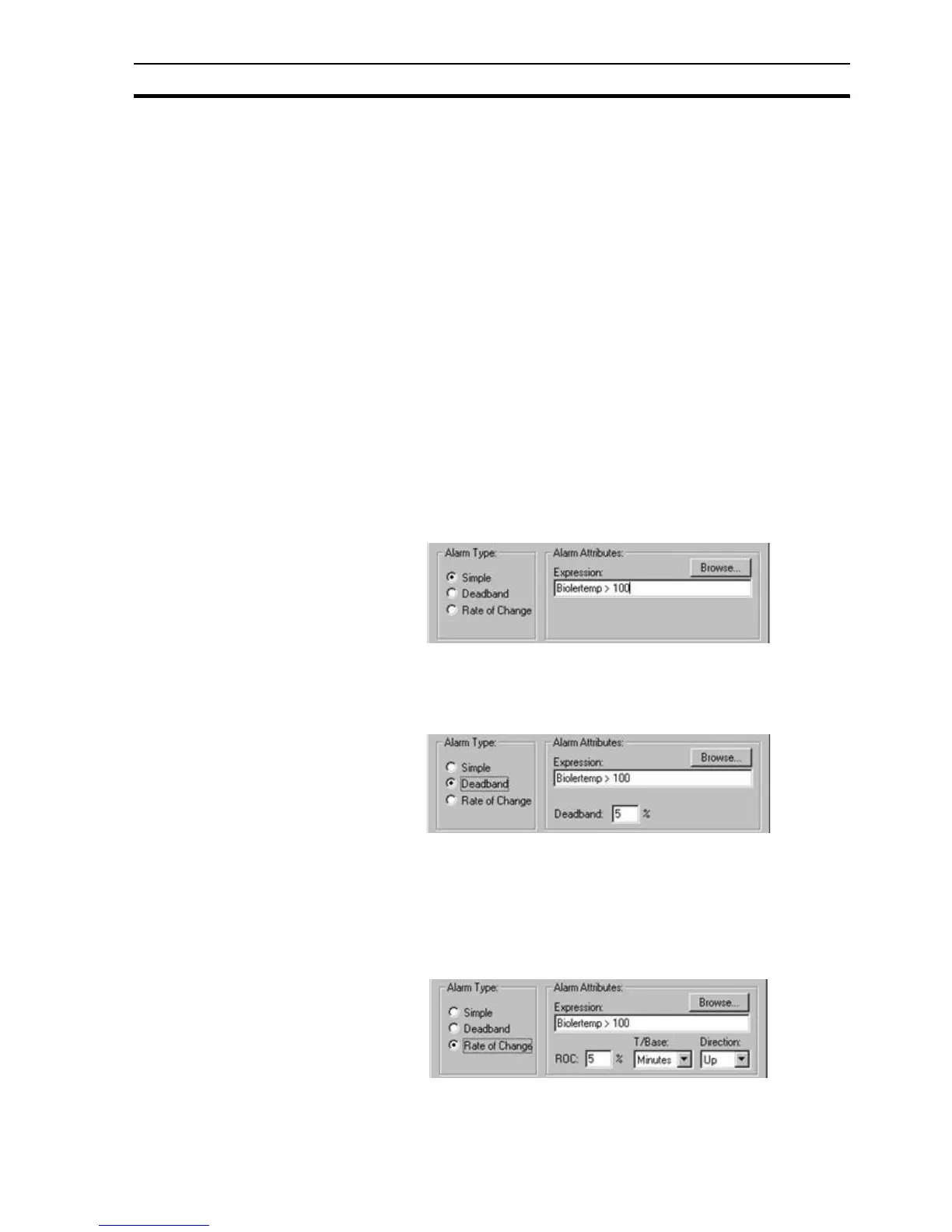

The alarm type can be Simple, Deadband or Rate of Change. Select the
desired type by clicking on the Simple, Deadband or Rate of Change settings.
This field is visible from the Alarm Editor dialog box.
8-4-2-1 Alarm Attributes
The attributes for an alarm are defined according to its type, as this defines
when an alarm reacts. Since Simple is the default type, the Simple alarm
attributes are initially visible.
For a Simple alarm, the following attributes are displayed:
An expression based on a point is entered in the Expression: field. The alarm
is raised once the point meets the expression. The alarm is cleared when the
point value subsequently fails to meet the expression.
For a Deadband alarm, the following attributes are displayed:
An expression based on a point is entered in the Expression: field. The alarm
is raised once the point meets the expression. The alarm is cleared when the
point value falls outside the expression value plus the specified deadband
percentage. For the example above an alarm is raised when the boiler's
temperature exceeds 100 and is cleared when the boiler temperature falls
below 95 (100 minus 5%).
For a Rate of Change alarm, the following attributes are displayed:
