Maintenance Information Window Section 5-4

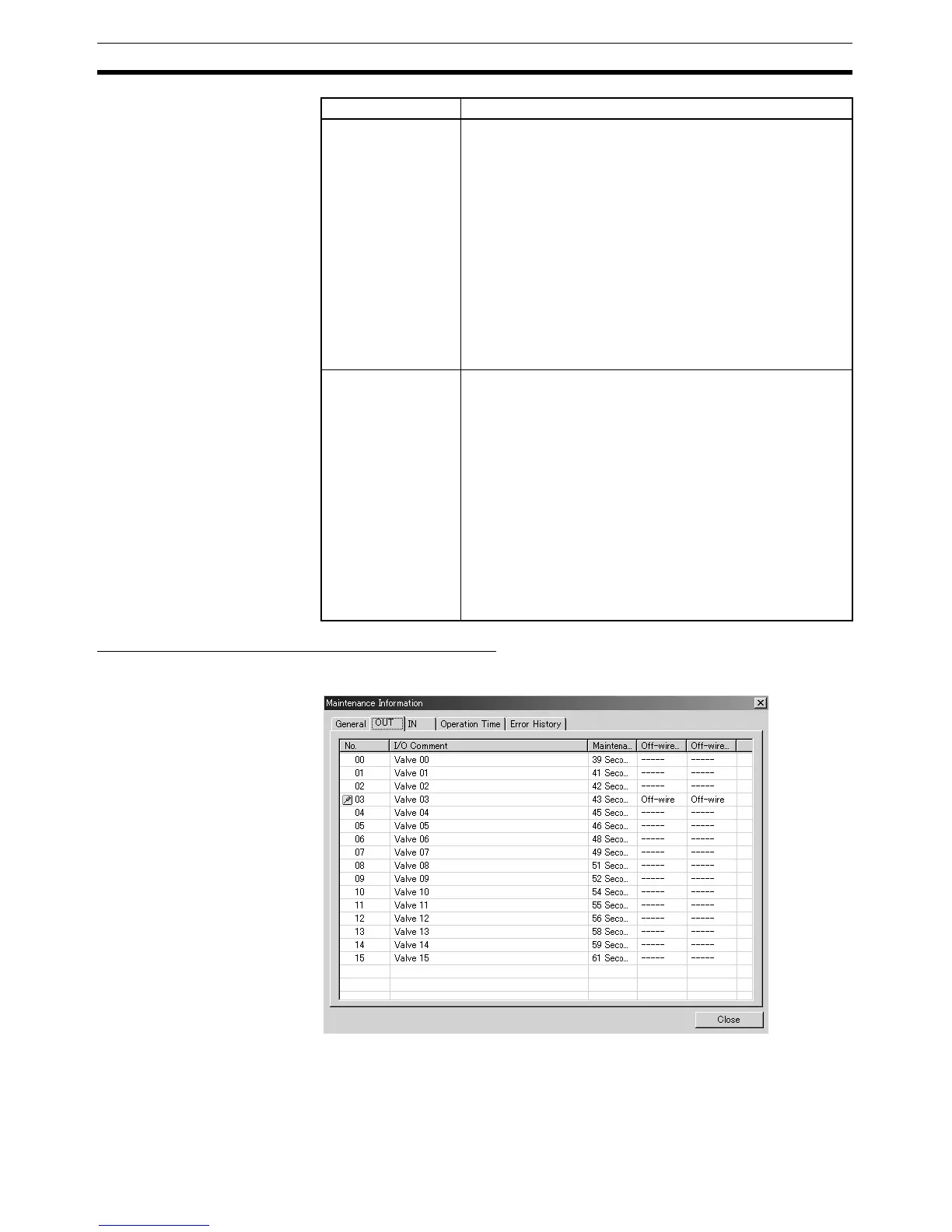

Tabs in the Maintenance Information WIndow
OUT Window Terminals are listed in numerical order.
I/O Power Supply
Error (Input)
ON when the input power supply is OFF.
Basic models*: DRT2-ID08(-1), DRT2-MD16(-1), and DRT2-
ID16(-1)
Relay output model*: DRT2-ROS16
Sensor Connector models: DRT2-MD16S(-1)
3-tier I/O Terminal Block models: DRT2-ID16TA(-1) and
DRT2-MD16TA(-1)
MIL Connector models: DRT2-ID16ML(X)(-1), DRT2-
ID32ML(-1) and DRT2-MD32ML(-1), DRT2-ID32B(-1), DRT2-
MD32B(-1), DRT2-ID32BV(-1), and DRT2-MD32BV(-1)
Screw-less Clamp models: DRT2-ID
@@SL(-1), DRT2-
ID
@@SLH(-1), DRT2-MD32SL(-1), and DRT2-MD32SLH(-1)
*This function can be used for outputs in these models only
when an Expansion Unit is mounted and the Slave operates
as an I/O Unit.
I/O Power Supply
Error (Output)
ON when the output power supply is OFF.
Basic models*: DTR2-OD08(-1), DRT2-MD16(-1), and DRT2-
OD16(-1)
Relay output model*: DRT2-ROS16
Sensor Connector models: DRT2-MD16S(-1)
3-tier I/O Terminal Block models: DRT2-ID16TA(-1) and
DRT2-MD16TA(-1)
MIL Connector models: DTR2-OD16ML(X)(-1), DRT2-
OD32ML(-1), DRT2-MD32ML(-1), DRT2-OD32B(-1), DRT2-
MDD32B(-1) DRT2-OD32BV(-1), and DRT2-MD32BV(-1)
Screw-less Clamp models: DRT2-OD
@@SL(-1), DRT2-
OD
@@SLH(-1), DRT2-MD32SL(-1), and DRT2-MD32SLH(-1)
*This function can be used for outputs in these models only
when an Expansion Unit is mounted and the Slave operates
as an I/O Unit.
