Maintenance Information Window Section 5-4
Note 1. The Sensor Disconnection Detection function is supported by the following
models:
DRT2-ID@@SLH(-1) and DRT2-MD32SLH(-1) Screw-less Clamp Termi-
nals
2. The Sensor Power Supply Short-circuit function is supported by the follow-
ing models:
DRT2-ID@@SLH(-1) and DRT2-MD32SLH(-1) Screw-less Clamp Termi-
nals and DRT2-ID16S(-1) and DRT2-MD16S(-1) Sensor Connector Termi-
nals

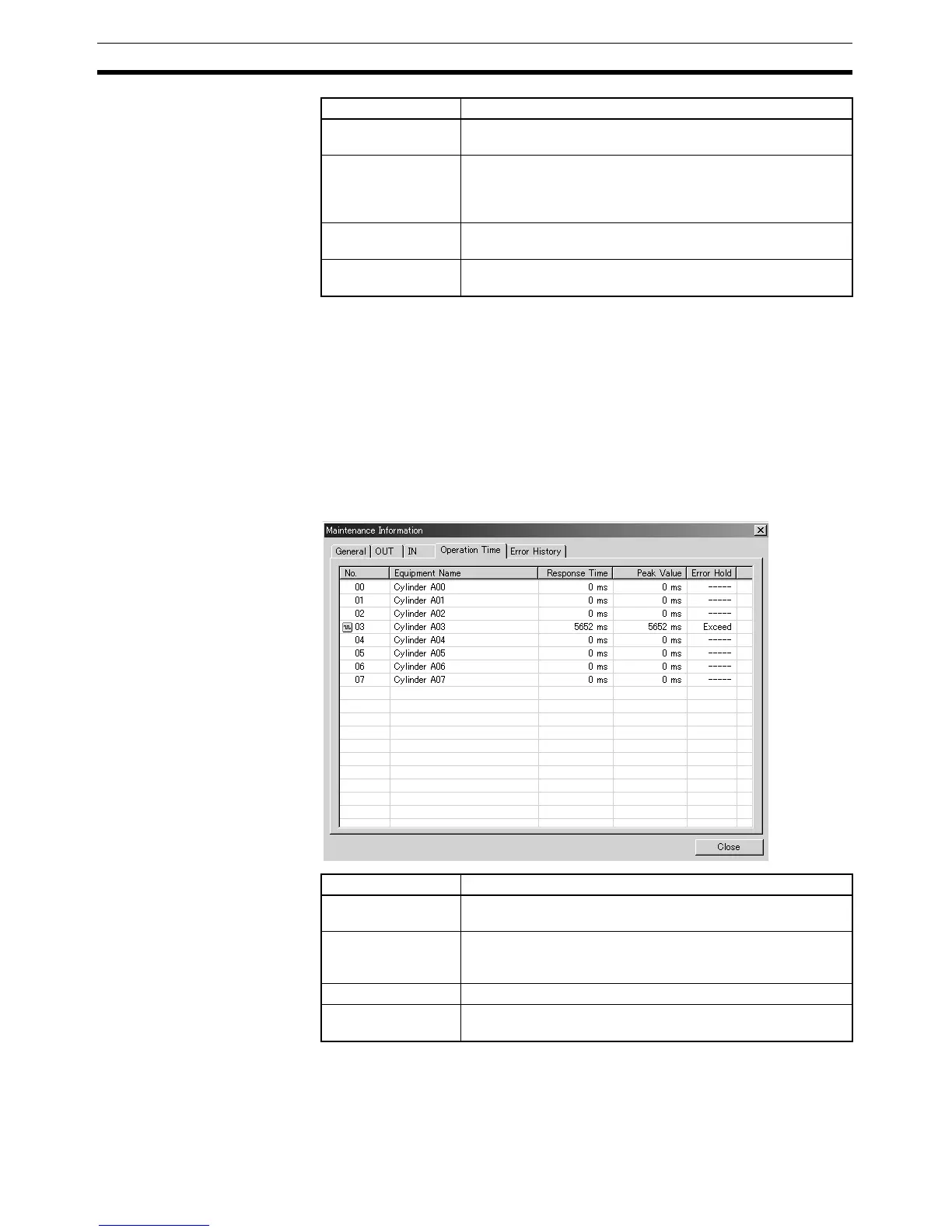

Operation Time Window Terminals are listed in numerical order.
Note 1. The Operation Time Monitor function is supported by the following models:
Basic models: DRT2-MD16(-1), DRT2-ID16(-1), and DRT2-OD16(-1)
Relay output model: DRT2-ROS16
(Supported only when an Expansion Unit is mounted and the Slave oper-
Power Supply Short-
circuit
When sensor power short-circuit detection is ON for each
input, Shorted will be displayed.
Disconnection
Detection
If sensor disconnection detection (off-wire detection) is
enabled for each input, either Connected or Disconnected will
be displayed.
If disconnection detection is disabled, --- will be displayed.
Power Supply Short-
circuit History
Records information when a short-circuit occurred.
Disconnection
Detection History
Records information when a disconnection occurred even
once.
Item Description
Item Description
Monitored Device
Name
Displays up to 16 characters of text set as the comment for
each monitored device.
Operation Time Displays the operation time (in ms) for each device. If the
operation time exceeds the threshold, a warning icon will be
displayed on the left side of the terminal’s No. column.
Peak Operation Time Displays the maximum operation time that has occurred.
Error History If the operation time exceeded the threshold value even once,
Over-threshold will be displayed.
