Connector Terminals with Transistors Section 5-6
Mounting
Perpendicular to a
Panel Using a
Mounting Bracket
A Remote I/O Terminal with a Connector can be mounted perpendicular to a
panel by using the SRT2-ATT02 Mounting Bracket B (sold separately).
Mounting Method Use the following procedure to mounted the Remote I/O Terminal.
1,2,3... 1. Mount the SRT2-ATT02 Mounting Bracket B to the wall using two Phillip’s
screws as shown below. Refer to Mounting Bracket Dimensions on
page 180 for mounting dimensions.
2. Mount the Remote I/O Terminal to the Mounting Bracket B. The Mounting
Bracket B is shaped like a DIN Track. Use the same mounting procedure
as for DIN Track.

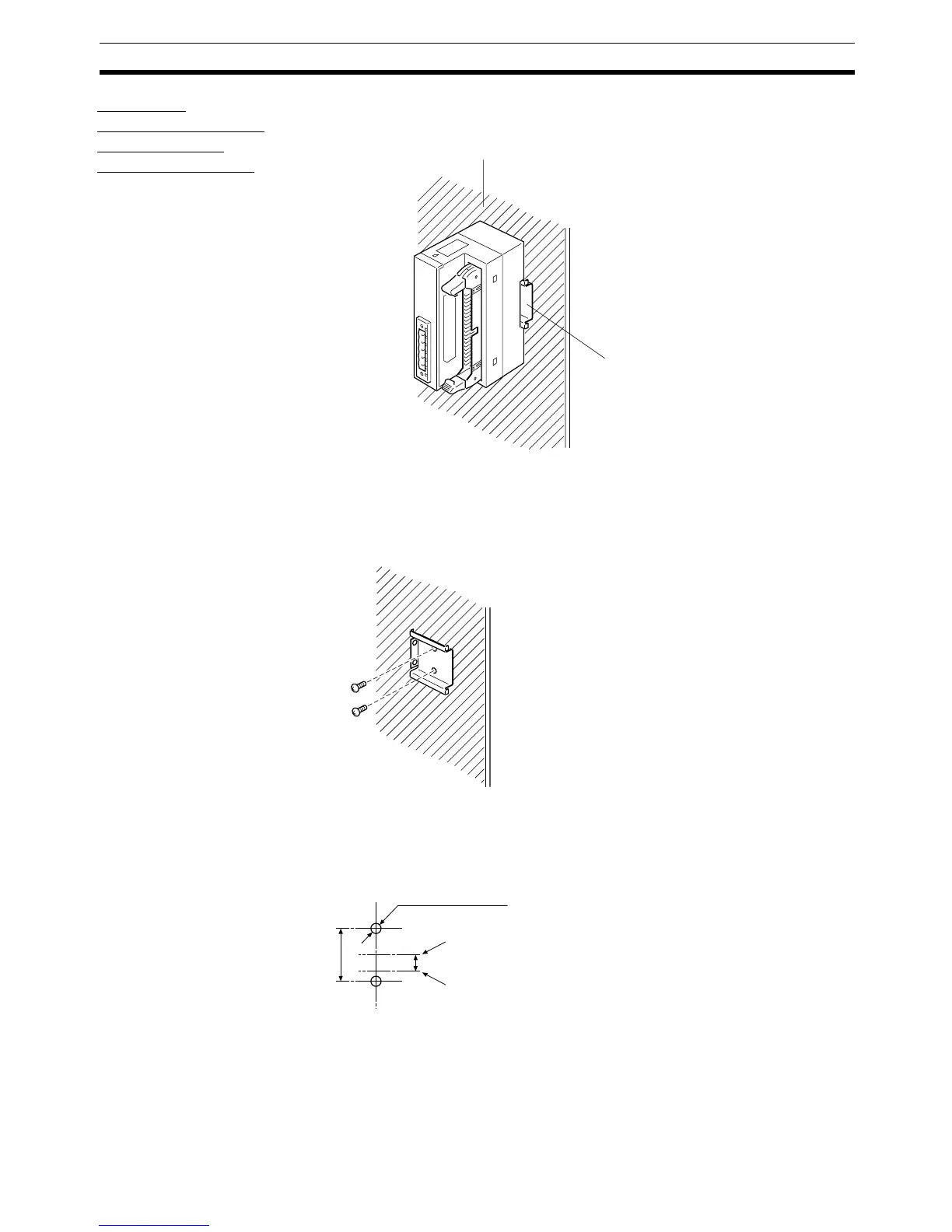

Mounting Holes and Slave Center Line
Mounted
perpendicular
to panel
Panel surface
Mounting Bracket B
Two, 3.2 dia. or M3
16±0.2
5
Center of mounting holes
Center of Slave
Unit: mm
