178
Connector Terminals with Transistors Section 5-6
Mounting Parallel to a
Panel Using a
Mounting Bracket
A Remote I/O Terminal with a Connector can be mounted parallel to a panel
by using the SRT2-ATT02 Mounting Bracket B (sold separately).
Note A multi-drop DeviceNet connector cannot be used if the Remote I/O Terminal
is mounted parallel to the panel.
Mounting Method Use the following procedure to mount the Remote I/O Terminal.

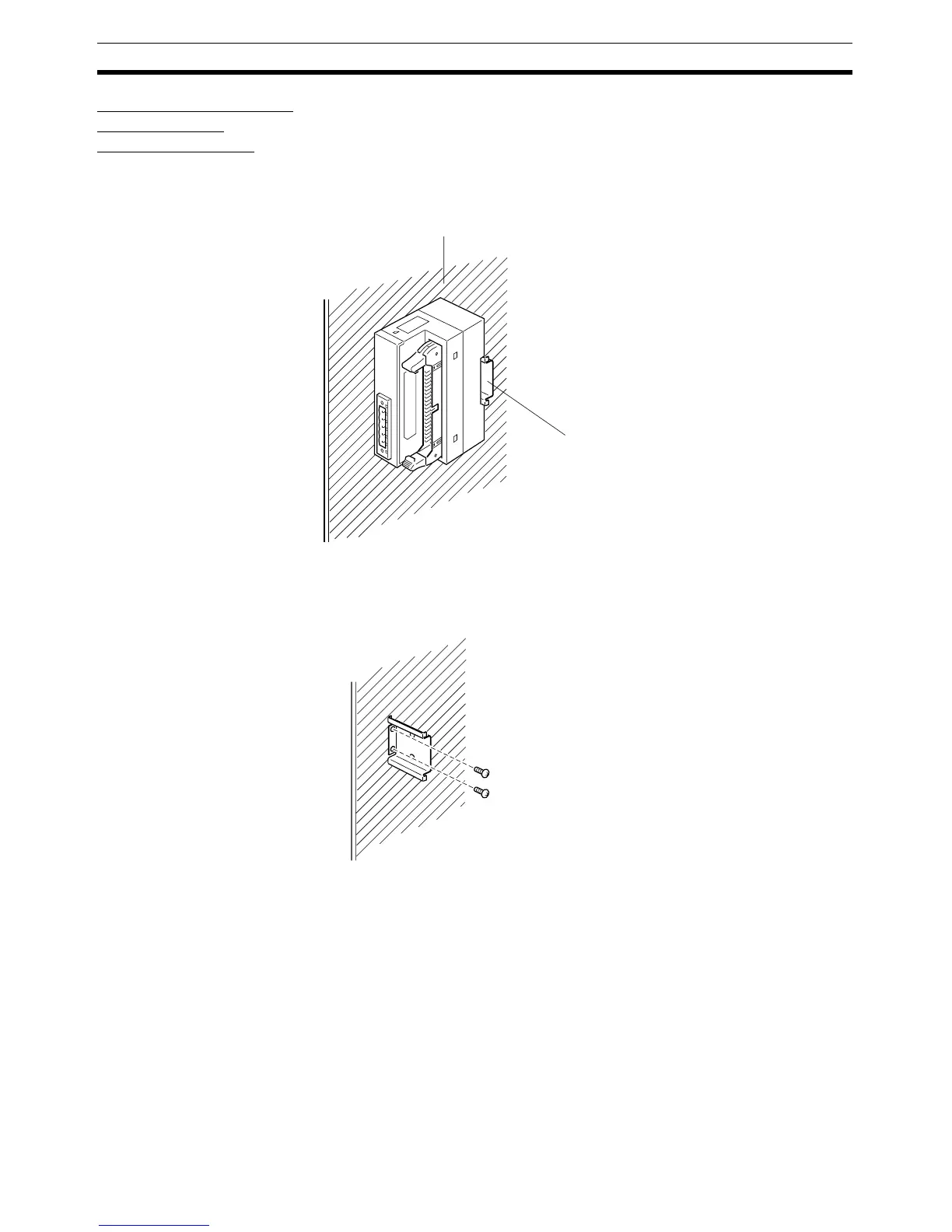

1,2,3... 1. Mount the SRT2-ATT02 Mounting Bracket B to the wall using two Phillip’s
screws as shown below.
2. Mount the Remote I/O Terminal to the Mounting Bracket B. The Mounting
Bracket B is shaped like a DIN Track. Use the same mounting procedure
as for DIN Track.
Note The multi-drop wiring connector cannot be used if the Remote I/O Terminal is
mounted parallel to the panel.
Panel surface
Mounted parallel
to a panel
Mounting Bracket B
To Next Page
