Connector Terminals with Transistors Section 5-6
Mounting Holes and Slave Center Line
Mounting Direction Unless specific restrictions are given for the Slave, it can be mounted in any
direction. Any of the following directions are okay.

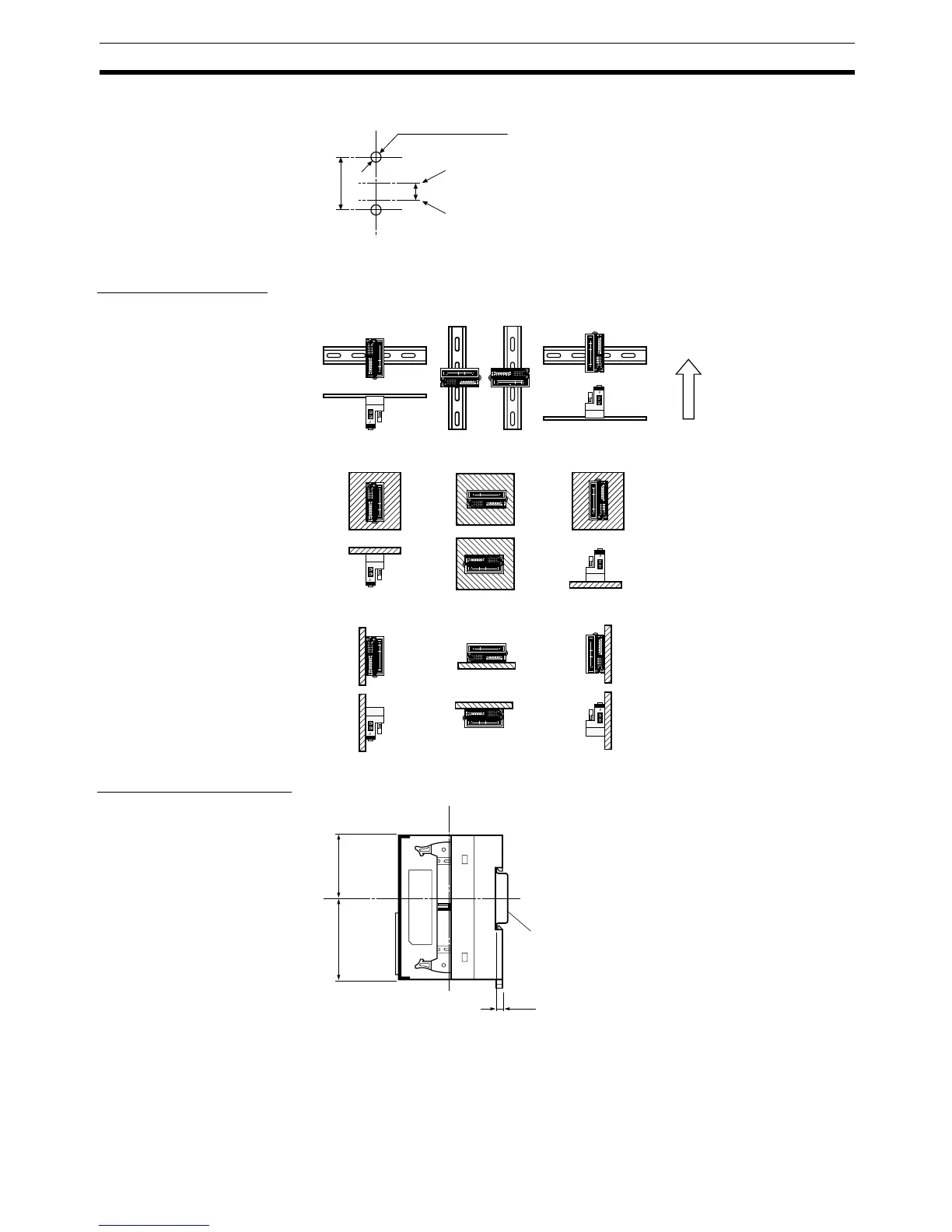

Mounting Dimensions Mounted to DIN Track
Two, 3.2 dia. or M3
16±0.2
5
Center of mounting holes
Center of Slave
Unit: mm
Vertical
4 mm
35 mm45 mm
DIN track
