Omron DRT2 SERIES DEVICENET SLAVES - OPERATION MANUAL 04-2008 User Manual

181
Connector Terminals with Transistors Section 5-6

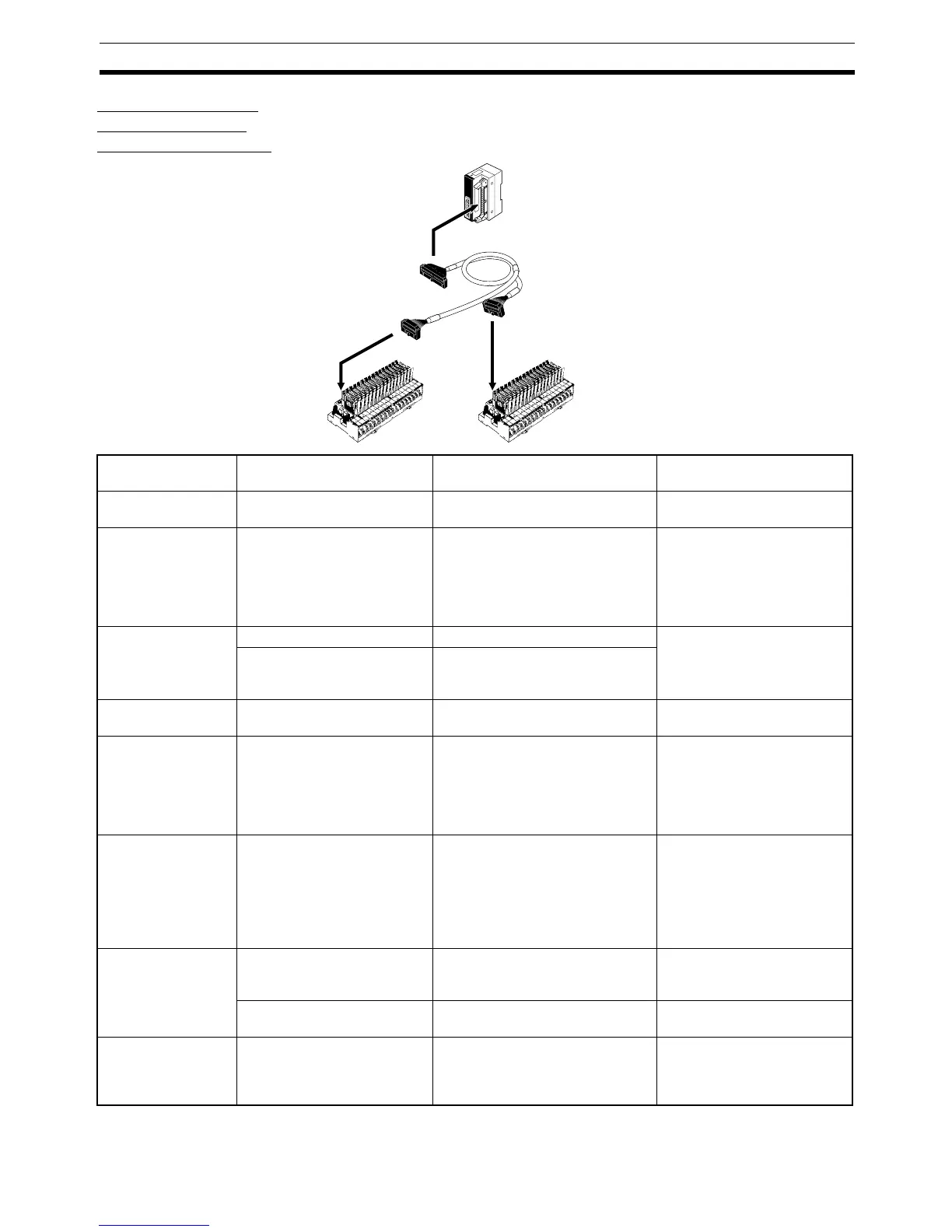

Connecting to I/O
Terminals Using
OMRON MIL Cables
The MIL Cables listed in the following table are available to connect OMRON
I/O Terminals (e.g., I/O Relay Blocks). Select the MIL Cable that matches the
Remote I/O Terminal and the I/O Terminal.
Slave MIL Cable I/O Relay Block or other I/O
Terminal
Remarks
DRT2-ID16ML G79-I@C G7TC-ID16
G7TC-IA16
---
DRT2-OD16ML G79-O@C G7TC-OC16/OC08
G70D-SOC16/VSOC16
G70D-FOM16/VFOM16
G70A-ZOC16-3
G70D-SOC08
G70R-SOC08
---
DRT2-OD16ML-1 G79-I@C G7TC-OC16-1 ---
G79-O@C G70D-SOC16-1
G70D-FOM16-1
G70A-ZOC16-4
DRT2-ID32ML G79-I50-25-D1 (50 cm)
G79-I75-50-D1 (75 cm)
G7TC-ID16
G7TC-IA16
---
DRT2-OD32ML G79-O50-25-D1 (50 cm)
G79-O75-50-D1 (75 cm)
G7TC-OC16/OC08
G70D-SOC16/VSOC16
G70D-FOM16/VFOM16
G70A-ZOC16-3
G70D-SOC08
G70R-SOC08
---
DRT2-MD32ML G79-M50-25-D1 (50 cm)
G79-M75-50-D1 (75 cm)
Inputs: G7TC-ID16/IA16
Outputs: G7TC-OC16/OC08
G70D-SOC16/VSOC16
G70D-FOM16/VFOM16
G70A-ZOC16-3
G70D-SOC08
G70R-SOC08
I/O are distinguished by color.
Input tube color: Red
Output tube color: Yellow
DRT2-OD32ML-1 G79-O50-25-D1 (50 cm)
G79-O75-50-D1 (75 cm)
G70D-SOC16-1
G70D-FOM16-1
G70A-ZOC16-4
---
G79-I50-25-D1 (50 cm)
G79-I75-50-D1 (75 cm)
G7TC-OC16-1 ---
DRT2-MD32ML-1 G79-M50-25-D2 (50 cm)
G79-M75-50-D2 (75 cm)
Inputs: G70A-ZIM16-5
Outputs: G70D-SOC16-1
G70D-FOM16-1
G70A-ZOC16-4
I/O are distinguished by color.
Input tube color: Red
Output tube color: Yellow
