202
Connector Terminals with Transistors Section 5-6
UL2651: Standard Cable, UL20012: Stranded Cable, UL20028: Color
Coded Cable

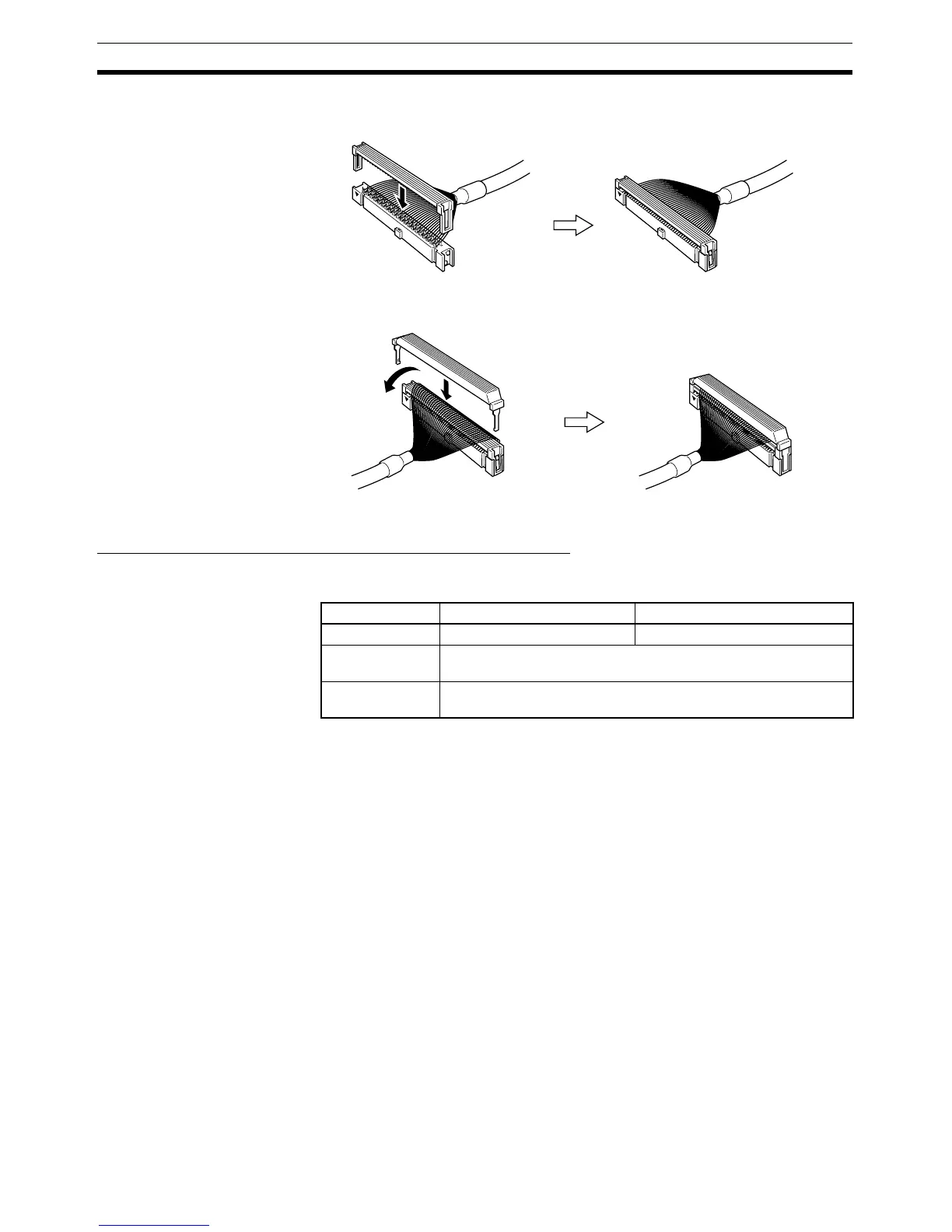

3. If required, fold the back over the connector, and insert and lock a strain
relief in place.
4. Connect the MIL Connector to a Remote I/O Terminal with a Connector.
Using Loose Wires with Pressure-welded Connectors
Use the following parts to prepare cables. The Socket used depends on the
wire size.
Note 1. Two Semi-covers are required for each connector.
2. A multi-drop DeviceNet Connector cannot be used if the Hood Cover is
used.
Refer to the PCB Relays Catalog (Cat. No. X33) for details on the XG5 Loose
Wire Pressure-welded Connectors.
Part Cable wire size: AWG24 Cable wire size: AWG26 to 26
Socket XG5M-4032-N XG5M-4035-N
Semi-cover
(See note 1.)
XG5S-2001
Hood Cover
(See note 2.)
XG5S-5022
To Next Page
