Overview of Analog Slaves Section 7-1

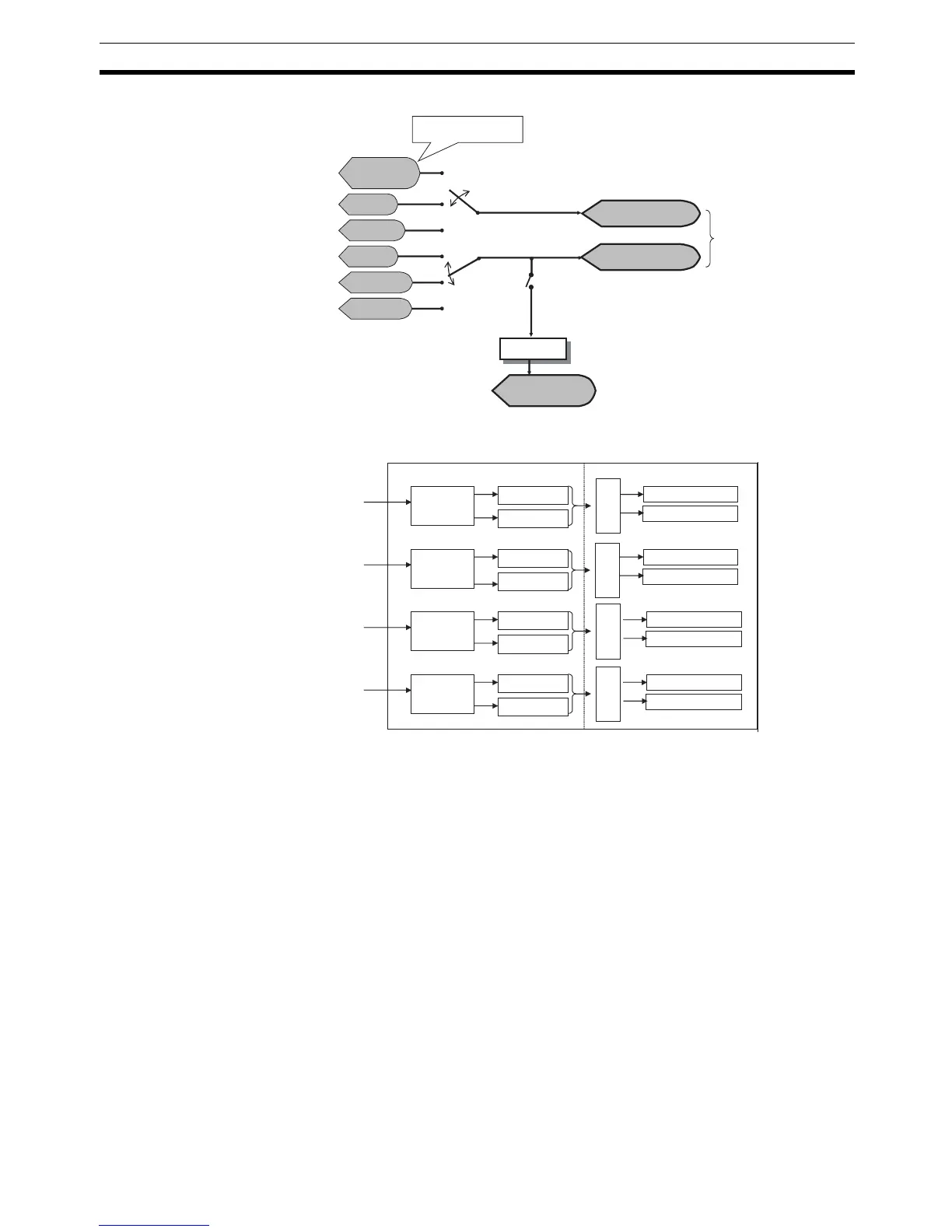

Flow of Data in Analog
Input Terminals
For Inputs 0 to 3, Analog Data 1 and 2 can be separately selected, as shown
in the following diagram.
Flow of Data in
Temperature Input
Terminals
In a Temperature Input Terminal, it is possible to select from six types of data
and switch the display mode. The display mode can be “normal display mode”
Moving average, scal-
ing enabled/disabled
Six types of data
Select two of the six types of data and
allocate as Analog Data 1 and 2.
Analog input
value 1
Peak value 2
Bottom value 3
Top value 4
Valley value 5
Rate of change 6
Analog Data 2
(allocated I/O data)
Analog Data 1
(allocated I/O data)
Allocated in Master.
Default allocation:
Analog input value
Comparator
The Comparator can be used
with values allocated as Analog
Data 1
Analog Status Flags
(allocated I/O data)
Input 0
Math
processing
Analog input
value
Other process-
ing results
Selected processing
Analog Data 1
Analog Data 2
Input 1
Math
processing
Analog input
value
Other process-
ing results
Selected processing
Analog Data 1
Analog Data 2
Input 2
Math
processing
Analog input
value
Other process-
ing results
Selected processing
Analog Data 1
Analog Data 2
Input 3
Math
processing
Analog input
value
Other process-
ing results
Selected processing
Analog Data 1
Analog Data 2
