Maintenance Information Window Section 7-3

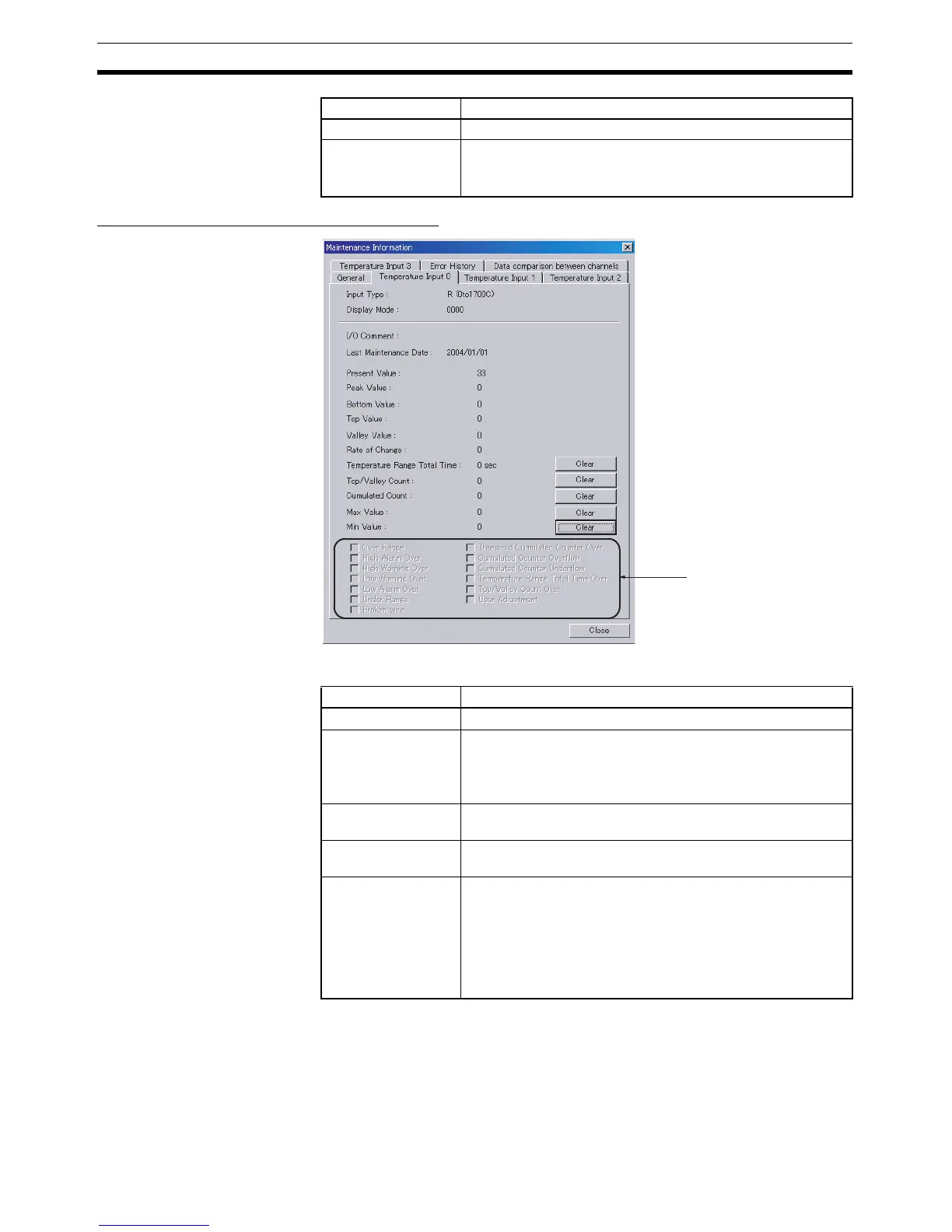

Individual Temperature Input Windows
Display Area
Unit Error ON when a Unit Error has occurred in an Analog Unit.
Cold junction Com-
pensator error
(DRT2-TS04T only)
ON when there is an error in the cold junction compensator.
Item Description
Status check boxes
(Status flags)
Item Description
Input Type
Shows the present input sensor type. (DRT2-TS04
@ only)
Display Mode
Indicates the number of digits displayed. (DRT2-TS04
@ only)
0000: No decimal point
0000.0: Decimal point and significant digits to 0.1
0000.0: Decimal point and significant digits to 0.01
I/O Comment Displays up to 32 characters of text as a comment. A separate
comment can be set for each input.
Last Maintenance
Date
Displays the last maintenance date that was set. (All models.)
Present Value Displays the present analog value. (All models.)
Displays values derived from the analog value, including the
Peak, Bottom, Top, and Valley values, and Rate-of-change
(DRT2-AD04
@ and DRT2-TS04@), the Temperature Range
Total Time and Top/Valley Count (DRT2-TS04
@ only), and the
Cumulated Count. For details, refer to each function’s expla-
nation and settings.
