Maintenance Information Window Section 7-3
Status Check Boxes Status Boxes Displayed for All Analog Slaves
Status Boxes Displayed for the DRT2-AD04@ and DRT2-TS04@ Only
Status Boxes Displayed for the DRT2-TS04@ Only

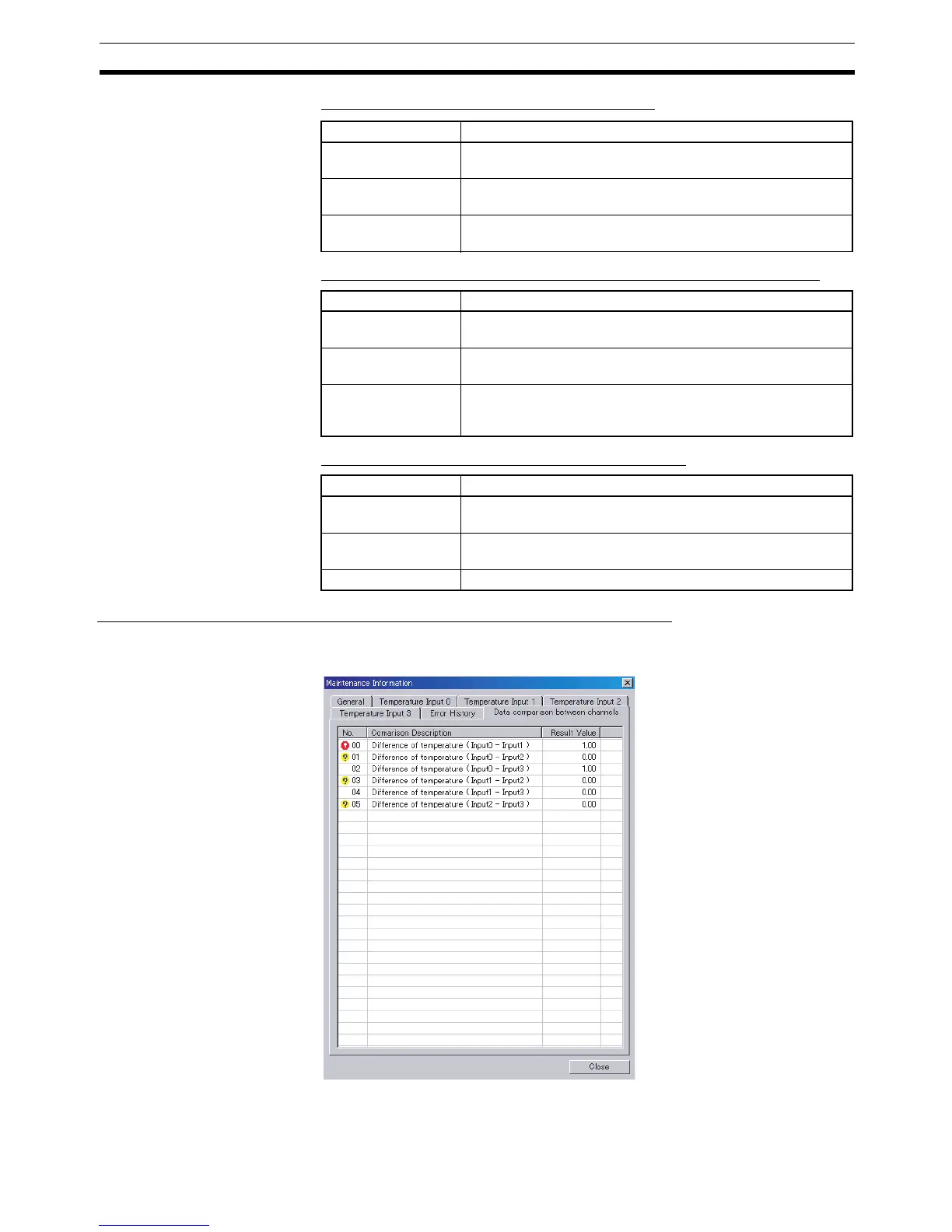

Data Comparison between Channels Window (DRT2-TS04@ Only)
Each comparison number (No.) corresponds to the comparison of a pair of
inputs.
Item Description
Threshold Cumu-
lated Counter Over
ON when the cumulative counter value exceeds the set value.
Cumulated Counter
Overflow
ON when there is an overflow in the cumulative counter value.
Cumulated Counter
Underflow
ON when there is an underflow in the cumulative counter
value.
Item Description
Over Range/Under
Range
ON when the analog data is above or below the displayable
range.
Alarm Over/Warning
Over
ON when the analog data is above or below the monitoring set
values set in the comparator function.
Broken wire ON when a wire is broken or disconnected. (Used only for
Analog Input Terminals when the input range is 1 to 5 V or 4 to
20 mA.)
Item Description
Temperature Range
Tota l T i me Ove r
ON when the present value being counted in the set range
exceeds the monitoring set value.
Top/Valley Count
Over
ON when the top or valley count exceeds the monitoring set
value.
User Adjustment ON when the user-set adjustment function is operating.
