Maintenance Information Window Section 7-3
Note 1. When a result value exceeds the monitoring set value, a red alarm icon will
be displayed to the left of the comparison number (No.).
2. When either of the comparison inputs is disconnected (off-wire detected),
the result value will be set to 0.00 and a yellow alarm icon will be displayed
to the left of the comparison number (No.).

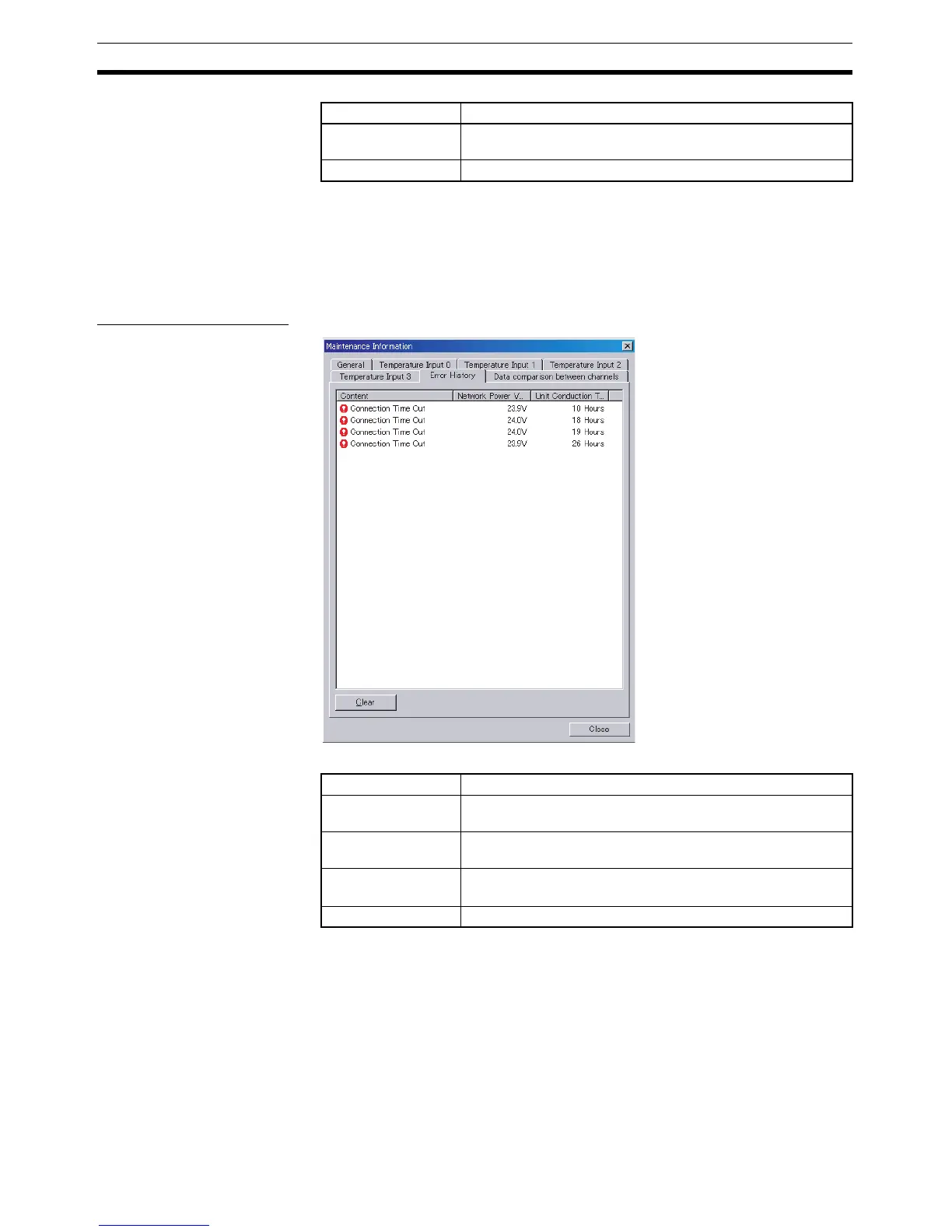

Error History Window
Item Description
Comparison
Description
Displays the inputs used in the error calculation.
Result Value Displays the calculation results.
Item Description
Content Displays the contents of the communications errors that
occurred.
Network Power Volt-
age
Displays the power supply voltage being supplied when the
error occurred.
Unit Conduction
Time
Displays the total time that the network power supply had
been ON when the error occurred. DRT2-TS04
@ only)
Clear Button Clears the error history.
