325
Analog Input Terminals Section 7-4

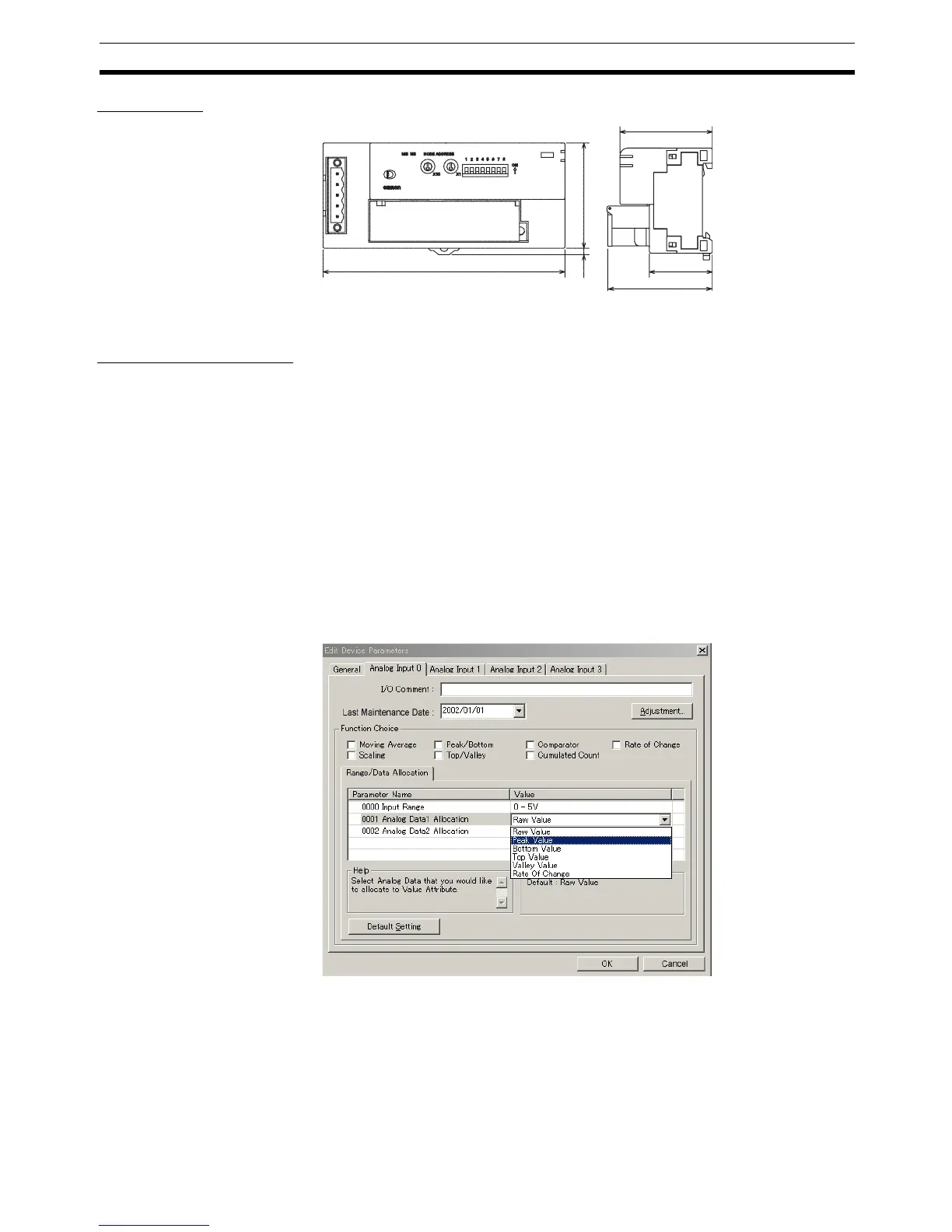

Dimensions
7-4-2 I/O Data Allocation Methods
Selecting Analog Data After performing math operations, up to two of the six resulting values can be
selected to allocate in the Master (one type each for Analog Data 1 and Ana-
log Data 2). Select from analog input value, peak value, bottom value, top
value, valley value, and rate of change. The selected data is allocated in the
Master individually or in combination with Status Flags. The following meth-
ods can be used to select the analog data.
Using the Configurator
1,2,3... 1. Double-click the icon of the Analog Slave to be set in the Main Window and
open the Edit Device Parameters Window. (From the Maintenance Mode
Window, click the right mouse button over the Slave icon and select Pa-
rameters and Edit.)
2. Click the Tab Page for the input where analog data is to be selected. From
the data on which math operations have been performed, select two types
of data from the pull-down menu as Analog Data 1 and Analog Data 2.
3. Return to the General Tab, click the Download Button, and then click the
Reset Button to reset the Unit.
4. Click the OK Button and exit the window.
115
3.1
50
49.7
29.9
43.9
To Next Page
