356
Analog Input Terminals Section 7-4

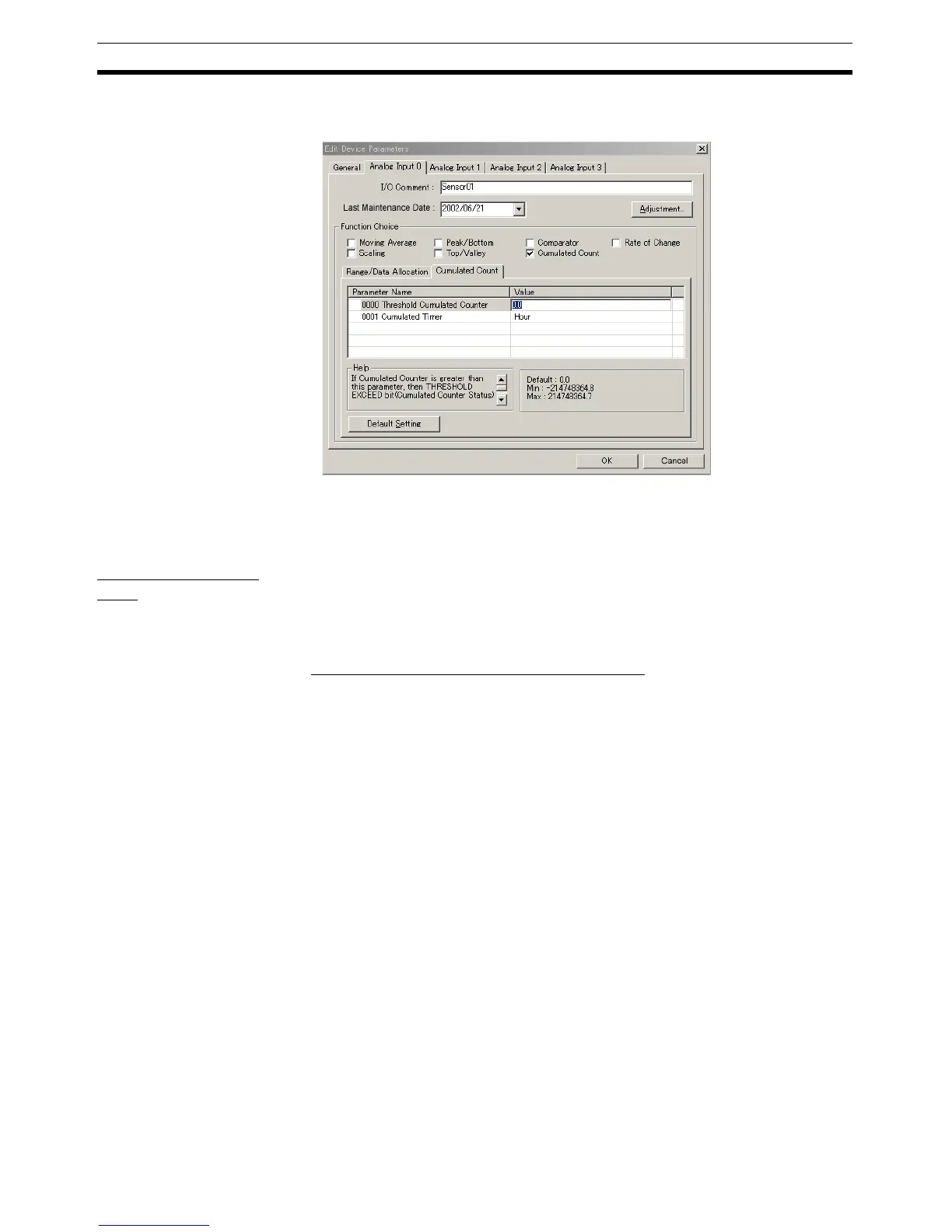

4. To set the monitor value, click the Cumulated Count Tab, and input the de-
sired value in the Threshold Cumulated Counter field.
5. Return to the General Tab, click the Download Button, and then click the
Reset Button to reset the Unit.
6. Click the OK Button and exit the window.
Last Maintenance
Date
The last maintenance date can be set in the Unit separately for the Unit and
the connected devices. It enables the user to easily determine the next main-
tenance date. The date can be set using the Configurator.
Setting Using the DeviceNet Configurator
â– Setting the Last Maintenance Date of the Unit
1,2,3... 1. Double-click the icon of the Analog Slave to be set in the Main Window and
open the Edit Device Parameters Window. (From the Maintenance Mode
Window, click the right mouse button over the Slave icon and select Pa-
rameters and Edit.)
To Next Page
