Analog Input Terminals Section 7-4

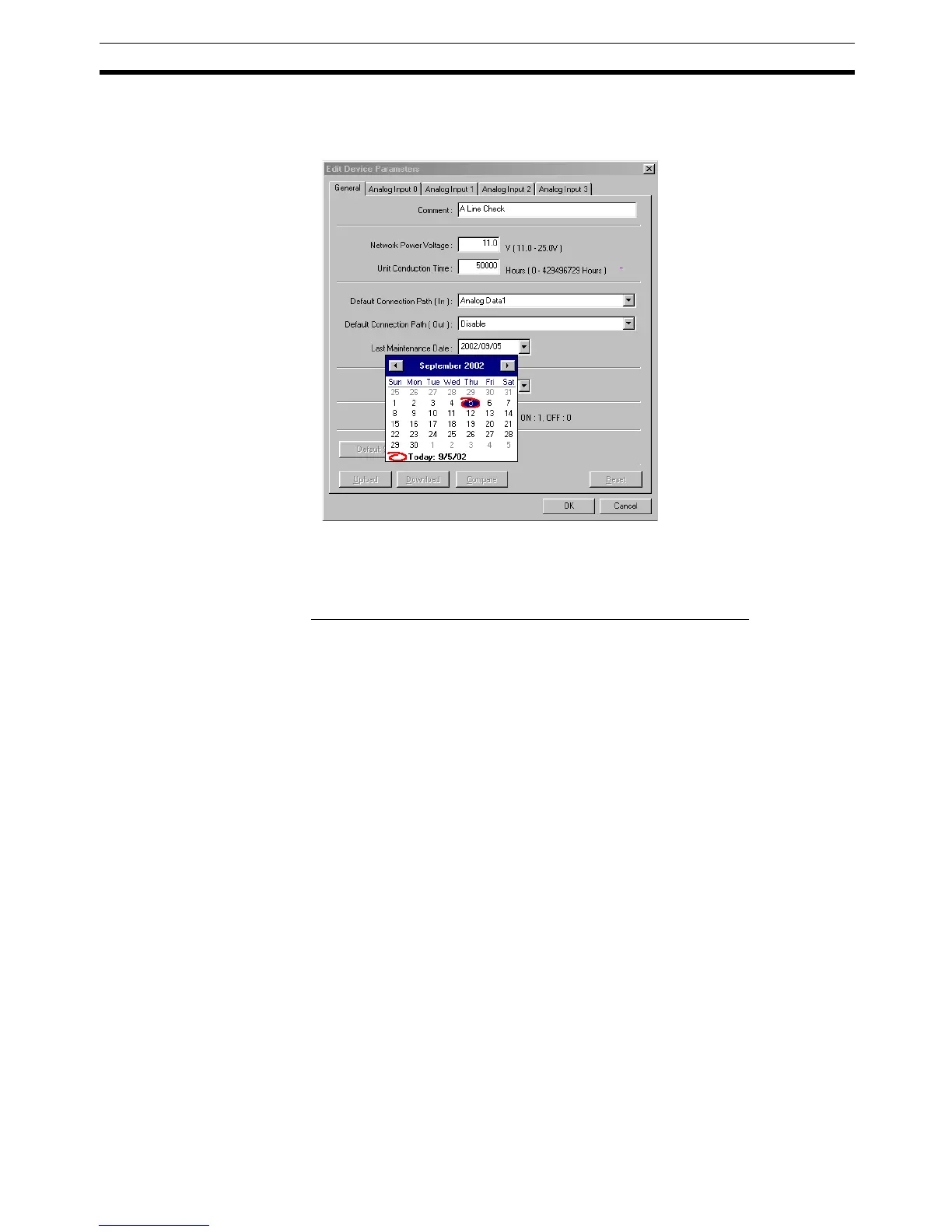

2. Click the General Tab, and select the applicable date from the pull-down
menu in the Last Maintenance Date field. (To enter the current date, select
Today, which is at the bottom of the pull-down menu.)
3. Click the Download Button, and then click the Reset Button to reset the
Unit.
4. Click the OK Button and exit the window.
â– Setting the Last Maintenance Date of the Connected Device
1,2,3... 1. Double-click the icon of the Analog Slave to be set in the Main Window and
open the Edit Device Parameters Window. (From the Maintenance Mode
Window, click the right mouse button over the Slave icon and select Pa-
rameters and Edit.)
2. Click the Tab Page for the input that is connected to a connecting device
requiring the last maintenance date to be set. Select the applicable date
To Next Page
