44
DeviceNet Remote I/O Communications Section 3-2
Procedure

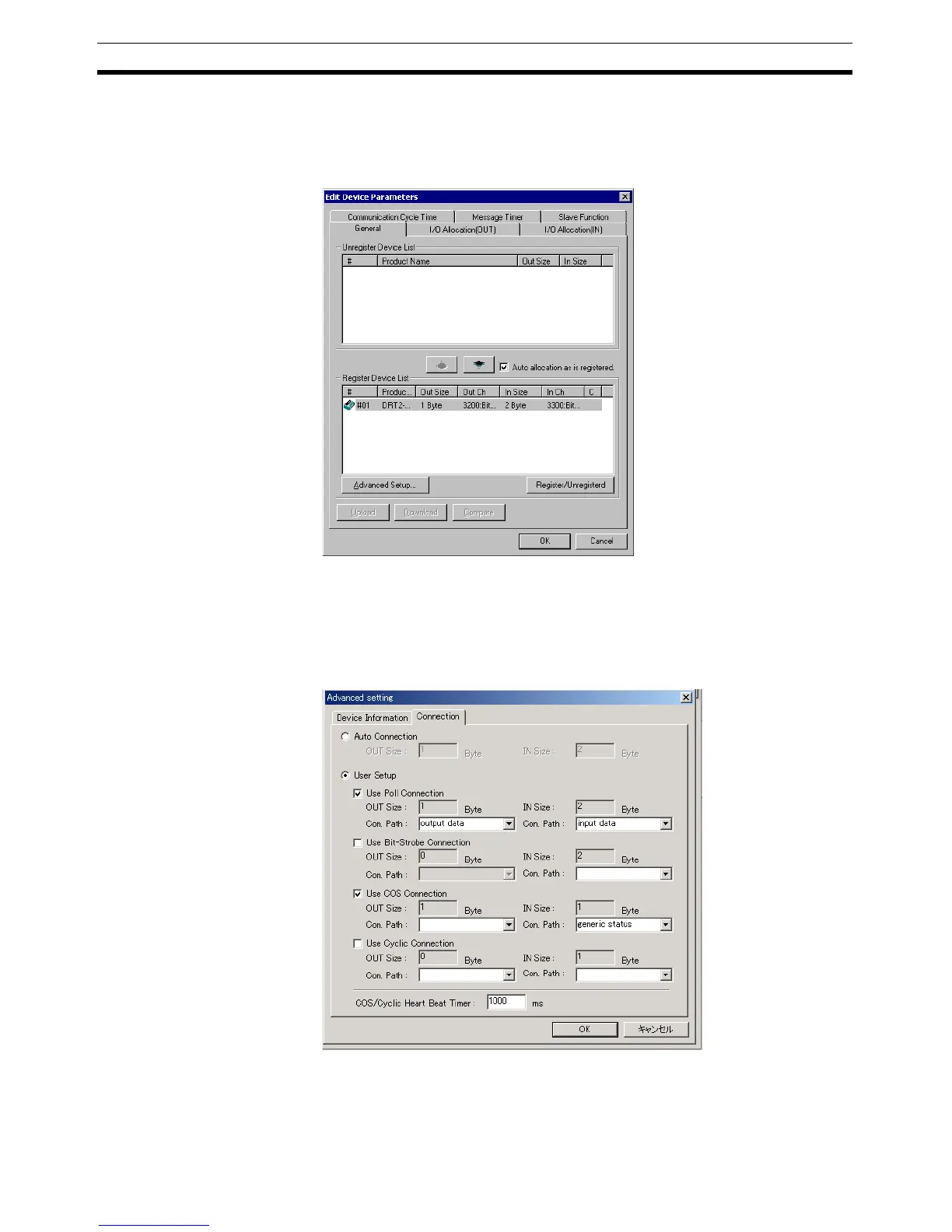

1,2,3... 1. In the Network Configuration Window, select the Master Unit, and double-
click or click the right mouse button and select Parameter – Edit – Gener-
al, and then select the Smart Slave to be set.
2. Click the Advanced Setup Button, click the Connection Tab, and select
User Setup. Select Use Poll Connection and Use COS Connection and
then select output data, input data, and generic status for the respective
connection paths. In this example, the IN size for COS connection is set to
generic status, the IN size for poll connection is set to input data, and
OUT size for poll connection is set to output data.
3. Click the OK Button.
To Next Page
