Chapter 6: Connectivity
The following connections are available on the user access panel:
K
F
D
E
G
H
J
A
C
B

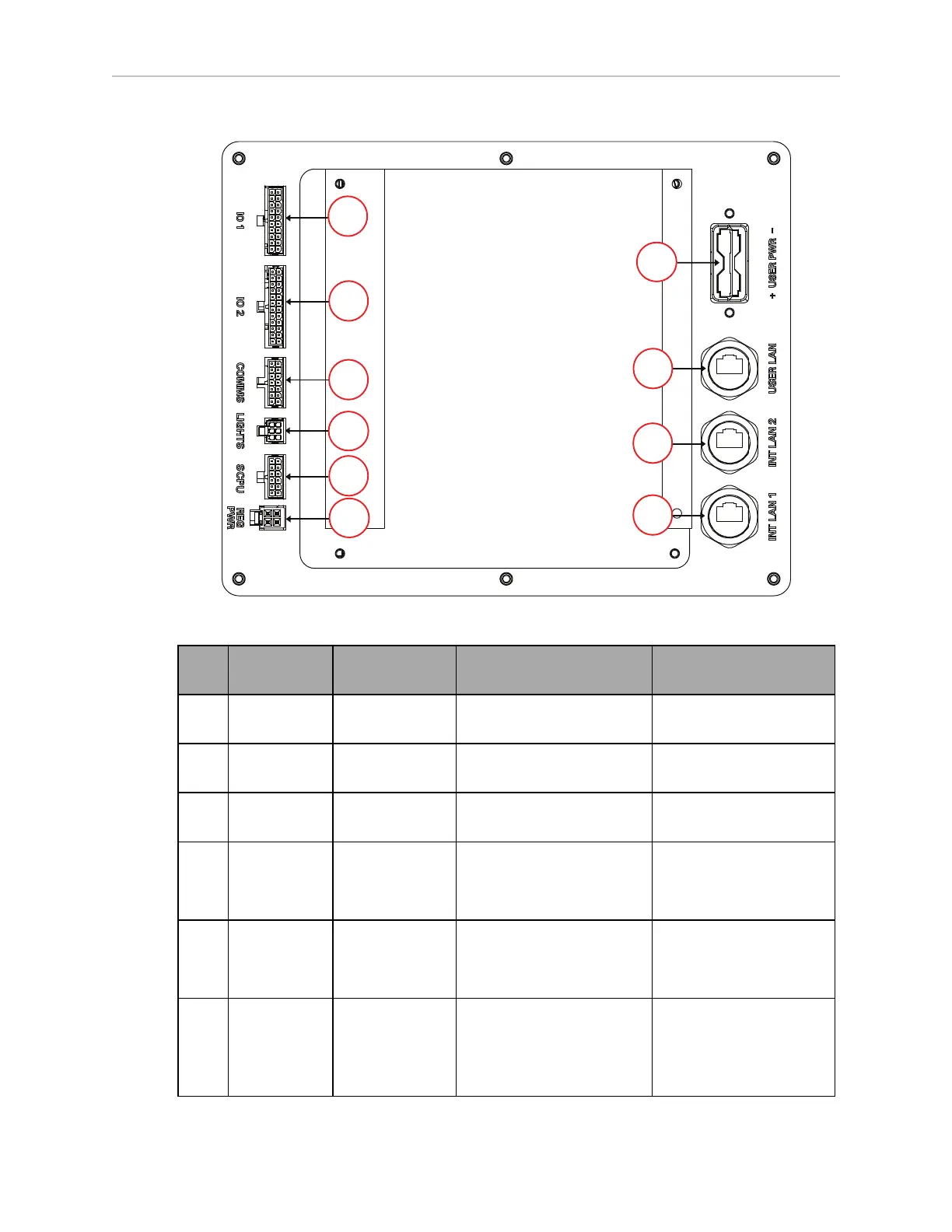

Figure 6-11. Connectors on the User Access Panel
ID Connection
Connector
Type
Mating Connector
(user-supplied item)
Description
A USERLAN RJ45 port RJ45 Connection to the Oper-
ator Panel.
B INT LAN 2 RJ45 port RJ45 Ethernet connection to
MQTT network.
C INT LAN 1 RJ45 port RJ45 Ethernet connection to
MQTT network.
D REG PWR Mini-Fit Jr., 2 x
2
Molex P/N:
0469920410
Regulated user power.
See: REG PWR on page
159.
E SCPU TE Micro-mate
N Lok., 2 x 6
TE P/N: 1-794617-2 Connection to safety sys-
tem.
See: SCPU on page 161.
F LIGHTS Mini-Fit Jr., 2 x
3
Molex P/N: 0469920610 Optional device con-
nection.
See: LIGHTS on page
163.
31500-000 Rev A HD-1500 Platform User's Manual 158
