Charging Station Features and Parts
The HD-1500 charging station consists of two main parts: the power supply box, and the dock-
ing target. The docking target is the charging device that the AMR drives itself into, and mates
with the charging paddle as shown the following figure. The power supply box, transfers
power to the docking target using a power cord.

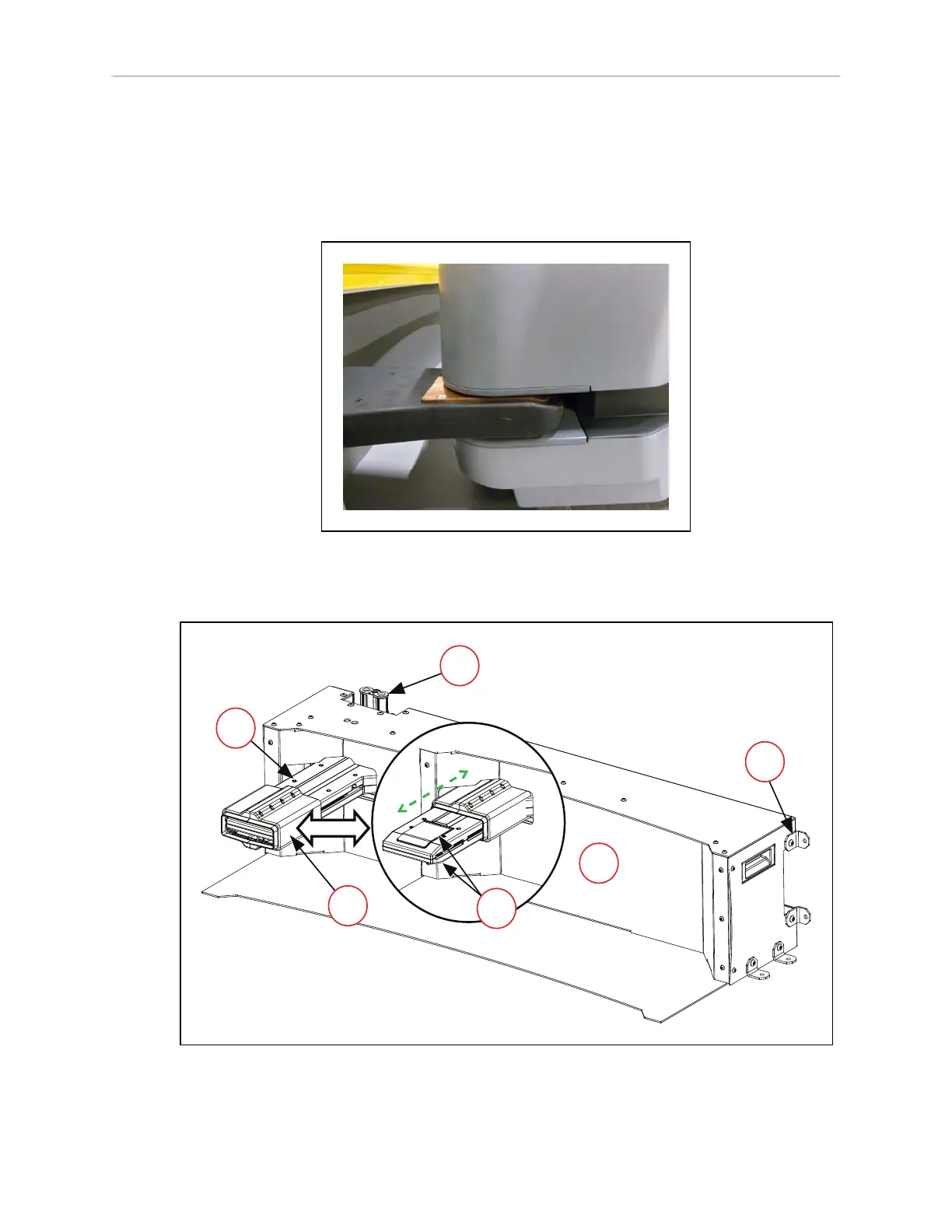

Figure 3-64. AMR Mating with the Charging Paddle
Docking Target - Features and Parts
A
B
C
D
E
F
Figure 3-65. Docking Target - Features and Parts
