Chapter 10: Technical Specifications
10.1 Dimension Drawings
HD-1500 Platform
Following images display the physical dimensions of the HD-1500 platform.
535 550
17
1696
370
850
211
A
B
D
E
F
G
HJ
C

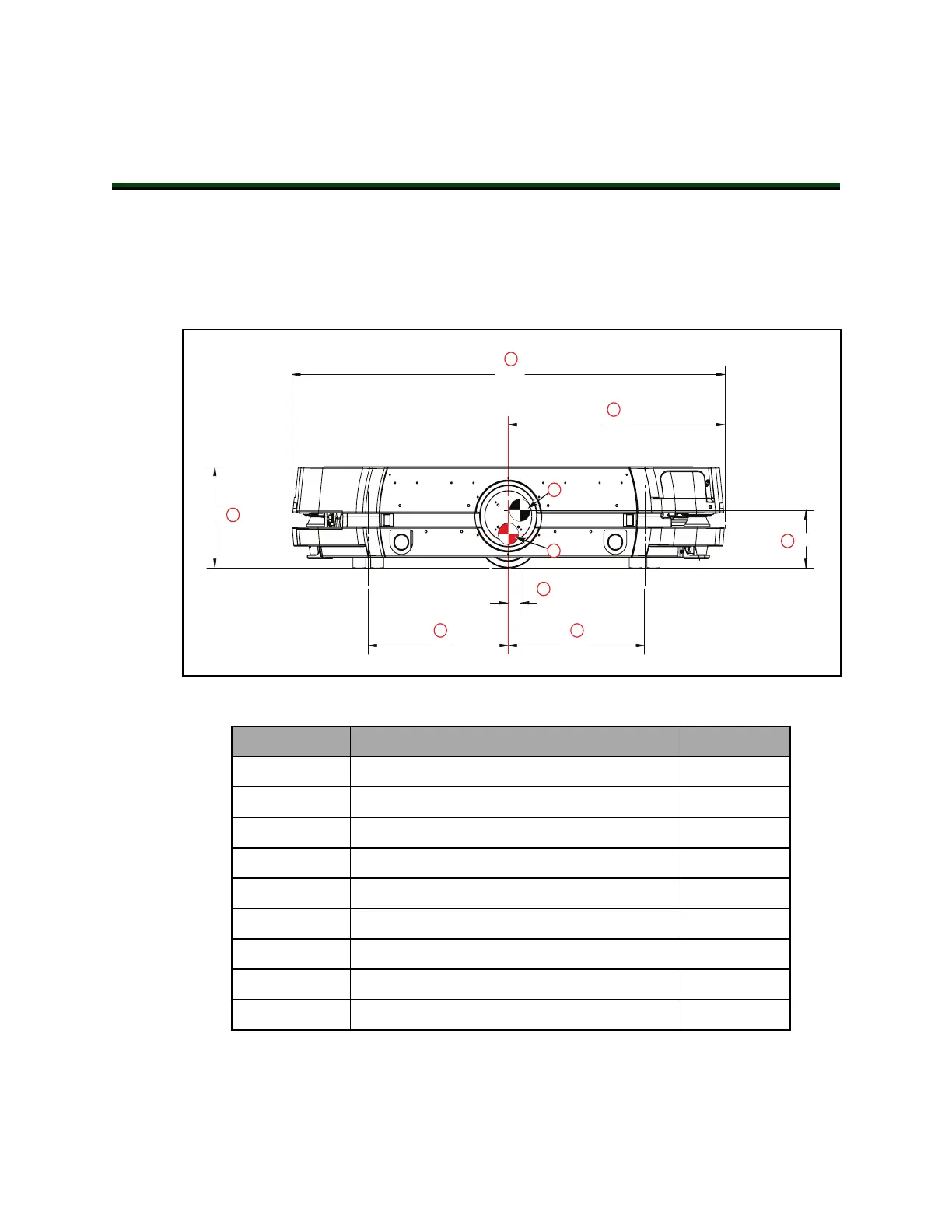

Figure 10-1. HD-1500 Platform Dimensions - Side View (units are in mm)
Callout Description mm
A HD-1500 length 1696
B HD-1500 height 370
C Center of gravity (COG) N/A
D Center of rotation (COR) N/A
E COGto COR 17
F COG to the floor 211
G Front of the HD-1500 to COR 850
H Front caster pivot point to COR 535
J Rear caster pivot point to COR 550
31500-000 Rev A HD-1500 Platform User's Manual 270
