Chapter 8: Maintenance
blue LED is off.

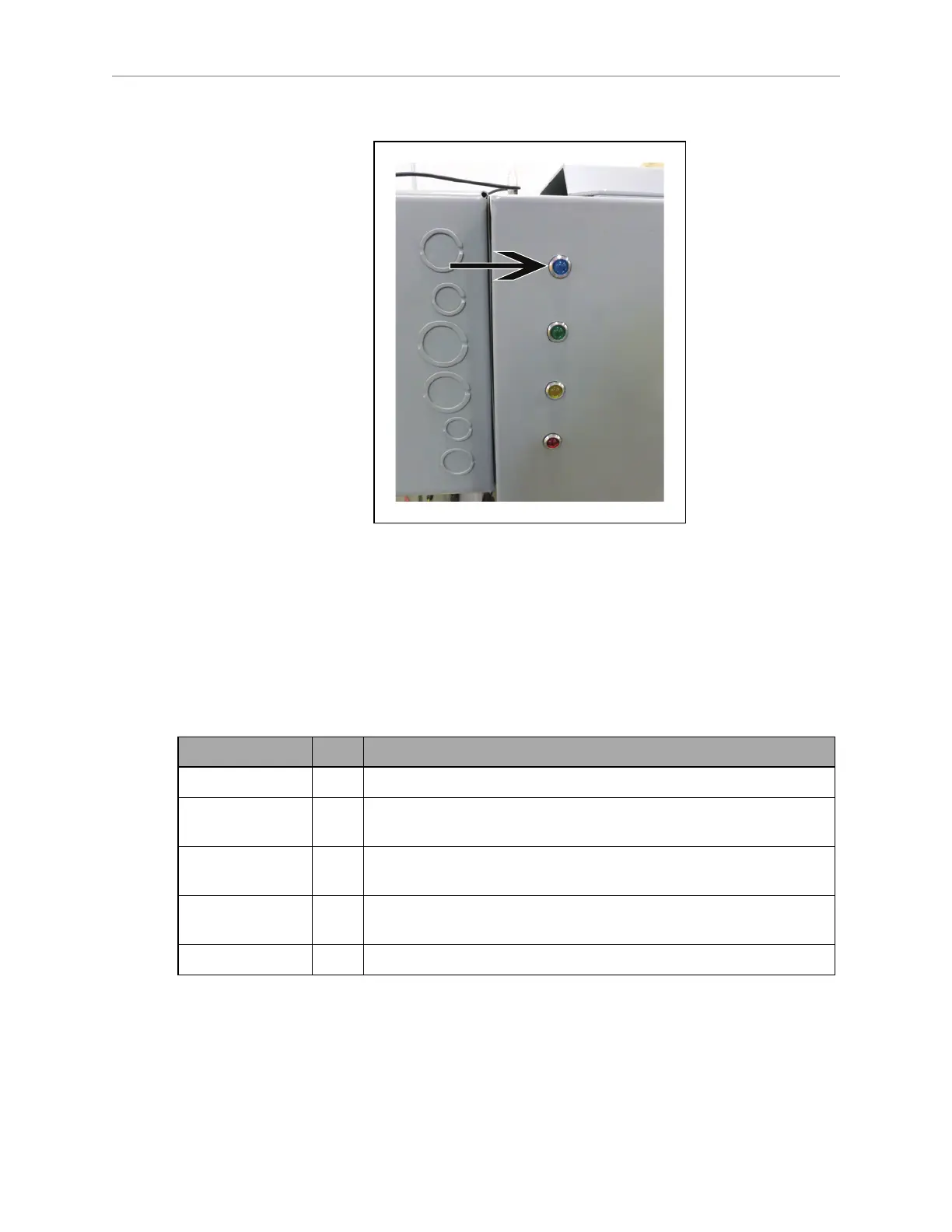

Figure 8-6. Blue LED Off
8.3 Lifting the Platform Safely
In the rare event that the platform needs to be lifted, follow the instructions in this section.
Before you begin, press an E-Stop button and put the HD-1500 into a safe state for main-
tenance work.
You need following equipment to lift the platform (all tools and equipment are user-supplied):
Tool QTY Description
Lifting rings 4 The lifting rings ship with the platform.
Safety-rated
slings
4 The slings ship with the platform.
Forklift or similar
device
1 The forklift or any other lifting machine you use must be safety
rated for at least 1100 kg of weight.
14 mm Allen
wrench
1 Allen wrench is used to tighten the lifting rings to the chassis.
PPE N/A Eye protection, toe protection and gloves.
To lift the platform safely, follow these steps:
1.
Attach the OMRON-supplied lifting rings, using a 14 mm Allen wrench, to the loc-
ations shown in Figure 8-8. There are four bolt holes on the HD-1500 for attaching the
lifting rings. Once the lifting rings are attached, tie and secure the strapsFigure 8-8.
31500-000 Rev A HD-1500 Platform User's Manual 220
