3.4 Unpacking Considerations
HD-1500 Unpacking
The HD-1500 arrives in a crate secured by straps to the base pallet. The HD-1500 crate meas-
ures 1969 x 1448 x 991 mm, and weighs 802 kg. You must use a rated device to move the
crate.

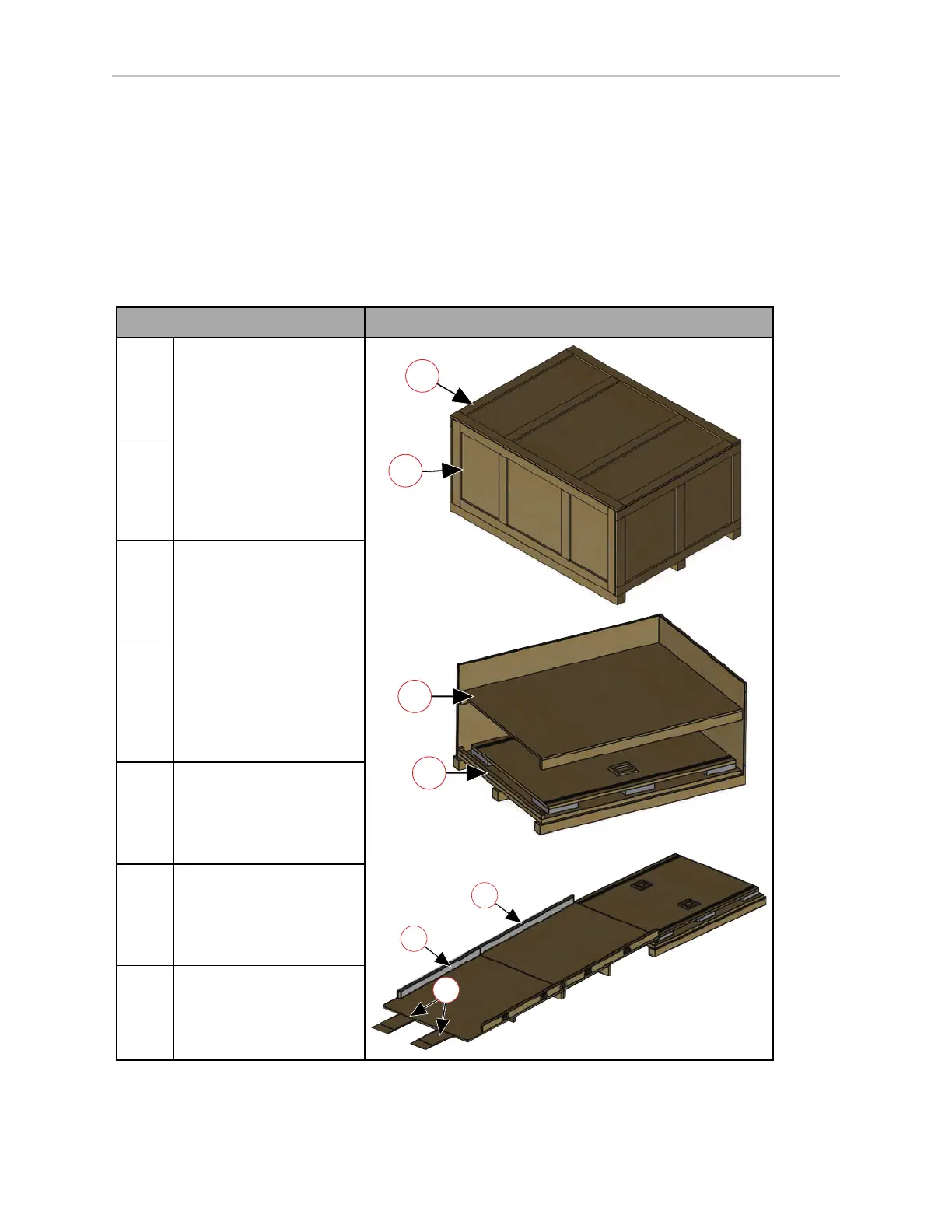

The following figures display the HD-1500 crate and its main parts.
IMPORTANT: The pallet jack, overhead hoist or forklift used to lift the HD-1500
crate must be rated for at least 1100 kg.
Description Image
A Crate housing
A
C
D
B
E
F
G
B Crate front panel
C Plywood base pallet
D Crate top section - stores
the ramps
E First ramp
F Second ramp
G Wood rails
The following figure illustrates the movement of the HD-1500 down the ramp, and on to the
floor.
