273 HD-1500 Platform User's Manual 31500-000 Rev A

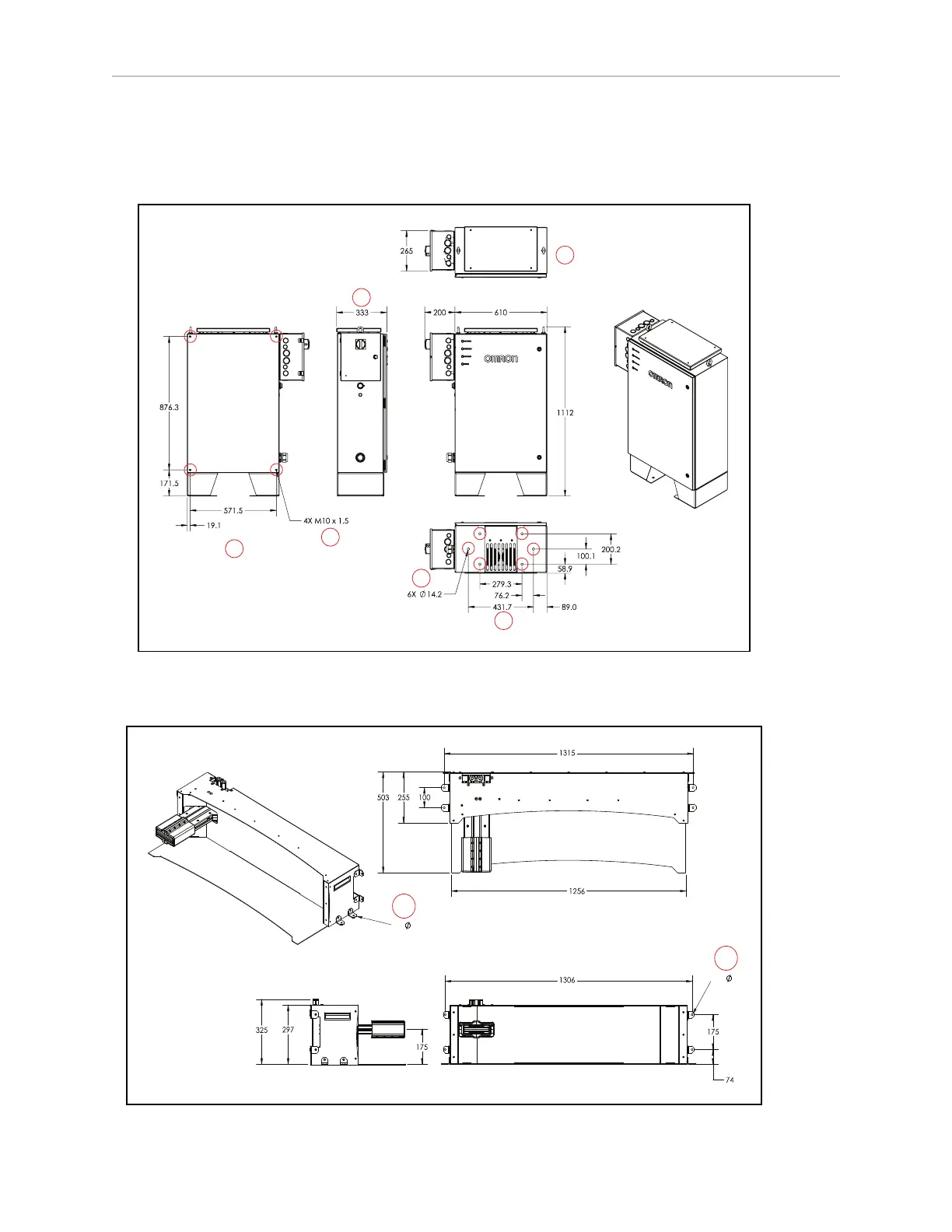

10.1 Dimension Drawings
HD-1500 Charging Station
Following images display the physical dimensions of the HD-1500 power supply box and the
docking target.
A
B
C
F
E
D
Figure 10-3. Power Supply Box Dimensions, (A) Top View, (B)Back View, (C) Wall Mount Holes,
(D) Bottom View, (E)Floor Mount Holes, and (F) Side View (units are in mm)
A
B
4X 9
4X 9
