Chapter 7: Operation
7.4 Operator Panel
The Operator Panel is comprised of a screen, an E-Stop button, ON and OFF buttons, a brake
release button, a pendant port, a Maintenance Ethernet port and a keyswitch. The panel will
typically be mounted on the payload structure, so that it can easily be reached by an operator.
You can relocate the Operator Panel to other positions on you payload structure, subject to the
length limit of its cable connection to the AMR Controller.
Following figure displays the Operator Panel installed on the HD-1500 platform.

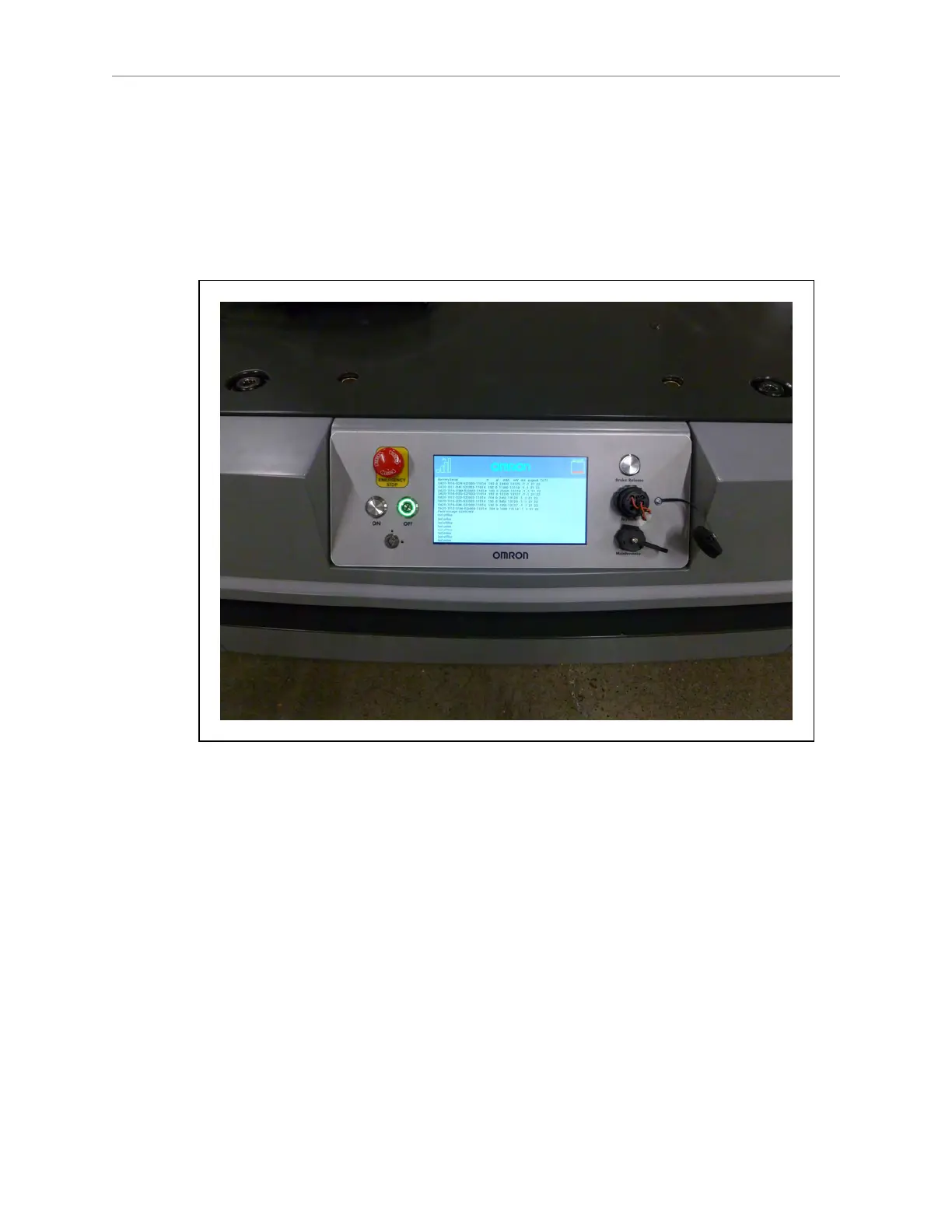

Figure 7-13. Operator Panel Installed on the HD-1500 Platform
Screen
The Operator panel screen is a color TFT, 800 x 480 pixels, 178 mm diagonal display. It is not
touchscreen which results in increased brightness (400 cd/m²). The addition of anti-glare sur-
face treatment, further increases the clarity of the screen display. It can display 256K colors,
and is backlit.
31500-000 Rev A HD-1500 Platform User's Manual 194
