8.3 Lifting the Platform Safely
IMPORTANT: Do not exceed 25 kN per lifting mount point.
IMPORTANT: Inspect the straps for signs of wear and tear or any dam-
ages before attaching to the lifting rings.
0
125.00
375.00
125.00
375.00
650.00
660.00
660.00
650.00
0
187.50 300.00 187.50 300.00 394.00 394.00

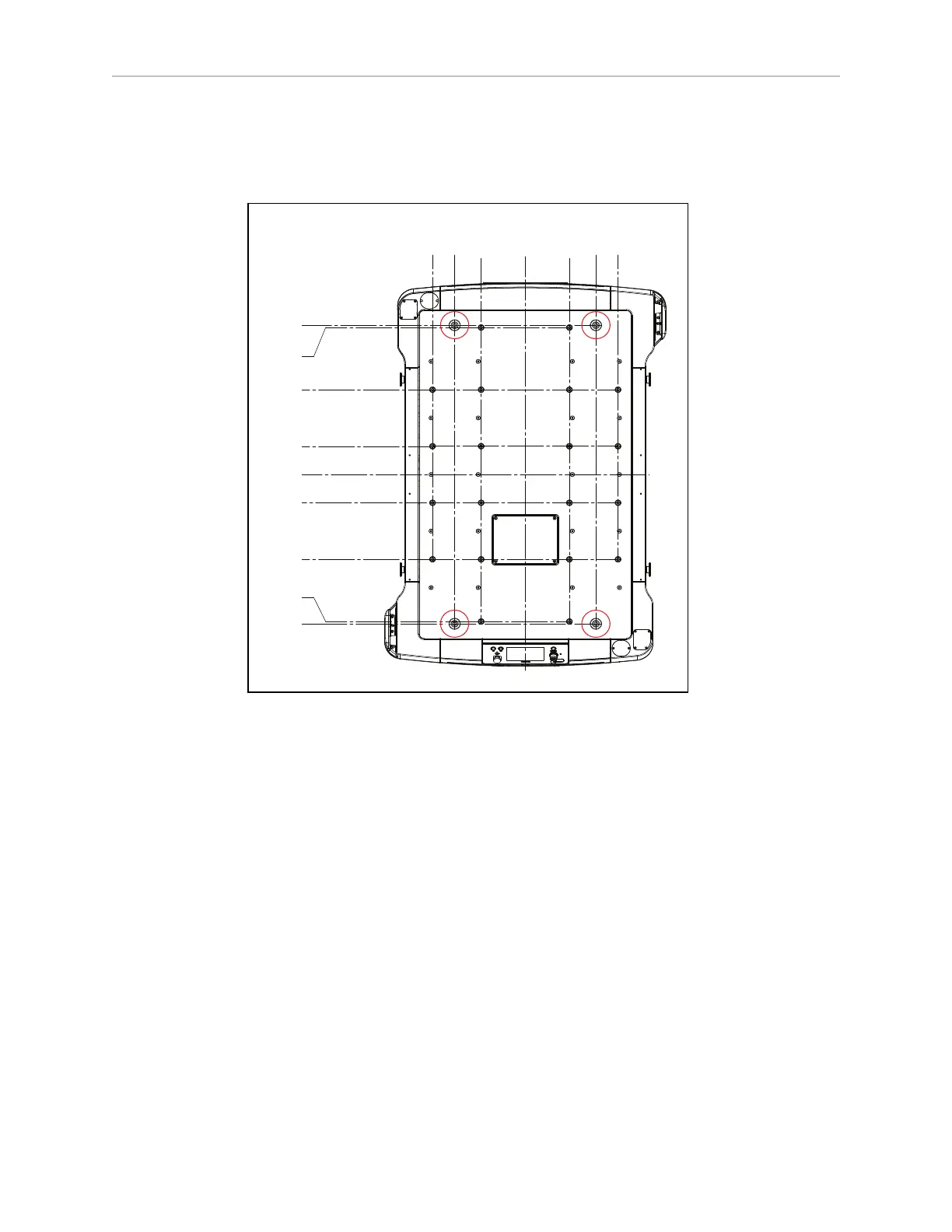

Figure 8-7. Lifting Mount Locations - (4) M16 X 2 Threaded Holes
(units are in mm)
