271 HD-1500 Platform User's Manual 31500-000 Rev A
10.1 Dimension Drawings
1195
719
600
636
359.5
300
318
300
318
359.5
A
B
CD
E
FG
H
L
JK

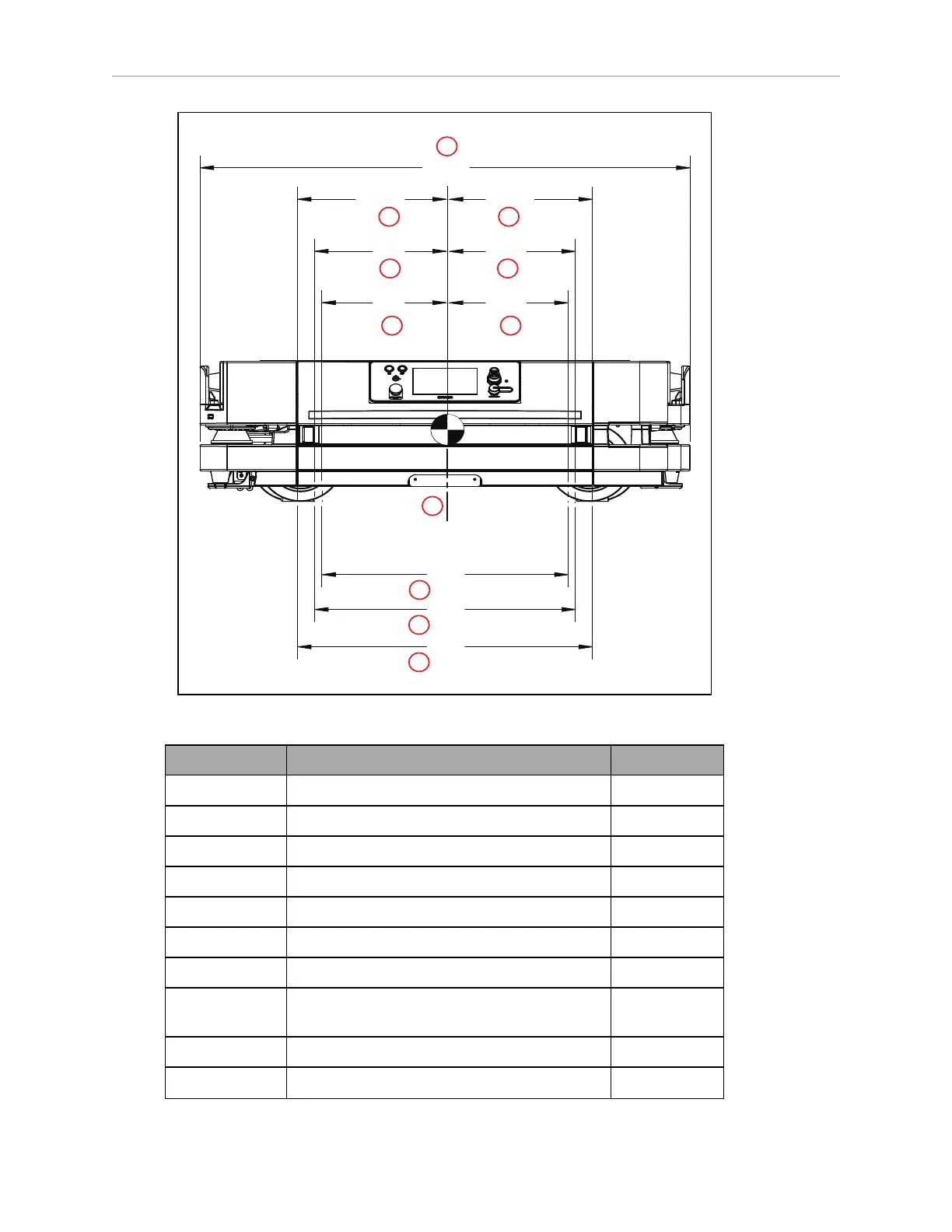

Figure 10-2. HD-1500 Platform Width Dimensions - Rear View (units are in mm)
Callout Description mm
A HD-1500 width 1195
B HD-1500 center-line N/A
C Right drive wheel to COG 359.5
D Left drive wheel to COG 359.5
E Distance between the drive wheels 719
F Front right caster pivot point to COG 318
G Front left caster pivot point to COG 318
H Distance between the front casters pivot
points
636
J Right rear caster pivot point to COG 300
K Left rear caster pivot point to COG 300
