205 HD-1500 Platform User's Manual 31500-000 Rev A
7.5 Other Controls and Indicators

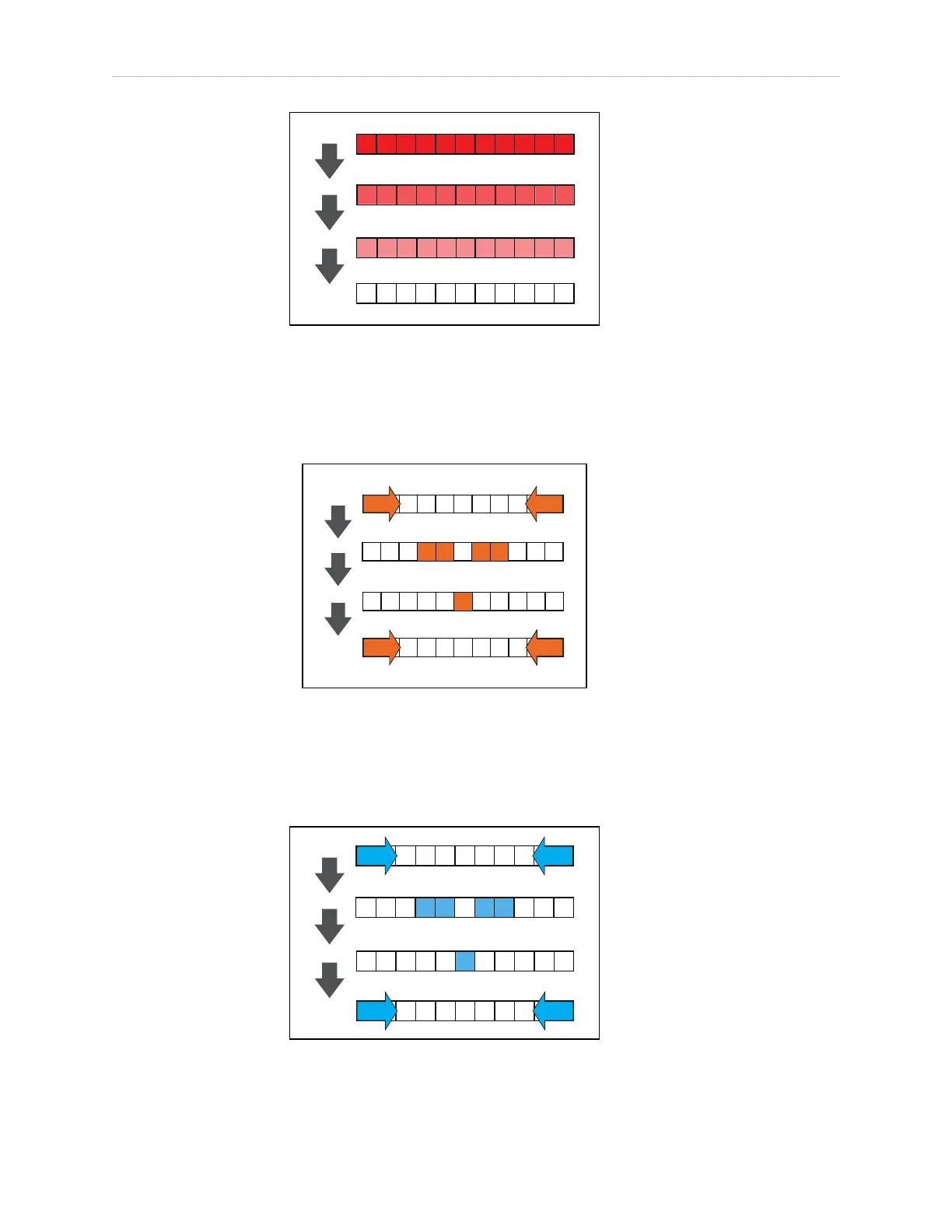

Figure 7-23. E-Stop Indication
Lost
When lost both front and rear light strips display two orange arcs, traveling from one edge to
the middle, in opposite directions, and meeting in the middle, then repeats.
Figure 7-24. AMR Lost Indication
Stopped (no errors), or Booting
When booting, the light strip displays two blue arcs, traveling from one edge to the middle, in
opposite directions, and meeting in the middle, then repeats. Pulsing at the center.
