Chapter 8: Maintenance

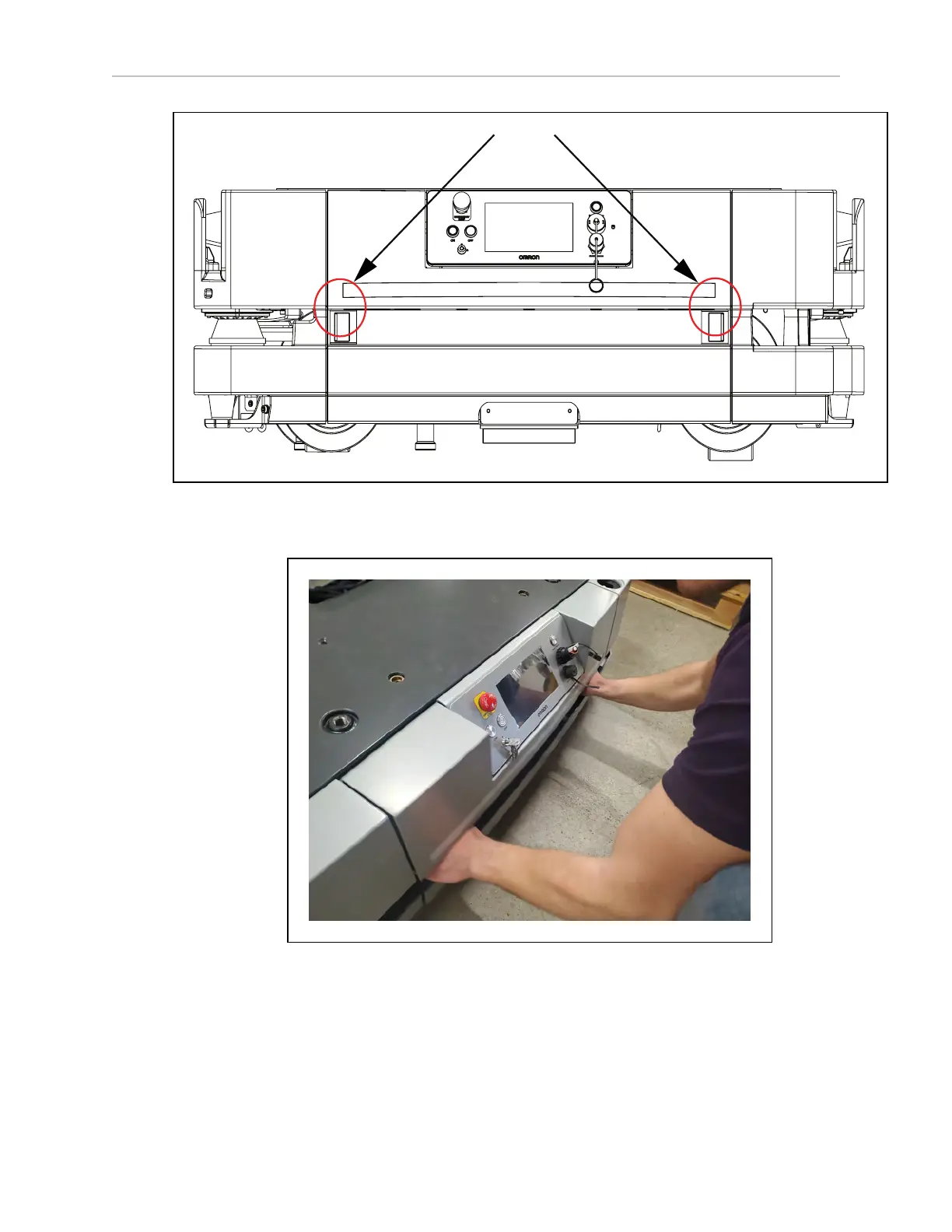

Figure 8-50. Rear Skin Recessed Handles
2.
Grip the skin at the two recessed handles, and press inward to unlatch.
Figure 8-51. Gripping the Skin Recessed Handles
3. Once unlatched, pull the skin away from the chassis just enough so you can reach and
disconnect the rear light connector.
31500-000 Rev A HD-1500 Platform User's Manual 258
