11.1 Default Safety Zones
2500 2000 1500 1000 500 0 -500 -1000 -1500 -2000 -2500
A
MR Y-Axis (mm)
−1000
0
1000
2000
3000
AMR X-Axis (mm)
Laser Zone Pair 22

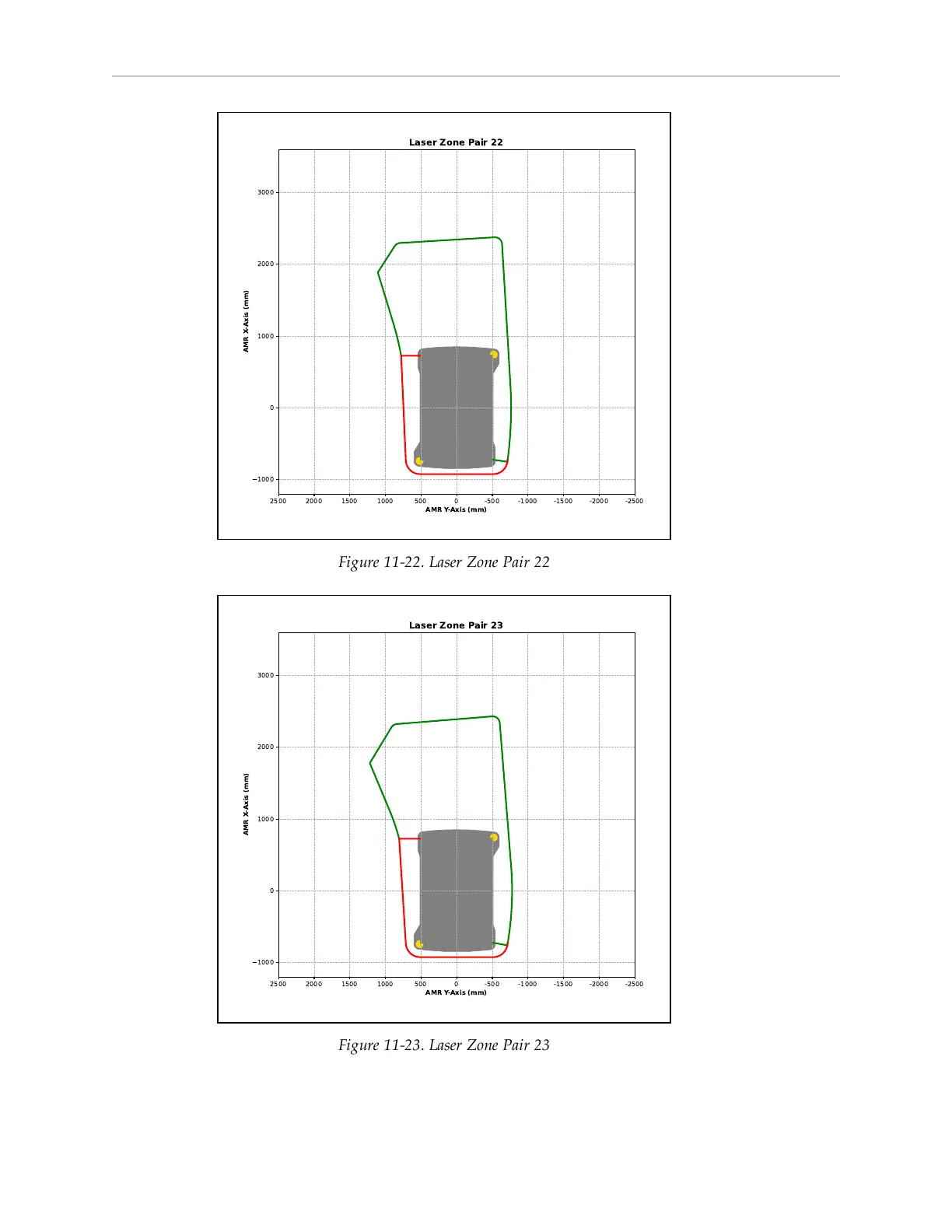

Figure 11-22. Laser Zone Pair 22
2500 2000 1500 1000 500 0 -500 -1000 -1500 -2000 -2500
A
MR Y-Axis (mm)
−1000
0
1000
2000
3000
AMR X-Axis (mm)
Laser Zone Pair 23
Figure 11-23. Laser Zone Pair 23
