Chapter 11: HD-1500 Default Safety Zones
2500 2000 1500 1000 500 0 -500 -1000 -1500 -2000 -2500
A
MR Y-Axis (mm)
−1000
0
1000
2000
3000
AMR X-Axis (mm)
Laser Zone Pair 40

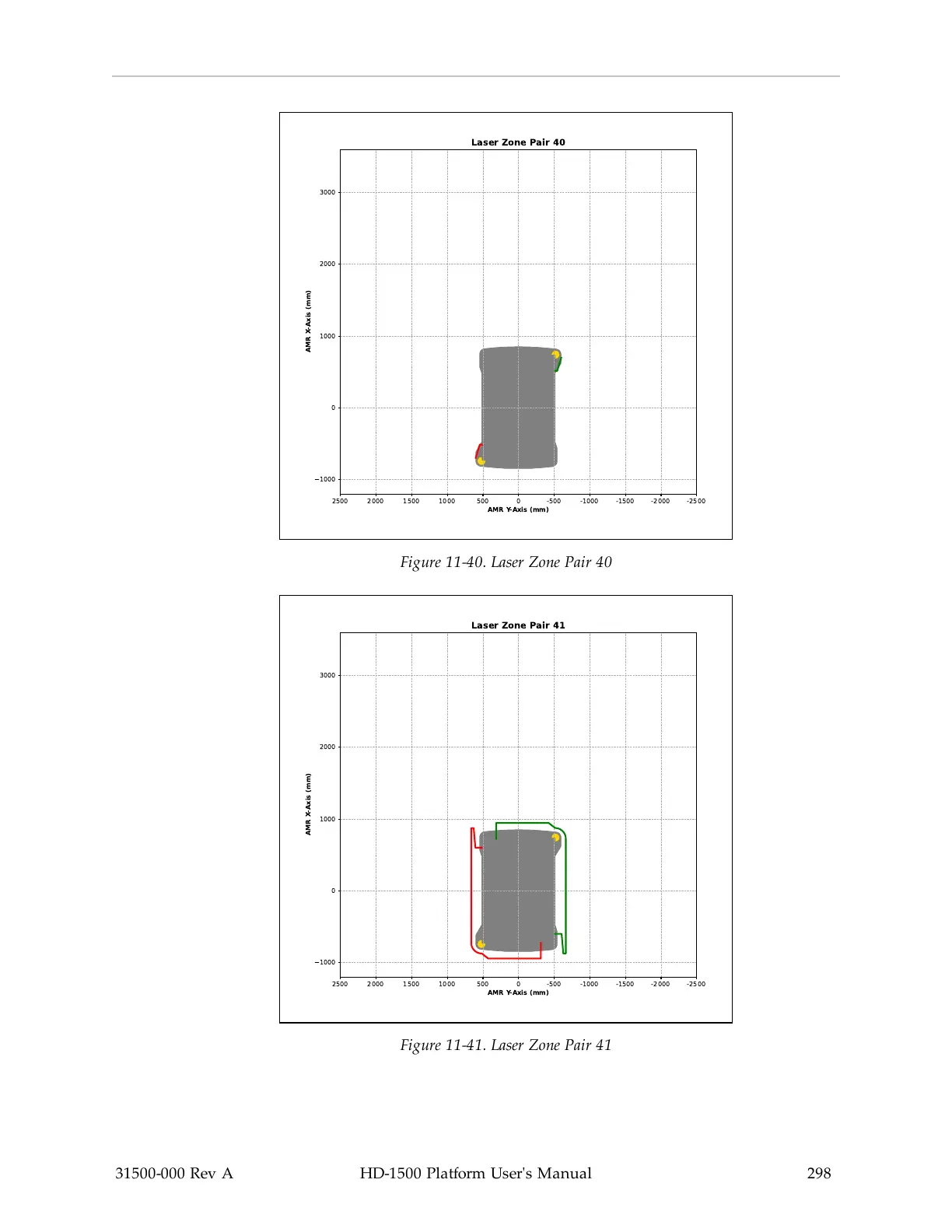

Figure 11-40. Laser Zone Pair 40
2500 2000 1500 1000 500 0 -500 -1000 -1500 -2000 -2500
A
MR Y-Axis (mm)
−1000
0
1000
2000
3000
AMR X-Axis (mm)
Laser Zone Pair 41
Figure 11-41. Laser Zone Pair 41
