Omron SYSDRIVE 3G3RV Series User Manual

O
ptions and Peripheral Devices
9
-
2
7

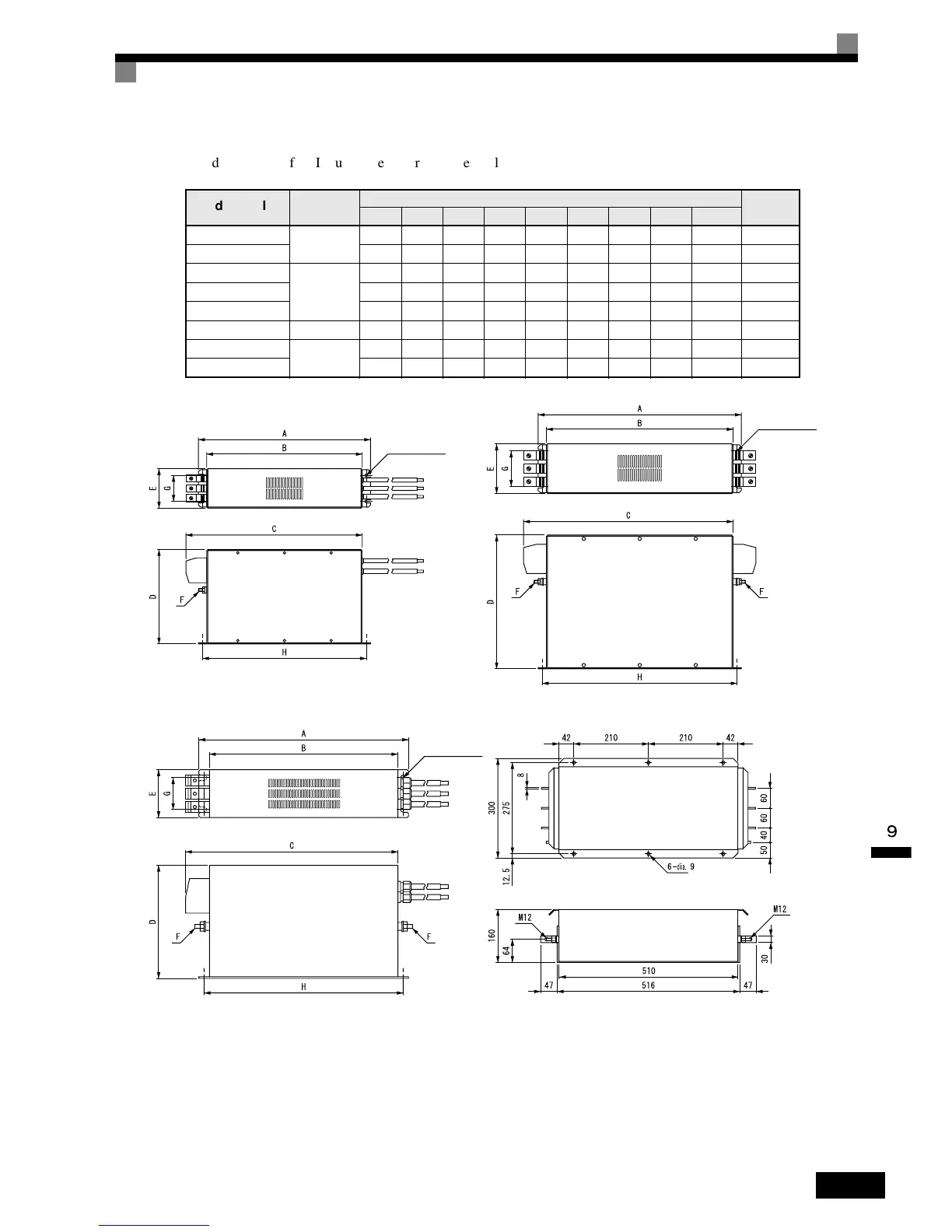

Dimensions
The dimensions of an Input Noise Filter are given below.
Model 3G3IV-
Dimensions
Diagram
Dimensions (mm)
Weight
(kg)
A B C D E F G H J
PFN258L4207
1
329 300 325 185 70 M6 45 314 4-M5 2.8
PFN258L5507 329 300 353 185 80 M6 55 314 4-M5 3.1
PFN258L7534
2
329 300 377 220 80 M6 55 314 4-M5 4
PFN258L10035 379 350 436 220 90 M10 65 364 4-M5 5.5
PFN258L13035 439 400 486 240 110 M10 80 414 4-M5 7.5
PFN258L18007 3 438 400 480 240 110 M10 80 413 4-M5 11
PFN359L25099
4
-------- - 16
PFN359L30099 -------- - 16
Dimensions Diagram 1
J (mounting screw)
Dimensions Diagram 2
J (mounting screw)
Dimensions Diagram 3
J (mounting screw)
Dimensions Diagram 4
