nstalling and Wiring Option Cards
2
-
5
3
nWiring the 3G3FV-PPGD2
Wiring examples are provided in the following illustrations for the 3G3FV-PPGD2.
• Shielded twisted-pair wires must be used for signal lines.
• Do not use the pulse generator's power supply for anything other than the pulse generator (encoder).
Using it for another purpose can cause malfunctions due to noise.
• The length of the pulse generator's wiring must not be more than 50 meters.

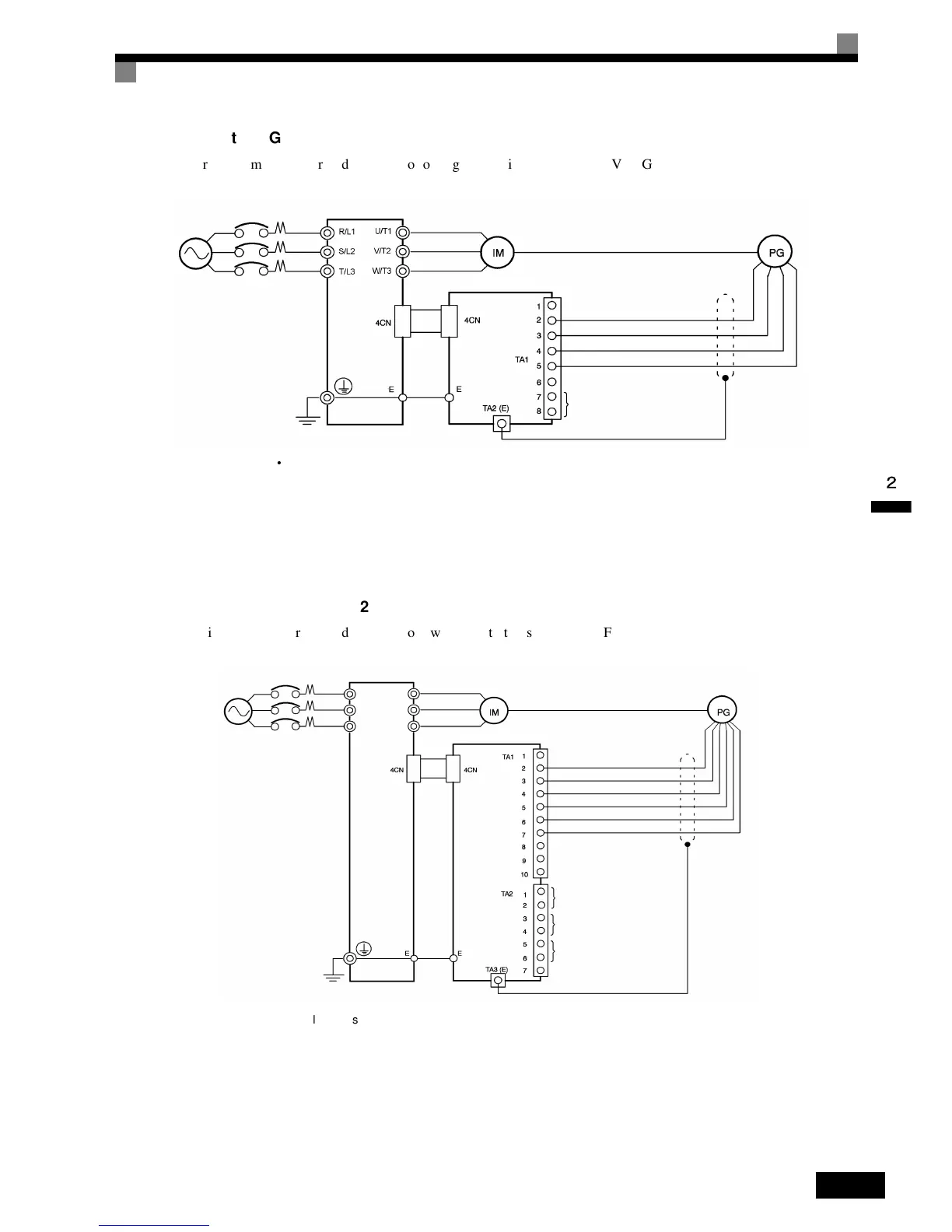

Fig 2.40 3G3FV-PPGD2 Wiring
nWiring the 3G3FV-PPGX2
Wiring examples are provided in the following illustrations for the 3G3FV-PPGX2.
• Shielded twisted-pair wires must be used for signal lines.
• Do not use the pulse generator's power supply for anything other than the pulse generator (encoder).
Using it for another purpose can cause malfunctions due to noise.
• The length of the pulse generator's wiring must not be more than 50 meters.
• The direction of rotation of the PG can be set in parameter F1-05 (PG Rotation). The factory preset if for
motor forward rotation, A-phase advancement.
Fig 2.41 3G3FV-PPGX2 Wiring
Three-phase 200
VAC (400 VAC)
Inverter
Power supply +12 V
Power supply 0 V
Power supply +5 V
Pulse input + (A/B phase)
Pulse input - (A/B phase)
Pulse monitor output
3G3FV-PPGD2
E6B2-CWZ1X
Three-phase
200 VAC (400
VAC)
Inverter
Power supply +12 V
Power supply 0 V
Power supply +5 V
A-phase pulse input (+)
A-phase pulse input (-)
B-phase pulse input (+)
B-phase pulse input (-)
A-phase pulse monitor output
B-phase pulse monitor output
Z-phase pulse monitor output
R/L1
S/L2
U/T1
V/T2
W/T3T/L3
3G3FV-PPGX2
E6B2-CWZ1X
