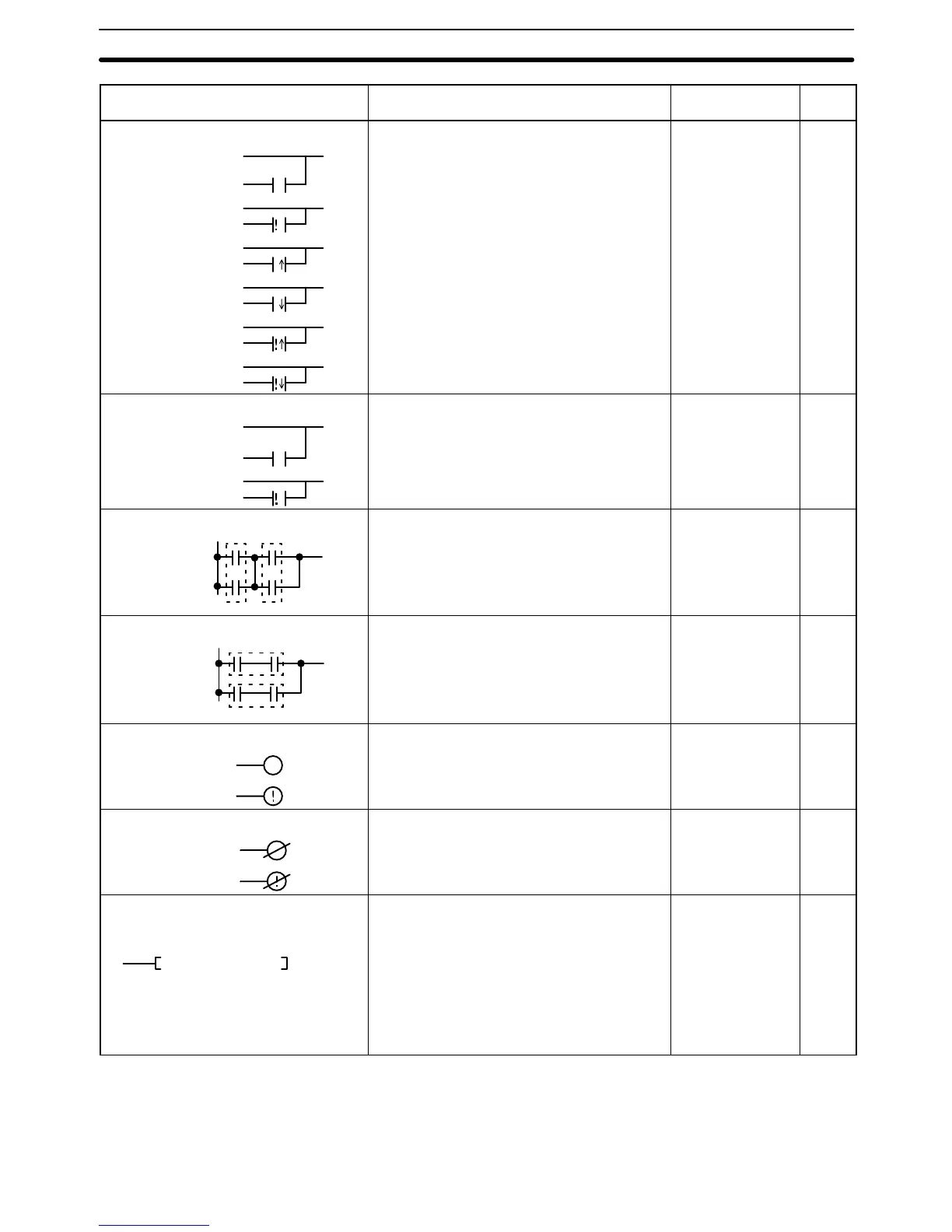

Appendix AInstruction Set
521
Name, mnemonic, variations,
and symbol
PageOperand data
areas
Function
OR
OR, !OR, jOR, iOR,
!jOR, !iOR
B
Logically ORs the status of the designated bit
with the current execution condition.
B:
CIO
G
A
T/C
ST
TN
121
OR NOT
OR NOT, !OR NOT
B
Logically ORs the inverse of the status of the
designated bit with the current execution
condition.
B:
CIO
G
A
T/C
ST
TN
121
AND LOAD
AND LD
Logically ANDs the execution conditions left
over from preceding logic blocks.
None 125
OR LOAD
OR LOAD
Logically ORs the execution conditions left
over from preceding logic blocks.
None 125
OUTPUT
OUT, !OUT
B
Turns B ON for an ON execution condition;
turns B OFF for an OFF execution condition.
B:
CIO
G
A
TR
126
OUTPUT NOT
OUT NOT, !OUT NOT
B
Turns B OFF for an ON execution condition;
turns B ON for an OFF execution condition.
B:
CIO
G
A
126
TIMER
TIM
TIM N S
Creates a decrementing ON-delay timer. S
(set value): 000.0 to 999.9 s. Each timer
number (BCD) can be used in only one timer
instruction (TIM, TIMH(015), and TTIM(120)),
unless the timers are never active
simultaneously. The timer number can be
designated as a constant or indirectly
addressed by placing the address of the
present value for the timer in an Index
Register.
N:
#
S:
CIO
G
A
T/C
#
DM
DR
IR
142
