Oracle Exadata X10M - Page 144

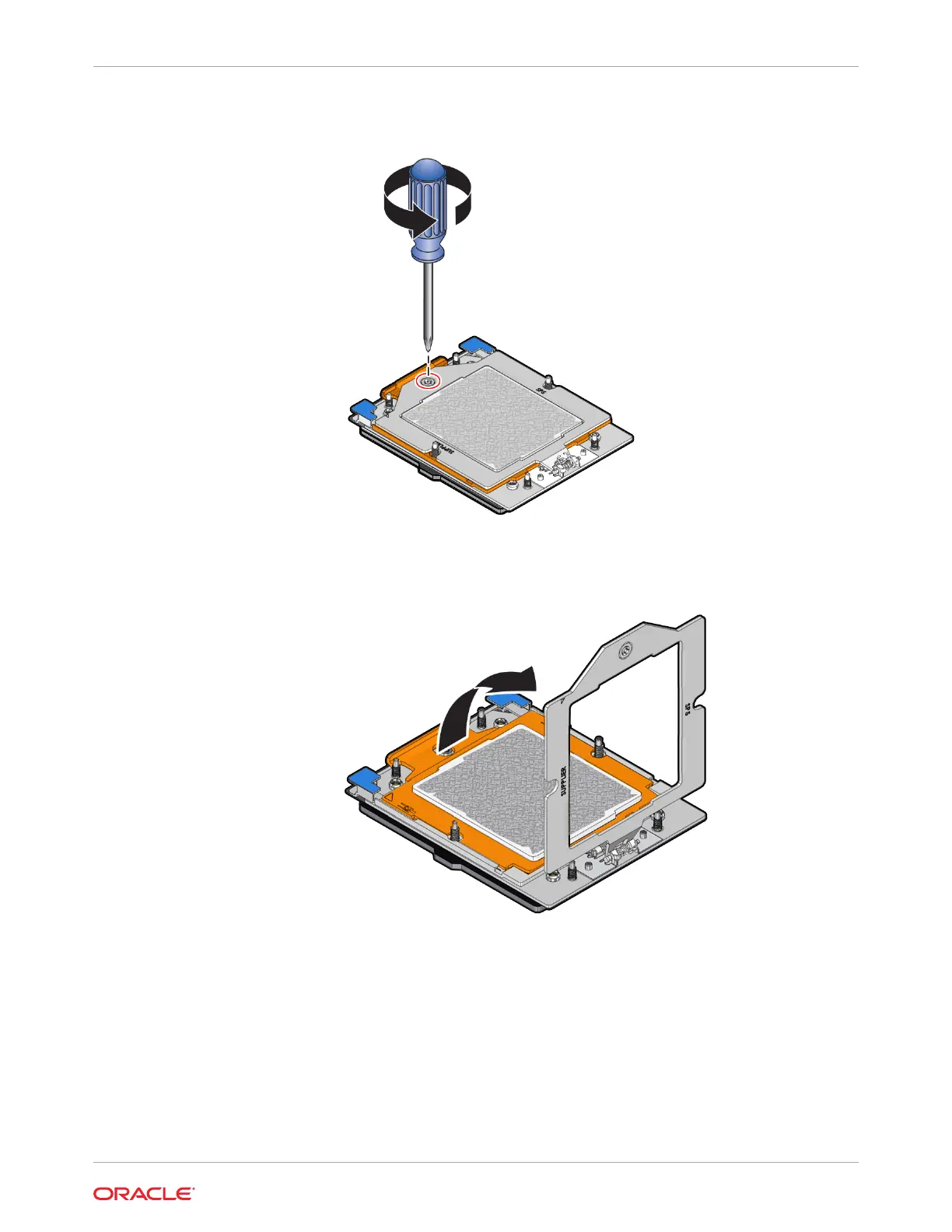

Using a Torx T20 screwdriver, loosen the captive Force Frame Retention Screw that
secures the Force Frame to the socket.
e. Lift the Force Frame to the open position.
Apply counter-pressure to the Force Frame when opening.
f. Open the Rail Frame.
Chapter 13
Identify and Remove a Processor
13-9
