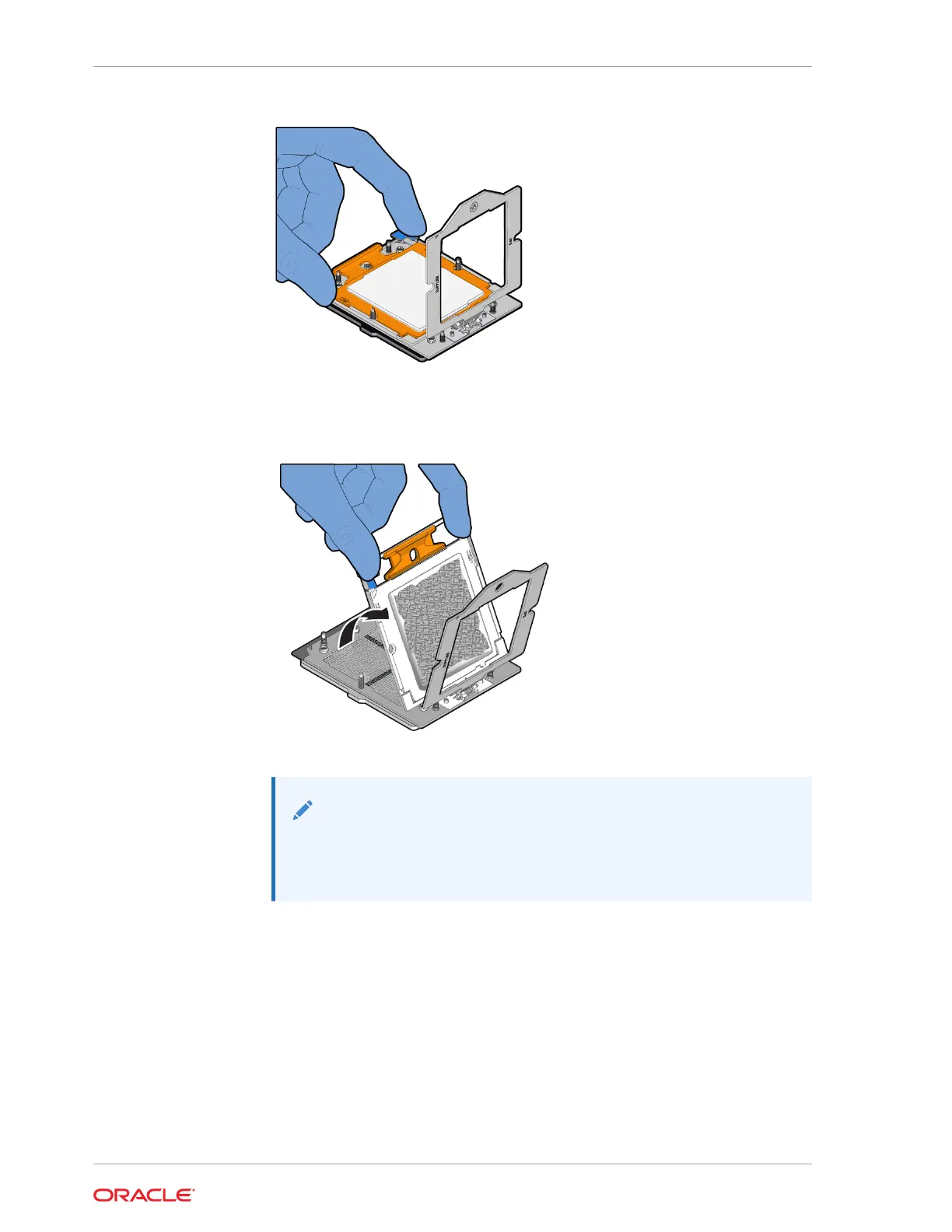

Squeeze the blue tabs to release the Rail Frame.
g. Lift the Rail Frame and slide out the carrier frame package.
Lift the Rail Frame by holding its lift tabs and rotating the Rail Frame to its near
vertical position.
Note:
The Rail Frame is spring-loaded. Hold on to the Rail Frame as it
releases from the socket frame, when rotating it to the vertical
position.
Slide the carrier frame package holding the processor out.
