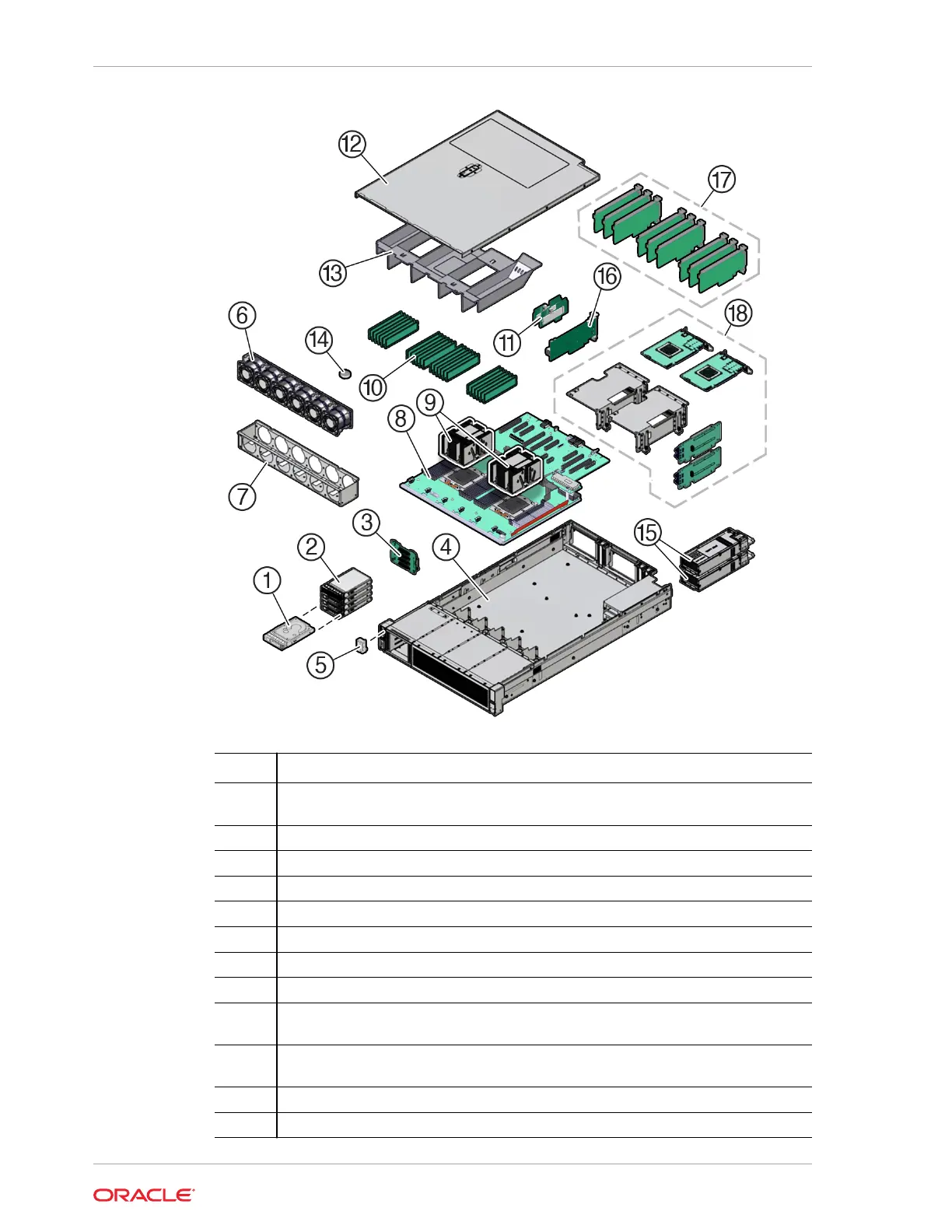

Callout Description
1 Storage drives, up to four 2.5-inch hot-pluggable PCIe-based NVMe SFF SSDs in 4-
Drive backplane
2 Storage drive bay cage
3 4-Drive backplane (DBP)
4 System chassis
5 Front LED indicator module (FIM)
6 Six fan modules (FM0-5)
7 Fan tray
8 Motherboard assembly (MB)
9 Processors (P0, P1) and heatsinks (Single-processor systems contain only a single
processor in socket P0; socket P1 contains a cap to protect processor socket pins.)
10 24 DIMMs (Twelve DIMMs are supported in single-processor systems and the
DIMMs must be installed in P0 DIMM sockets.)
11 Internal M.2 SSD memory with two internal M.2 Risers
12 Top cover
Chapter 1
Illustrated Parts Breakdown
1-10
