Callout Description
13 Air baffle
14 System RTC battery
15 Two power supplies (PS0, PS1)
16 (Optional) Oracle RoT card
17 (Optional) Nine HHHL PCIe cards
PCIe slots 1 through 4 are nonfunctional in single-processor systems.
18 (Optional) Two PCIe Risers (2 and 6) for FHFL PCIe cards
CEM compliant riser configurations
Exadata Server X10M with 12-Drive Backplane

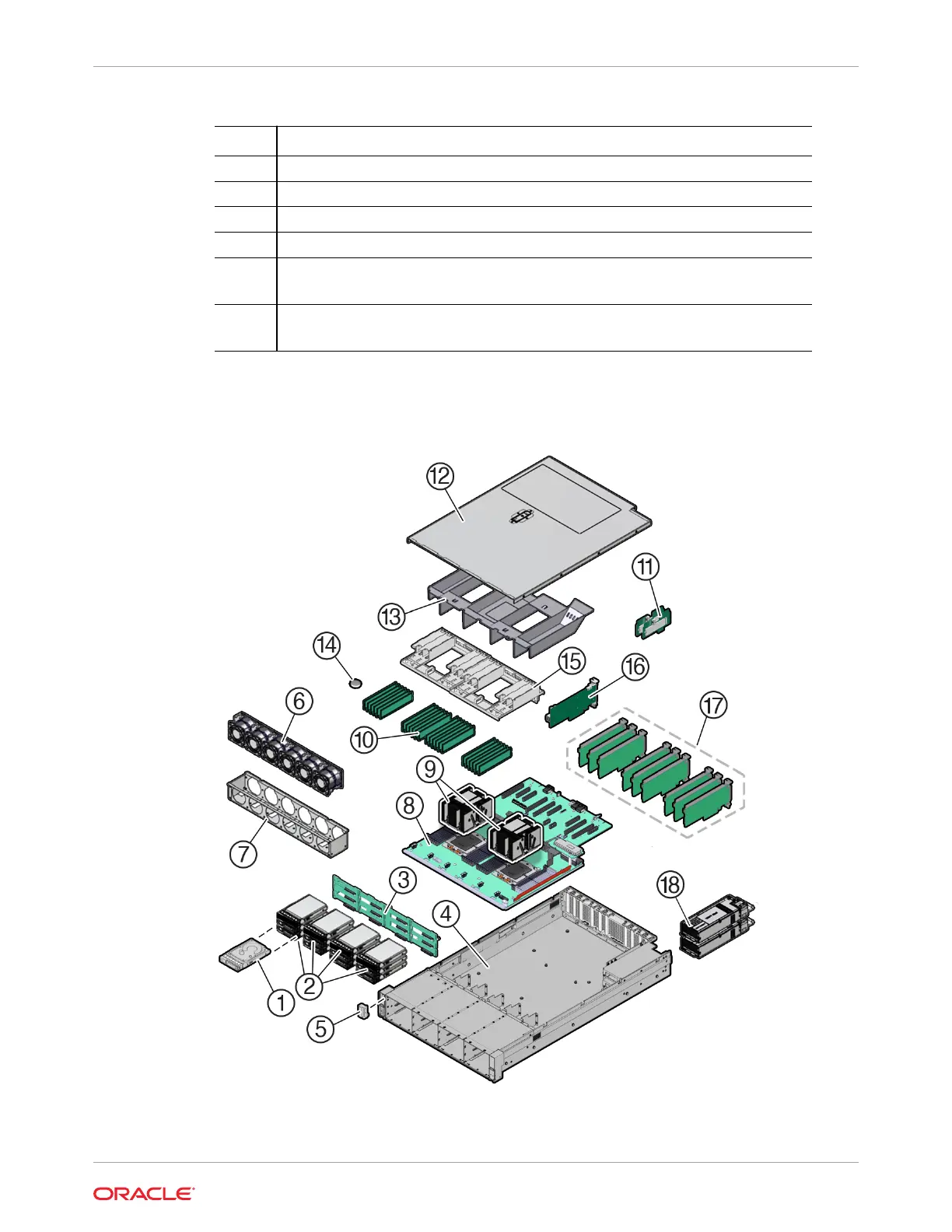

The following figure identifies Exadata Server X10M major components with 12-Drive
backplane.
