(Note 1)
(Note 2)
(Note 3)
(Note 1)

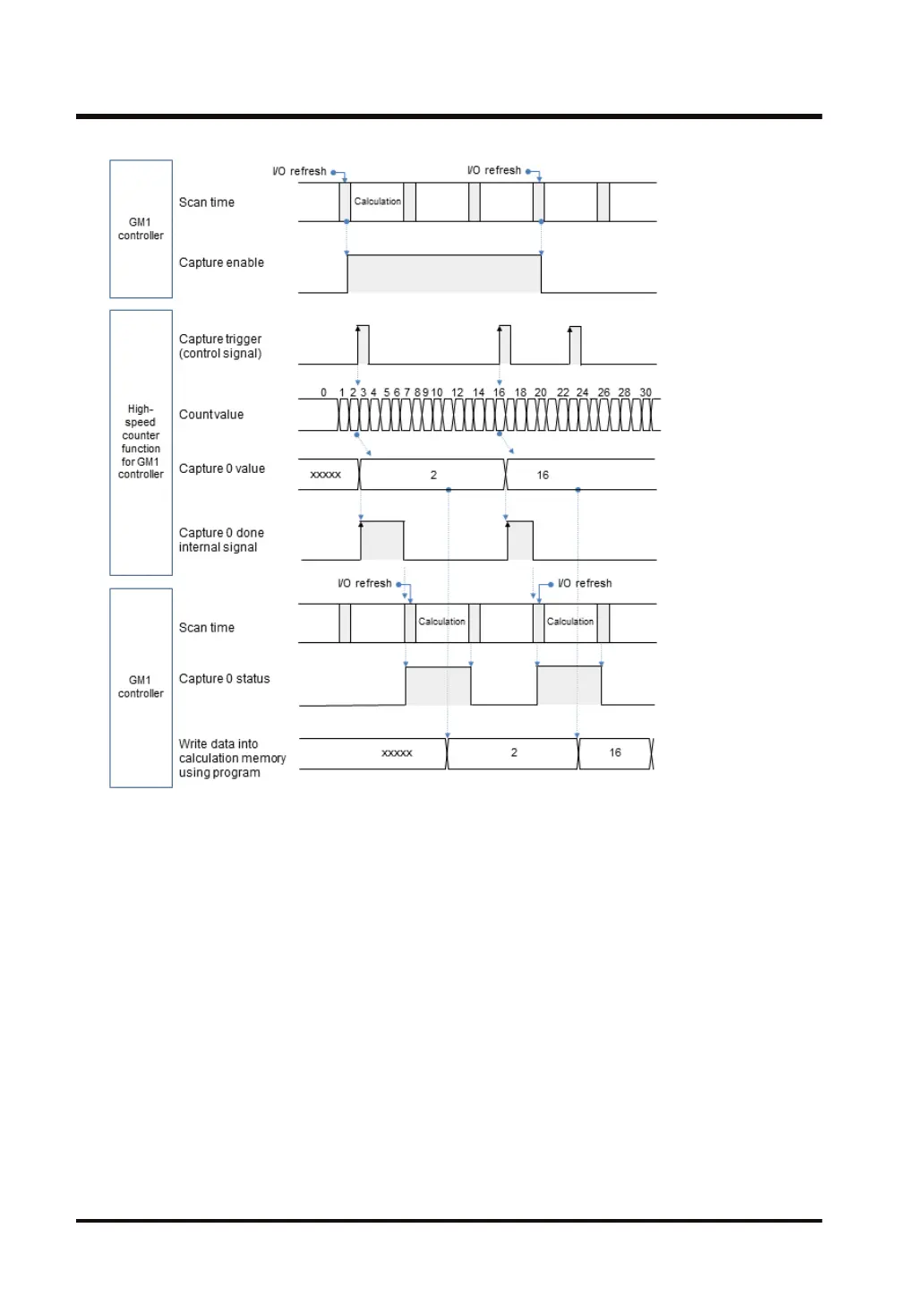

The capture enable request bit is turned ON by a user program.
(Note 2) Each time a capture flag turns ON, a capture operation is performed asynchronously with user
program execution. The capture completion internal flag used by the system is reset each time an I/O
refresh is performed.
(Note 3) Capture * status bits are reflected each time an I/O refresh is performed. Capture * status bits are
used to read capture 0 value, capture 1 value, and capture differential value as arbitrary variables
through user programs. These values are read at the time of relevant calculation processing.
12.6 High-speed Counter Function
12-58 WUME-GM1RTXOP-01
