4: Repair Internal Assemblies — Introduction
92
To bring the Rear Chassis into the upright position:
1 Loosen but not remove the screws
➊ and ➐.
Hold the Capacitor Tray to prevent the Rear Chassis from falling.
2 Straighten up the Rear Chassis to align with screw holes
➋, ➌, ➍, ➎, and ➏, see Figure 52.
If your device has the NBP Module, then make sure the NBP air tube passes under the cut-out in the
right lower corner of the Rear Chassis and not pinched, see Figure 55 on page 94.
3 Make sure no wires are pinched between the lower Fan and the Battery PCA support pad.
4 Install and tighten the M3x8 (T10) screws
➋, ➌, ➍, ➎, and ➏ to 6 inch-lb (0.7 N m).
5 Tighten the screws
➊ and ➐ to 6 inch-lb (0.7 N m).

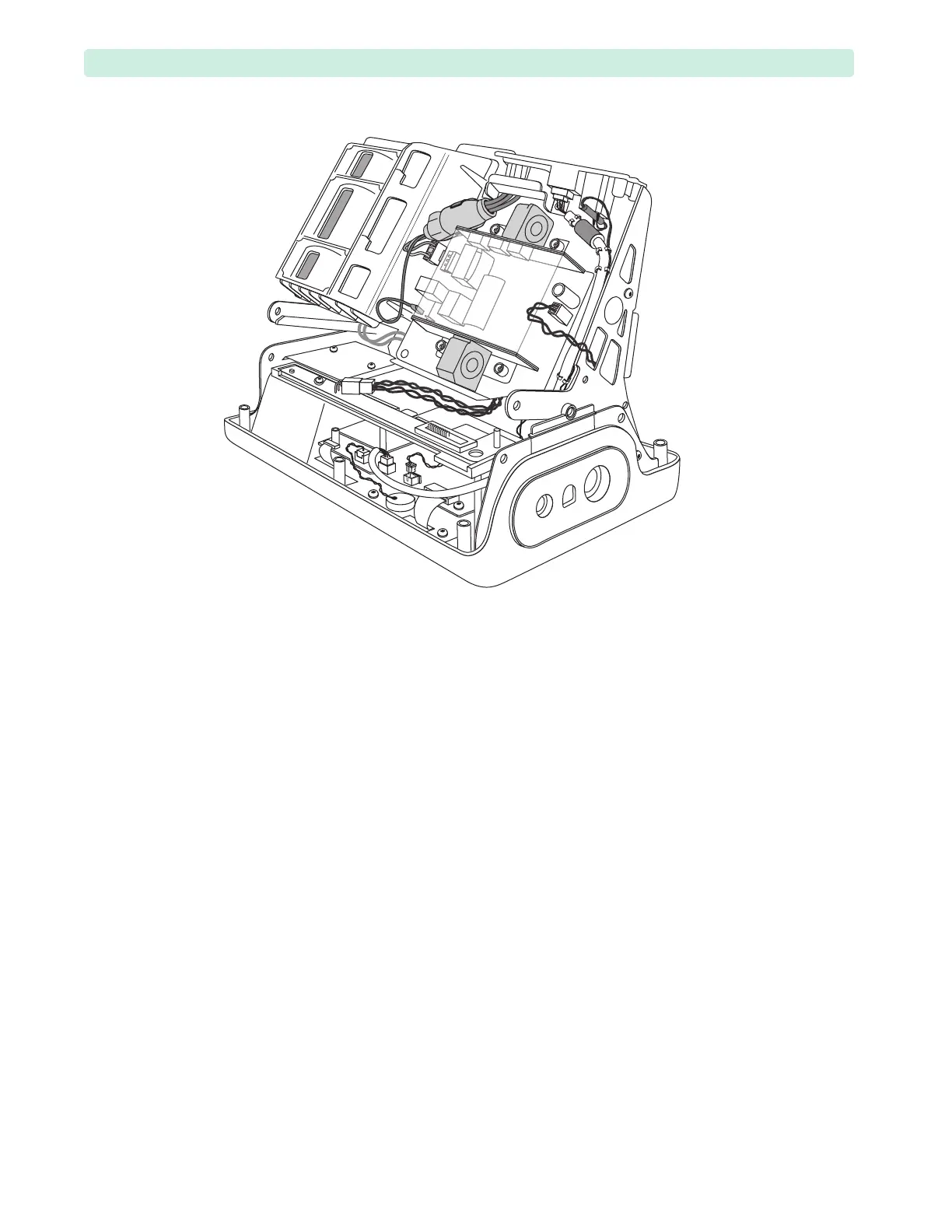

Figure 53 Rear Chassis Tilted
