4: Repair Internal Assemblies — Introduction
94
5 Pull the Shelf handle toward yourself, see Figure 56.
Support the shelf to prevent it from falling down.
6 Detach two Internal Resistor spade connectors from the Therapy PCA.
Pull straight from the Therapy PCA. Use pliers if necessary.
7 If your device has the NBP Module, then disconnect the NBP module’s 10-wire bundle from the
Processor PCA.
Press the latch behind the connector.

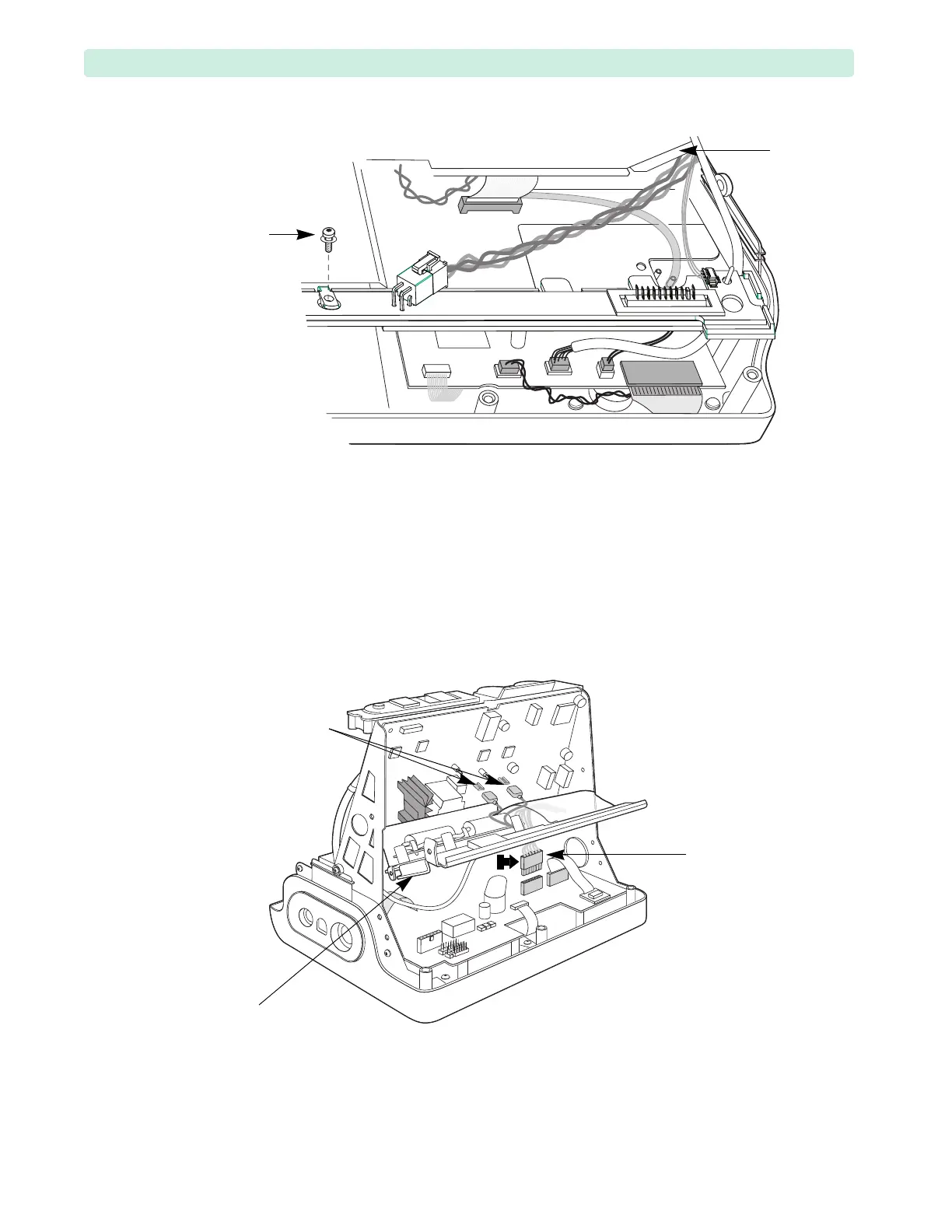

Figure 55 NBP Air Tube Route and Connection
Figure 56 Rear Chassis Shelf Connectors
Battery PCA
screw
Rear Chassis
cut-out
Internal Resistor’s
spade connectors
NBP module’s
10-wire bundle
shelf
handle
