RFC 4072S
112 / 272
PHOENIX CONTACT 108580_en_02
• To assign a process data item to a variable, click on “Select Process Data Item here” in
the “Process Data Item” column.
The role picker opens. Only the process data that you can actually assign to the respective
variable is displayed in the role picker.

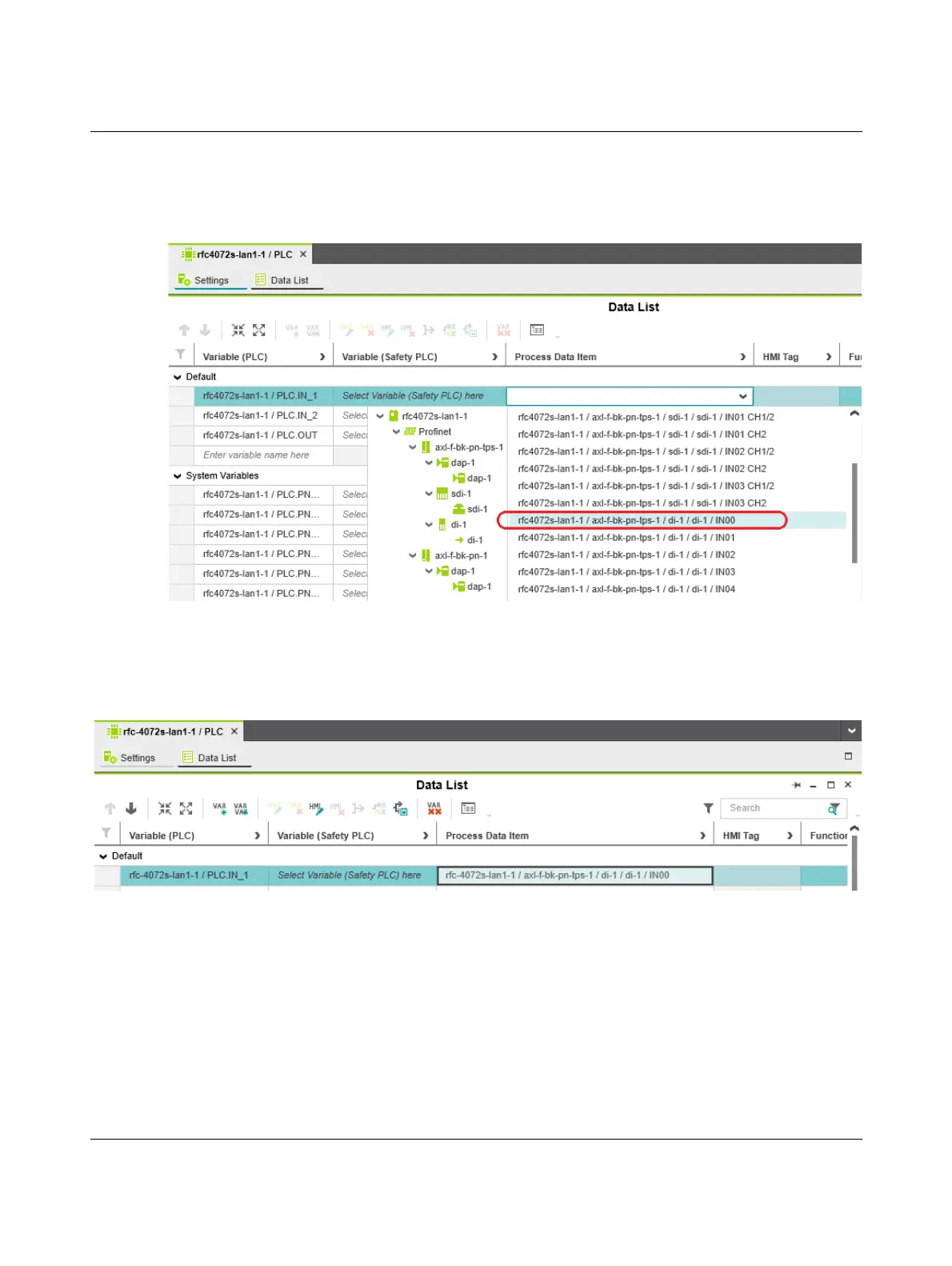

Figure 4-30 Role picker for selecting process data
• In the role picker, select the process data item that you want to assign to the respective
variable.
The process data item is assigned to the variable.
Figure 4-31 Selected process data item
• Proceed as described to add more variables.
