Phoenix Contact RFC 4072S User Manual

USB interface
108580_en_02 PHOENIX CONTACT 237 / 272
A 4 USB interface
You can connect a USB memory stick to this interface.
We recommend using the USB memory stick:
USB FLASH DRIVE (Order No. 2402809), USB memory stick, 8 Gbytes

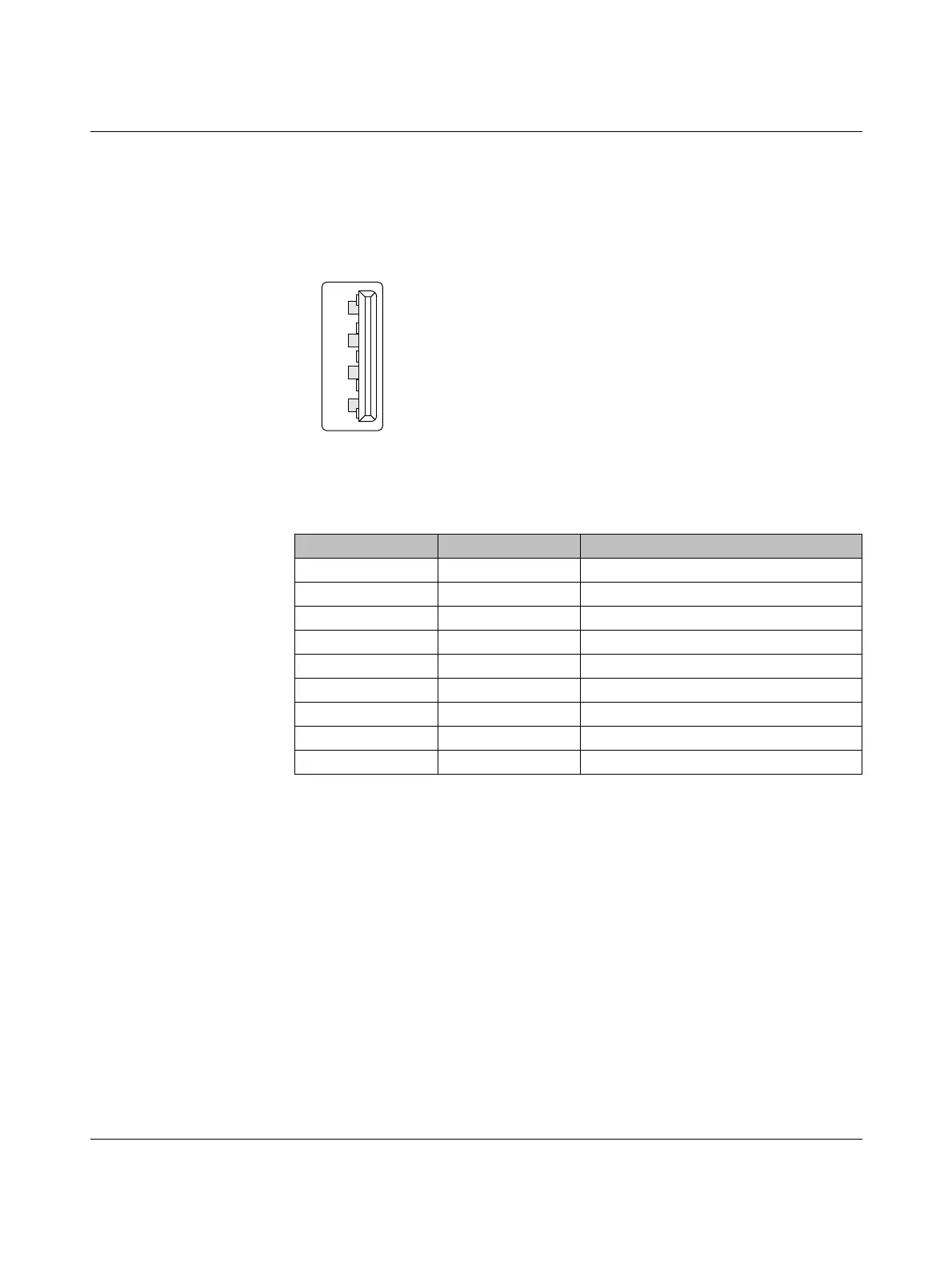

Figure A-2 Contact assignment of the USB 3.0 interface (type A)
Table A-2 Contact assignment of the USB 3.0 interface (type A)
Pin Signal Description
1VCC 5VDC
2 D- Data-
3D+ Data+
4GND Ground
5 SSRX- Super-speed receive data-
6 SSRX+ Super-speed receive data+
7GND Ground
8 SSTX- Super-speed transmit data-
9 SSTX+ Super-speed transmit data+
1
2
3
4
5
6
7
8
9
107586A022
