Description of the RFC 4072S
108580_en_02 PHOENIX CONTACT 55 / 272
Menus in Figure 2-22 on page 54:
2.9.8 “OPC UA DETAILS” menu (OPC UA server)
• Open the “OPC UA DETAILS” menu by tapping the “OPC UA” tile in the home menu.

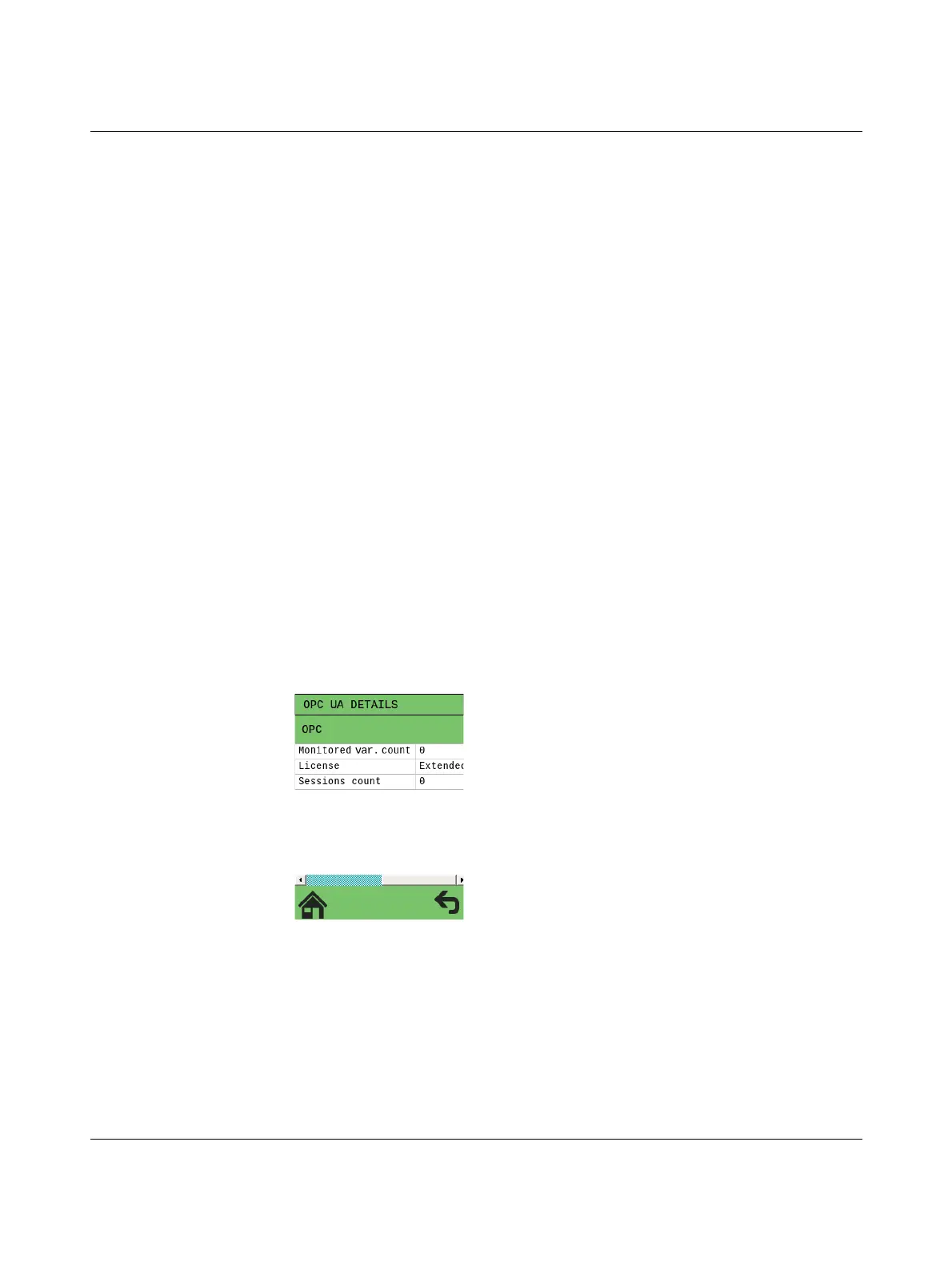

Figure 2-23 “OPC UA DETAILS” menu (OPC UA server)
The menu shows information on the OPC UA connections:
– Number of monitored variables
– Availability of a OPC UA licence
– Number of logged-in connections to OPC UA clients (sessions)
A S-PLC DIAGNOSTICS
The menu shows information on iSPNS 3000 diagnostics:
–Project name
– CRC checksum of the PLCnext Engineer project
In PLCnext Engineer, this value can be found in the “Safety Cockpit” editor
(“Safety PLC” editor group) in the “Overview” area of the engineering project
information.
– Program runtime and cycle time of the iSPNS 3000 in µs
– Contents of the iSPNS 3000 register:
–DIAG_STATUS_REG
– DIAG_PARAM_REG
– DIAG_PARAM_2_REG
– DIAG_EXT_PARAM_REG
The contents are also displayed in the corresponding PLCnext Engineer vari-
ables in the SPNSV2_TYPE structure.
B S-PLC INFORMATION
The menu shows the following information:
– Firmware and FPGA versions
– Minimum, maximum and current CPU utilization of the iSPNS 3000
– Minimum, maximum and current temperature of the iSPNS 3000
