Startup and validation
108580_en_02 PHOENIX CONTACT 135 / 272

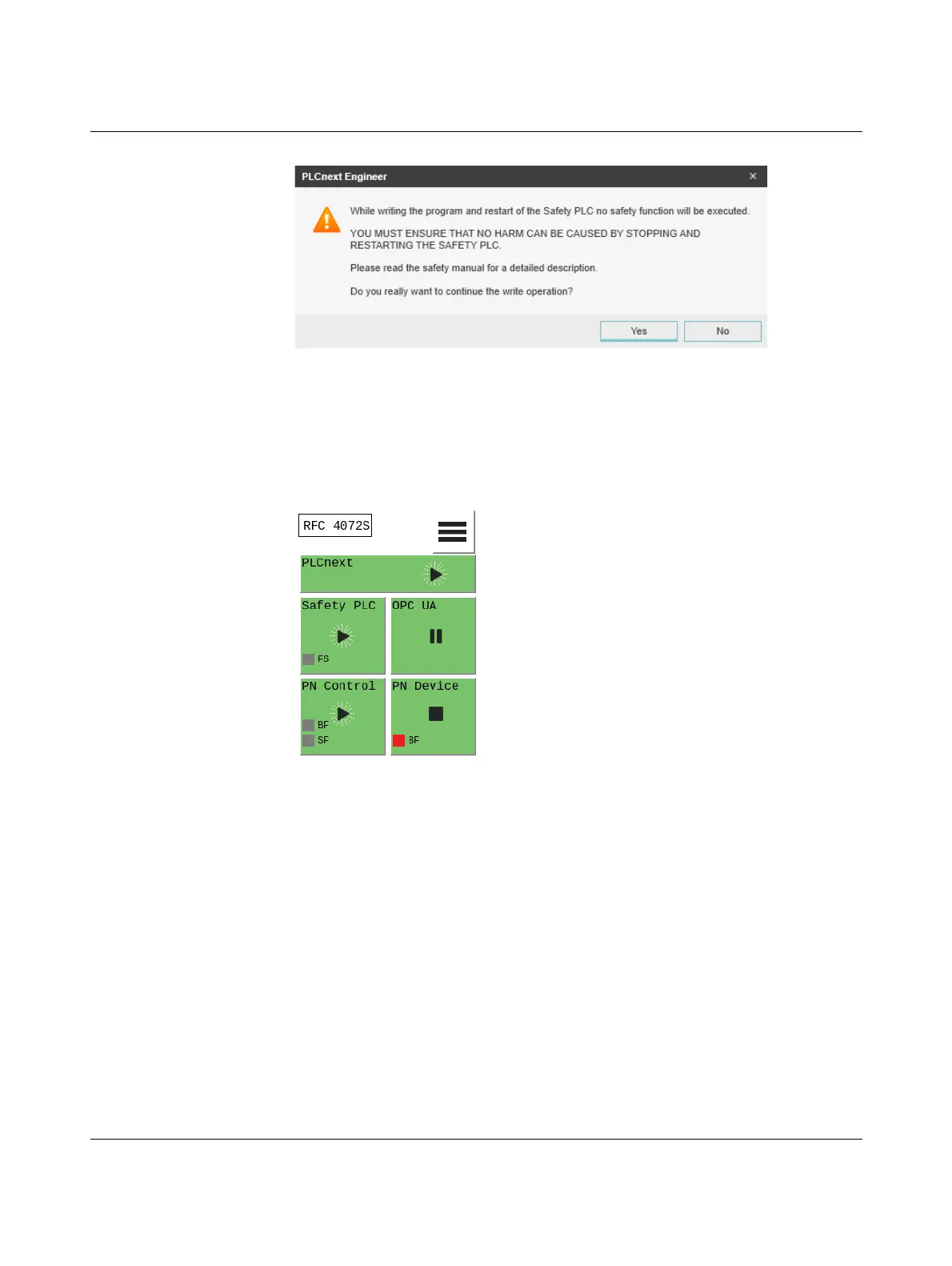

Figure 4-58 Information dialog: prevent any hazard posed by the safety-related control-
ler being started and stopped
The project is compiled and transferred to the safety-related controller. Execution of the
safety-related project is started and the safety-related controller (“Safety PLC” tile) switches
to the “RUN” state.
If startup was carried out successfully, the following appears on the RFC 4072S display:
Figure 4-59 Safety-related controller in the RUN state
