RFC 4072S
122 / 272
PHOENIX CONTACT 108580_en_02

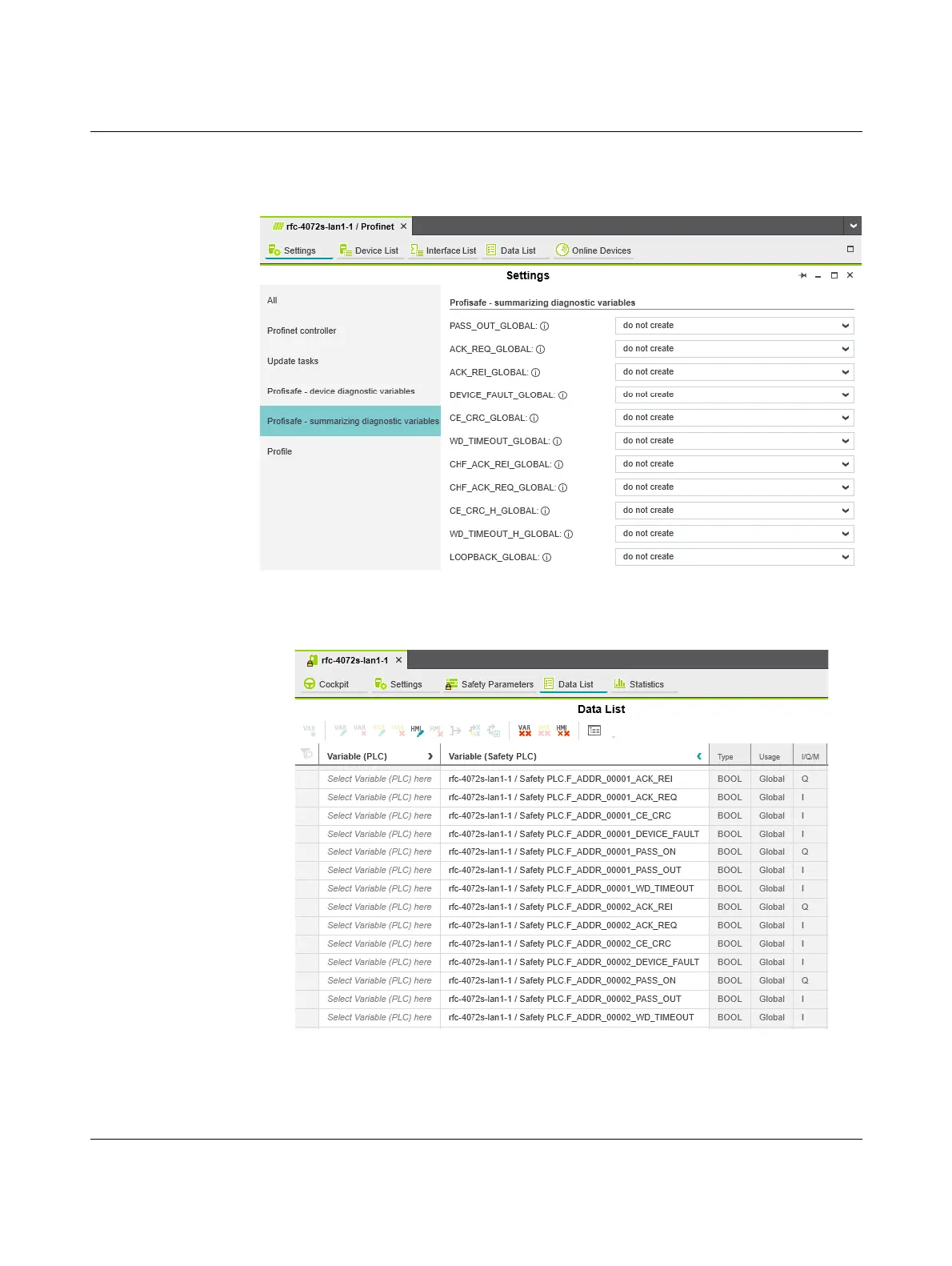

In the “Profisafe - summarizing diagnostic variables” view, you can specify which manage-
ment/diagnostic variables are to be globally generated once for all PROFIsafe F-Devices
configured in the project (see Figure 4-43).
Figure 4-44 Management/diagnostic variables for all configured F-Devices
Created variables are displayed in the “Data List” editor of the controller node:
Figure 4-45 Management/diagnostic variables of F-Devices (default)
For the two F-Devices used in the example, PLCnext Engineer creates 14 variables by
default.
